Quick Details
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Laserper
-
Weight (KG):
-
10 KG
-
Core Components:
-
laser source
-
Laser type:
-
fiber laser generator
-
Output power:
-
≥ 20W ≥ 30W
-
Laser wavelength:
-
1064 nm
-
Marking speed::
-
7000 mm / s
-
Product name:
-

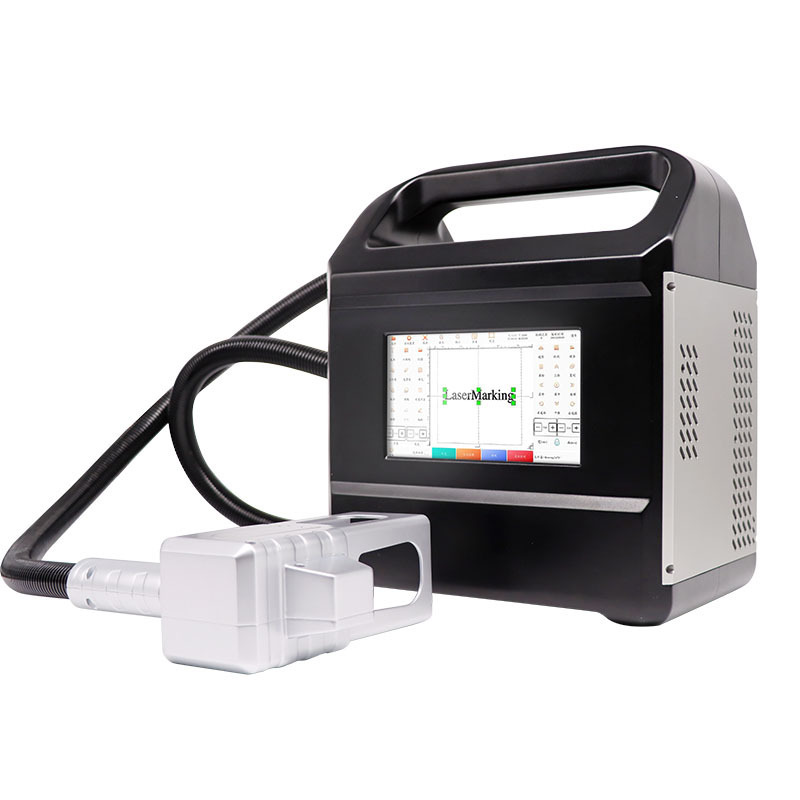

Mini Fiber Laser Marking Machine
-
Keywords:
-
3d Glass Crystal Laser Engraving Machine
Quick Details
-
Working Accuracy:
-
0.01mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Laserper
-
Weight (KG):
-
10 KG
-
Core Components:
-
laser source
-
Laser type:
-
fiber laser generator
-
Output power:
-
≥ 20W ≥ 30W
-
Laser wavelength:
-
1064 nm
-
Marking speed::
-
7000 mm / s
-
Product name:
-
Mini Fiber Laser Marking Machine
-
Keywords:
-
3d Glass Crystal Laser Engraving Machine
Product Parameters
|
Product Name
|
20W 30W 50W Portable mini fiber laser marking machine
|
|
|
|
Model
|
Power model: LM20/LM25/LM50
|
Lithium battery model: LMB20/LMB25/LMB50
|
|
|
Machine material
|
Environmentally friendly engineering plastics
|
|
|
|
Laser Type
|
Fiber Laser Generator
|
|
|
|
Frequency adjustable range
|
1-600 khz
|
|
|
|
Laser output power
|
20W/25W/30W/50W
|
|
|
|
Power consumption of the whole machine
|
≤500W
|
|
|
|
Maximum power consumption W
|
20W: 250W / 30W: 280W
|
|
|
|
Power supply
|
AC 220V/110V, 50/60Hz
|
|
|
|
Battery life
|
6-8 hours
|
|
|
|
Continuous working time with full power
|
3.5-5.5 hours
|
|
|
|
Printing type
|
QR code, barcode, Chinese, English, numbers, logos, patterns, etc.
|
|
|
|
Laser wavelength
|
1064nm
|
|
|
|
Marking range
|
50mm*50mm, 100mm*100mm (standard), 150mm*150mm
|
|
|
|
Printing Orientation
|
Unidirectional Printing
|
|
|
|
Printing speed
|
≤7000mm/s
|
|
|
|
Font
|
Simplified Chinese, Traditional Chinese, English, Korean, Russian, Japanese, Arabic numerals, etc. Special requirements can be added
|
|
|
|
Positioning method
|
red light positioning
|
|
|
|
File format
|
JPG/PNG/BMP/DXF/SVG/PLT
|
|
|
|
Applicable industries
|
Mold, rubber, metal processing, aluminum alloy doors and windows, ceramic tile bathroom, whole house custom home, stone,packaging,
|
|
|
|
Weight
|
6.2KG
|
7.8KG
|
|
|
Dimensions
|
280mm*220mm*330mm (length, width and height)
|
|
|
|
Marking depth
|
0.2-1.2mm
|
|
|
|
After-sales service
|
The whole machine is guaranteed for one year, and the power board and laser are guaranteed for two years.
|
|
|
