Quick Details
-
Ejector Force(kN):
-
34 kN
-
Theoretical Shot Volume(cm³):
-
570 cm³
-
Injection Rate (g/s):
-
202 g/s
-
Injection Weight (g):
-
513 g
-
Screw Speed (rpm):
-
1 - 155 rpm
-
Screw diameter (mm):
-
55 mm
-
Screw L/D Ratio:
-
28
-
Distance between Tie Bars:
-
660mm
-
Weight (KG):
-
7000 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
500 mm
-
Model Number:
-
JTT-1600R
-
Brand Name:
-
JINTONG
-
Power (kW):
-
22 kW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
screw diameter:
-
45cm 50cm 55cm
-
screw stroke:
-
240mm
-
Product name:
-
rotary table vertical injection molding machine JTT-1600R
-
opening force:
-
16.5T
-
rotary table diameter:
-
1400mm
-
max daylight:
-
600/660mm
-
min old height:
-
250/310mm
-
ejector force:
-
3.4T
-
Machine dimension(L*W*H):
-
2.8*2.1*3.4m
Quick Details
-
Plasticizing Capacity(g/s):
-
400
-
Mold Height(mm):
-
260 - 530 mm
-
Ejector Stroke(mm):
-
75 mm
-
Ejector Force(kN):
-
34 kN
-
Theoretical Shot Volume(cm³):
-
570 cm³
-
Injection Rate (g/s):
-
202 g/s
-
Injection Weight (g):
-
513 g
-
Screw Speed (rpm):
-
1 - 155 rpm
-
Screw diameter (mm):
-
55 mm
-
Screw L/D Ratio:
-
28
-
Distance between Tie Bars:
-
660mm
-
Weight (KG):
-
7000 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
500 mm
-
Model Number:
-
JTT-1600R
-
Brand Name:
-
JINTONG
-
Power (kW):
-
22 kW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
screw diameter:
-
45cm 50cm 55cm
-
screw stroke:
-
240mm
-
Product name:
-
rotary table vertical injection molding machine JTT-1600R
-
opening force:
-
16.5T
-
rotary table diameter:
-
1400mm
-
max daylight:
-
600/660mm
-
min old height:
-
250/310mm
-
ejector force:
-
3.4T
-
Machine dimension(L*W*H):
-
2.8*2.1*3.4m

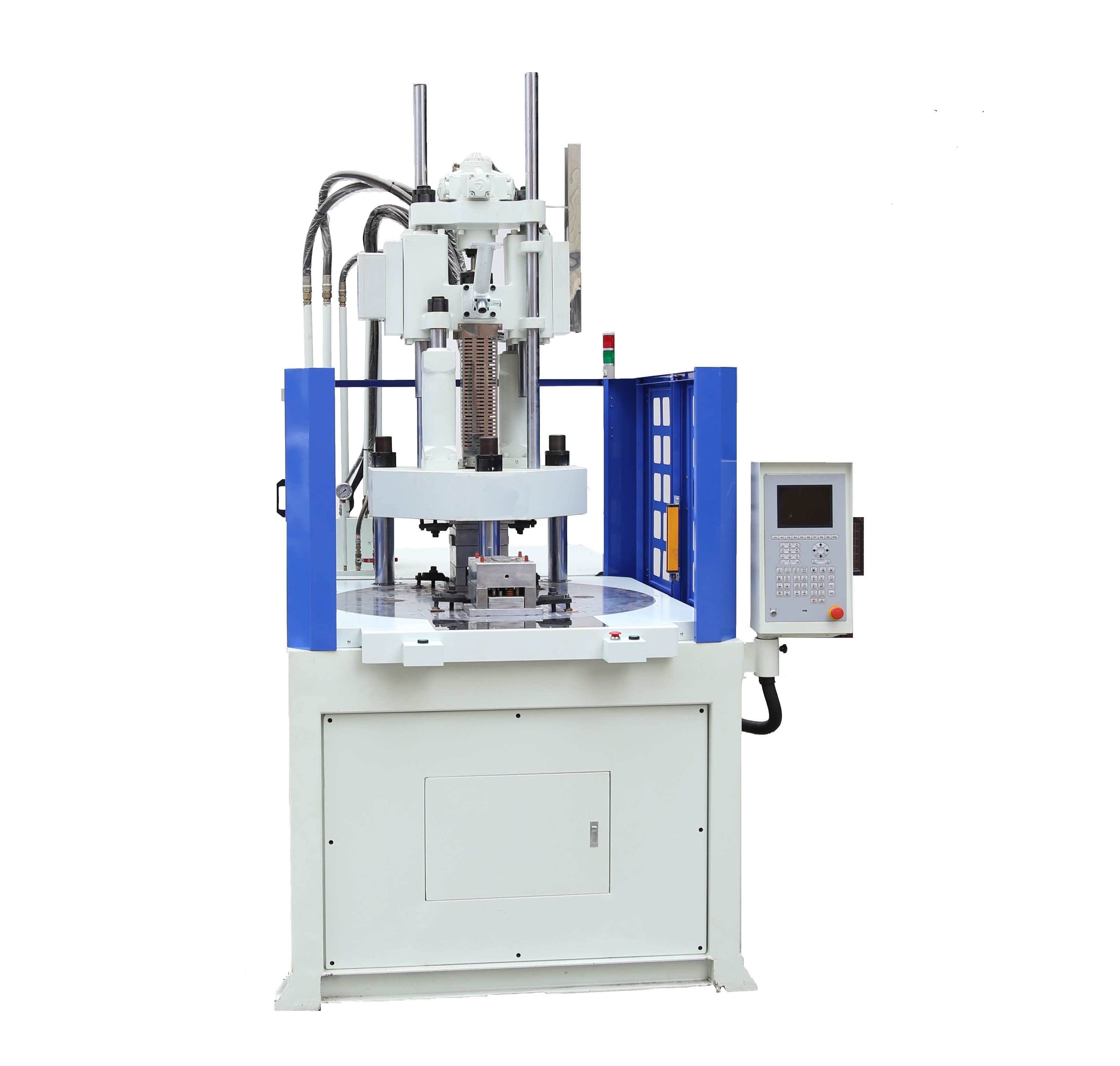

Vertical rotary injection molding machine JTT-1600R
Clamping Force: 160T
Injection Weight: 344-513g
Vertical clamping, vertical injection
Easy to set torque , speed, deceleration distance and stand number segmentation
Computer programme control rotary table direction , forward-rotating, reverse-rotating, forward and reverse alternative rotating.
Optional energy-saving motor
Main Features
1) vertical clamping, vertical injection,
2) clamping force, injection weight and shot speed can be changed according to actual demand.
3) 2 stations, 3 stations , multi-station(one up die, two or four down die), easy for operate insert parts, improve productivity
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
