The plexiglass glass cover of the discharging part can keep the negative pressure in the machine,which is much cleaner, and the purifier will have higher working efficiency.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V/380V
-
Power:
-
2x0.18kW, 2x0.18kw, 2x0.25kw
-
Weight:
-
800 KG
-
Dimension(L*W*H):
-
2190x1085x1510mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
purifier for middlings in durum wheat purifier for flour
-
Capacity for coarse:
-
800-3500kg/h
-
Capacity for fine:
-
600-2000kg/h
-
Amplitude:
-
8.5-9mm
-
Screen angle:
-
1-2°
-
Aspiration volume:
-
35-90m3/min
-
Sieve width:
-
380mm, 490mm, 600mm
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
CTGRAIN
-
Production Capacity:
-
600-1000kg/h
-
Voltage:
-
220V/380V
-
Power:
-
2x0.18kW, 2x0.18kw, 2x0.25kw
-
Weight:
-
800 KG
-
Dimension(L*W*H):
-
2190x1085x1510mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
purifier for middlings in durum wheat purifier for flour
-
Capacity for coarse:
-
800-3500kg/h
-
Capacity for fine:
-
600-2000kg/h
-
Amplitude:
-
8.5-9mm
-
Screen angle:
-
1-2°
-
Aspiration volume:
-
35-90m3/min
-
Sieve width:
-
380mm, 490mm, 600mm
Why Choose Us
Serve 21 countries and
75 flour mills
Industry leading processing
equipment and process
Strong design capability for
complete sets of equipment

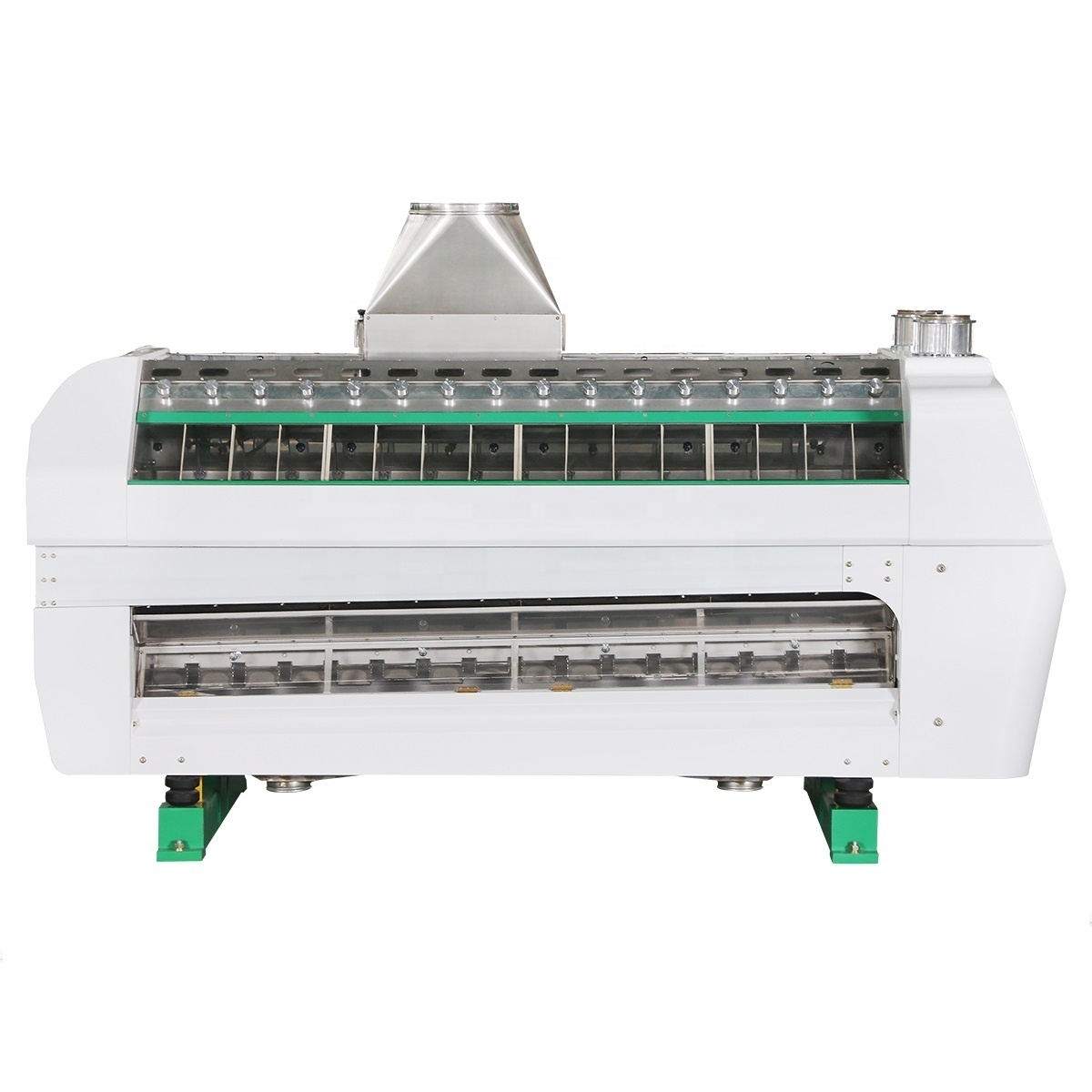

Hot sale wheat flour purifier
Product Description
The machine
for purifying
Widely applied in modern flour mills to produce flour with high quality.
Successfully used to produce semolina flour in durum flour mills.
Working principle
The purifiers through methods of vibrate, wind, sieve, with small inclination of sieve surface and the sieve covering set gradually sparse from the materials in way to materials out way, to make the material in the screening surface is flowing and thin gradually, half suspended state fluid. This makes it grade automatically according to the different bulk specific gravity, thus form different materials level with unobvious line.
The materiel is divided into three parts by purifier processing:
a. The under materiel: Majority is pure wheat heart, the front part of undersize materiel is pure and thin, the tail part of undersize materiel includes little bran. They should be delivered into heart or dregs of roller mill to process.
b. Over materiel: Majority is wheat dregs bonding bran or thin bran including albumen. They should be delivered into thin husk or tail of roller mill to process.
c. Airflow pick-up: Majority of materiel is thin bran and dust.
Features
1
)
Adopting vibration motor transmission structure, to achieve the ideal screening effect through vibration, blowing and screening. The screening rate and ash reduction rate is more competitive than any other machines.
2)
Adopting the brusher (or rubber ball cleaners) to clean the screen surface, and the cleaning effect is good.
3)
All supporting points adopt rubber spring or rubber bearing, not need lubrication to maintain. And it has the features of stable movement,
vibration reduction, vibration isolation, durability and no noise.
4)
Both the total air volume and each air chamber can be adjusted, which can effectively control the aspiration volume of each air chamber.
5) The vibrating system can be balanced by the synchronous vibration of the sieve body, the material separating device and the conveying trough.
6) The feeding system has reliable balance device, which can ensure the balance when the material enters the screening process.
7) Both the overtails and throughs have adjusting device, which can conveniently control the material flow direction according to the process requirements.
8) It adopts excellent design, and has the features of reasonable structure, effective dustproof measures,and low failure rate. And it is convenient to inspect, maintain and adjust.
|
Type
|
Capacity(kg/h)
|
|
Power
|
Amplitude
|
Frequency
|
Aspiration Volume
|
Weight
|
Shape Size
|
|
|
|
Coarse
|
Fine
|
kW
|
mm
|
Times/min
|
m3/min
|
kg
|
L×W×H
|
|
|
FQFD38x2x3
|
800~1200
|
600~1000
|
2x0.18
|
8.5~9
|
590
|
35~65
|
800
|
2190x1085x1510mm
|
|
|
FQFD49x2x3
|
1200~2600
|
800~1600
|
2x0.18
|
8.5~9
|
590
|
40~70
|
970
|
2700x1300x1700mm
|
|
|
FQFD60x2x3
|
1800~3500
|
1200~2000
|
2x0.25
|
8.5~9
|
590
|
55~90
|
1100
|
2700x1500x1700mm
|
|
The plexiglass glass cover
The air volume of each part can be adjusted accurately through the plexiglass observation window.
The size of the aspiration outlet can be adjusted according to the flour purifying effect.
Sieve frame
The sieve frame is made of aluminum alloy with light weight, which can ensure high sensitivity of the machine.
Adopting China famous motor brand: JBM or Sanyuan, and imported rubber spring.
About Us
The company focuses on technology reformation, improving the manufacturing ability and quality of machine. The company took the lead in the introduction of CNC laser cutting machine, CNC bending machine, CNC lathes and other advanced processing equipment.
Our company adopt steel plate laser cutting machine, CNC bending machine, carbon dioxide arc welding and argon arc welding, welding scale, rotary automatic welding, electrostatic spraying surface treatment, continuous improvement and innovative models. Our products are not only has good performance, but also easy for installation and maintenance with low cost. The product with advanced technology, reliable quality, and nice appearance has been appreciated by many clients.
Project installation: we have professional electrical and mechanical project installation team. The display of the equipment is neat, reasonable, beautiful, generous, and easy maintenance.
The commissioning is carried out under the guidance of experienced experts and professors on the spot. The test can be successful by one time commissioning, and can totally meet or exceed the design specifications and requirements.
Our machinery are widely used in many domestic users. And our turn-key projects and single equipment were exported to Thailand, Burma, Australia, Sri Lanka, Italy, Germany, Chile, Argentina, Brazil, Ukraine and other more than 20 countries and regions. Many clients around the world have visited our company on business.We warmly welcome clients and supplied excellent solutions with best quality equipment and technical services, and we received high recognition from them.
Certificate
The company has a strong technical force, with more than 20 engineers and technicians who are specialized in flour, electric, automatic control computer and so on.The products have passed ISO9001:2000 international quality management system, European Union CE quality certification and other international quality management system certification.It also has obtained Henan Province Science and Technology Type Sme Certification , National High-tech Enterprise Certification and 7 national invention patent certificates.The company can provide a turn-key project design, including the flowchart drawing design, electrical and automatic control design, architectural planning a.These designs all get CAD computer aided design. Detailed drawing materials, advanced tool and rapid design can supply the client the best choice.
FAQ
1.Q: Are you the manufacturer?
A :Yes, We are a professional flour milling machine manufacturers.
2.Q :Will you help to install the machines?
A :Yes, our engineers can indicate installation,test running, and training local operators. Engineers available to service machinery overseas after-sales Service
3.Q : Do you accept small order?
A : Yes,We accept small order , the MOQ is 1.
4.Q: How do I make payment for my order?
A: You make payment by taking the proforma invoice and our bank details,you can use T/T(bank transfer) and L/C to finish the payment.
5.Q: What's the warranty time?
A: Our warranty time is 12 months, so you can trust us and the quality of our machine.
