Quick Details
-
Place of Origin:
-
Jilin, China
-
Brand Name:
-
SUNDAY
-
Model Number:
-
SS-99
-
Substrate Material:
-
optical glass
-
Diameter:
-
2mm to 500mm
-
Diameter Tolerance:
-
+0.00/-0.05mm or customer design
-
Surface Quality:
-
80-50,60-40,40-20,20-10,10-5
-
Surface Flatness:
-
1/4lambda or customer design
-
Focal length tolerance:
-
+/-1%
-
Clear Aperture:
-
>90% of Diameter
-
Chamfer:
-
0.05-0.5mmx45degree
-
Centration:
-
<3 arc min
-
Coating:
-
AR,Mgf2 are on request
Quick Details
-
Usage:
-
Optical
-
Structure:
-
Double Convex
-
Shape:
-
cylindrical
-
Place of Origin:
-
Jilin, China
-
Brand Name:
-
SUNDAY
-
Model Number:
-
SS-99
-
Substrate Material:
-
optical glass
-
Diameter:
-
2mm to 500mm
-
Diameter Tolerance:
-
+0.00/-0.05mm or customer design
-
Surface Quality:
-
80-50,60-40,40-20,20-10,10-5
-
Surface Flatness:
-
1/4lambda or customer design
-
Focal length tolerance:
-
+/-1%
-
Clear Aperture:
-
>90% of Diameter
-
Chamfer:
-
0.05-0.5mmx45degree
-
Centration:
-
<3 arc min
-
Coating:
-
AR,Mgf2 are on request
Product Description

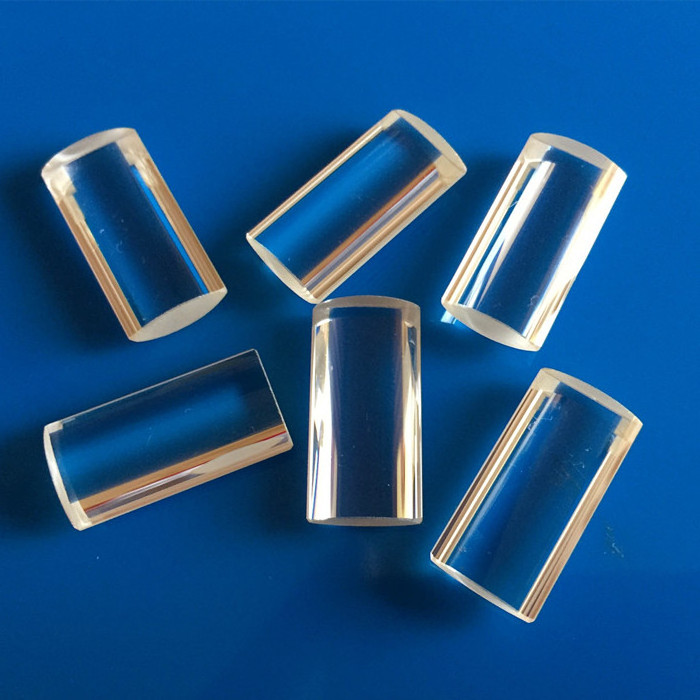

Double convex cylindrical lens
Double convex cylindrical lenses as Biconvex lenses are used as magnifiers, objectives, condensing systems,Sunday also offer coatings on the double convex cylindrical lenses.
|
Substrate Material
|
optical glass,quartz,pyrex,sapphire,znse,caf2,ge,si,etc
|
|
Diameters Available
|
2mm to 500mm
|
|
Diameter Tolerance
|
+0.00/-0.05mm or customer design
|
|
Surface Quality
|
80-50,60-40,40-20,20-10,10-5
|
|
Surface Flatness
|
1/4lambda or customer design
|
|
Focal length tolerance
|
+/-1%
|
|
Clear Aperture
|
>90% of Diameter
|
|
Chamfer
|
0.05-0.5mmx45degree
|
|
Centration
|
<3 arc min
|
|
Coating
|
AR,Mgf2 are on request
|
