Quick Details
-
Model Number:
-
O Ring
-
Product name:
-
O Ring
-
Material Type:
-
NBR/FKM/EPDM/Silicone/HNBR/FFKM
-
Color:
-
Any color is ok
-
Hardness:
-
40~90 Shore
-
Feature:
-
Oil & Chemical & High Temperature Resistance
-
Temperature:
-
-40 ~ +320℃
-
Certificate:
-
ISO9001/TS16949/RoHS
-
Sample:
-
Freely
-
Quality:
-
Superior
Quick Details
-
Size:
-
ID*Thickness, ID*Thickness
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
NUOANKE
-
Model Number:
-
O Ring
-
Product name:
-
O Ring
-
Material Type:
-
NBR/FKM/EPDM/Silicone/HNBR/FFKM
-
Color:
-
Any color is ok
-
Hardness:
-
40~90 Shore
-
Feature:
-
Oil & Chemical & High Temperature Resistance
-
Temperature:
-
-40 ~ +320℃
-
Certificate:
-
ISO9001/TS16949/RoHS
-
Sample:
-
Freely
-
Quality:
-
Superior

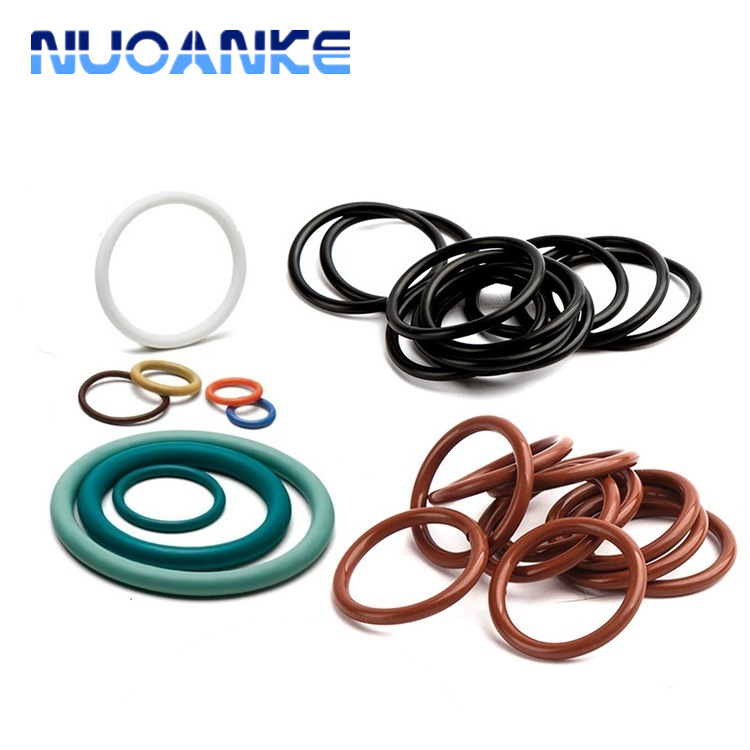

Custom NBR FKM EPDM Silicon CR Buna PTFE Oring High Temperature Silicone O Ring
| Product Information | ||||
| Material |
Hardness (Shore A) |
Temperature | Size | |
| Standard Size | Available | |||
|
NBR(Buna, Nitrile) FKM(VlTON, FPM) EPDM Silicone(VMQ) HNBR FFKM(FFKM, Kalrez) |
60~90 70~90 60~90 40~70 60~90 70~90 |
-40℃-110℃ -20℃-220℃ -45℃-150℃ -55℃-204℃ -48℃-180℃ -18℃-326℃ |
AS-568(USA) JIS-B2401(Japan) DIN-3771(Germany) BS-1516(UK) ISO3601(International) R(France) |
ID≤2000mm
CS≤40mm |
| Resistance | Color | Certificate | Application | |
|
Hydraulic Fluid Engine Oil Chemical Ozone & UV Steam & Hot Water Low Temperature High Temperature |
Black Brown Red Green White Blue Clear Customized |
ISO9001 1SO14001 TS16949 SGS. RoHS REACH |
Auto Industry Construction Machinery Machine Tool Equipment Food Health Water Treatment Chemical Processing Hydraulic Pneumatic Industrial Manufacturing |
|
| STANDARD & NON-STANDARD SIZE IN STOCK | ||||||
| Standard | Source | Section Cross Of O-Ring(mm) | ||||
| AS568 | U.S.A | 1.78 | 2.62 | 3.53 | 5.33 | 6.99 |
| BS1516 | U.K | |||||
| R | France | 1.90 | 2.70 | 3.60 | 5.34 | 6.96 |
| JIS B 2401 | Japan | 1.90 | 2.40 | 3.10 | 3.50 | 5.70 |
| ISO3601/1 | International | 1.80 | 2.65 | 3.55 | 5.30 | 7.00 |
| DIN3771/1 | Germany | |||||
| GB3452.1 | China | |||||
| Metric | NUOANKE | 0.50 | 1.00 | 1.50 | 2.00 | 2.50 |
| 3.00 | 3.50 | 4.00 | 4.50 | 5.00 | ||
| 5.50 | 6.00 | 6.50 | 7.00 | 8.00 | ||
| 8.40 | 8.60 | 10.00 | 12.00 | 15.00 | ||
| ID | Min 0.3mm to Max 1500mm are all available, if the ID exceeds 1500mm, communication is required. | |||||
| Note | In addition to these standard sizes we have thousands of non-standard sizes for you to choose, if you need the complete catalouge, please contact us. | |||||
