Quick Details
-
Brand Name:
-
ROTEX MASTER
-
Voltage:
-
380V, 380V/400V/415V/440V
-
Dimension(L*W*H):
-
different
-
Weight (KG):
-
5800 KG
-
Weight:
-
5T
-
Name:
-
Ring Die Pellet Machine
-
Capacity:
-
1500-2000kg/h
-
Pellet diameter:
-
6-10mm
-
Bearing:
-
Harbin Bearing
-
Color:
-
Clients' Requirement
-
Usage:
-
Wood Pellet Making Machine
-
Advantage:
-
Easy Operation
-
Raw material:
-
Sawdust\straw\rice Husk\wood Waste
Quick Details
-
Pellet Diameter (mm):
-
6 - 10
-
Output (kg/h):
-
1500 - 2000 kg/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ROTEX MASTER
-
Voltage:
-
380V, 380V/400V/415V/440V
-
Dimension(L*W*H):
-
different
-
Weight (KG):
-
5800 KG
-
Weight:
-
5T
-
Name:
-
Ring Die Pellet Machine
-
Capacity:
-
1500-2000kg/h
-
Pellet diameter:
-
6-10mm
-
Bearing:
-
Harbin Bearing
-
Color:
-
Clients' Requirement
-
Usage:
-
Wood Pellet Making Machine
-
Advantage:
-
Easy Operation
-
Raw material:
-
Sawdust\straw\rice Husk\wood Waste

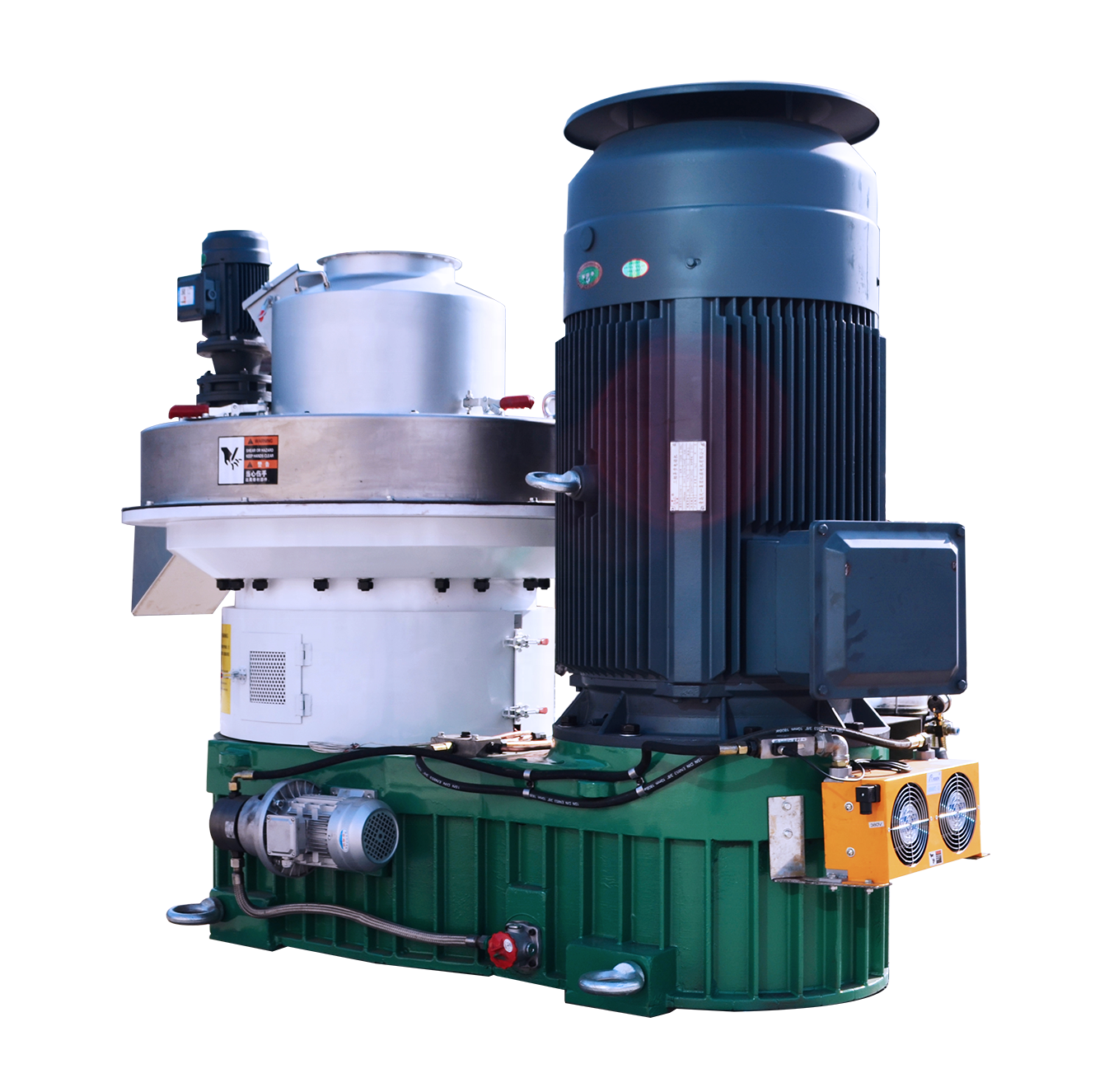

New design centrifugal ring die wood pellet machine is the new design wood pellet maker to make biomass fuel pellets. biomass pellet machine is suitable for all kinds of hard and soft wood, rice husk, peanut shells, agricultural straw etc..
1.High automation, No need to take care.
In the process of operation, the control panel, tablet computer and mobile APP can be used to monitor the temperature of critical parts and the electric current of the equipment.
2.Casting material of gearbox with high stability.
Gearbox shell of wood pellet machine adopts casting. Weight of shell is 2.5t. Castings have advantages of good rigidity, good heat dissipation, Low heat distortion and high stability.
3.Siemens Brand Motor.
Motor of biomass pellet machine use Siemens Brand. This kind of motor is frequency and has thick copper coil, it won’t be burned due to instantaneous current.
4.Parallel vertical installation reduce energy consumption loss.
The motor and main shaft of wood pellet machine supplier are parallel vertical installed , which can reduce energy consumption loss in the process of transmission, more output power, higher transformation of energy efficiency.
5.Digital display oil pressure gauge and digital display oil temperature gauge.
|
Model |
Power(KW) |
Capacity(T/H) |
Pellet Size(MM) |
Dimension(MM) |
Weight(T) |
|
YGKJ560-B |
90/110 |
1.3-1.5 |
6-12 |
2200*1300*1600 |
5.8 |
|
YGKJ700 |
132/160 |
2-3 |
6-12 |
2400*1400*1800 |
7.8 |
|
YGKJ880 |
220 |
3-4 |
6-12 |
2800*1500*2300 |
12 |
