Quick Details
-
Optical Resolution:
-
4mil(Code39)
-
Scan Speed:
-
3.8meters /second
-
Brand Name:
-
ATEK
-
Place of Origin:
-
Guangdong, China
-
Resolution:
-
640*480
-
Scan Range:
-
0mm-180mm (EAN 13 13mil, PCS90%)
-
Scan Mode:
-
Continuous scanning
-
Print Contrast:
-
20%
-
Voltage:
-
DC5V±5%
-
Recognition angle range:
-
Turn angle ±360°, elevation angle ±60°, declination angle ±70°
-
System compatibility:
-
Linux,Android,Windows XP,7,8,10,MAC
-
Dimension:
-
124mm*83.6mm*158mm
-
Weight:
-
390g
-
Cable length:
-
180CM(±3CM)
Quick Details
-
Type:
-
Barcode Scanner
-
Scan Element Type:
-
CMOS
-
Max Paper Size:
-
A4
-
Optical Resolution:
-
4mil(Code39)
-
Scan Speed:
-
3.8meters /second
-
Brand Name:
-
ATEK
-
Place of Origin:
-
Guangdong, China
-
Resolution:
-
640*480
-
Scan Range:
-
0mm-180mm (EAN 13 13mil, PCS90%)
-
Scan Mode:
-
Continuous scanning
-
Print Contrast:
-
20%
-
Voltage:
-
DC5V±5%
-
Recognition angle range:
-
Turn angle ±360°, elevation angle ±60°, declination angle ±70°
-
System compatibility:
-
Linux,Android,Windows XP,7,8,10,MAC
-
Dimension:
-
124mm*83.6mm*158mm
-
Weight:
-
390g
-
Cable length:
-
180CM(±3CM)
Specification
|
Performance Parameters
|
|
|
|
Resolution
|
640*480
|
|
|
Supported Symbologies
|
1D:EAN-8,EAN-13,EAN-13 2 add-on,EAN-13 5 add-on,ISSN,ISBN,UPC-A,UPC-E,Code11,Code 32,Code 39,Code 93,Code 128,Codabar,Industrial 2
of 5,Interleaved 2 of 5,Matrix 2 of 5,ISBT-128,GS1-128,GS1 DataBar(RSS14),GS1 DataBar Limited,GS1 DataBar Expanded. 2D:PDF417,MicroPDF417,QR-code,MicroQR, Data Matrix,QR,Aztec. |
|
|
Scan Range
|
0mm-180mm (EAN 13 13mil, PCS90%)
|
|
|
System compatibility
|
Linux,Android,Windows XP,7,8,10,MAC
|
|
|
Barcode Type
|
1d or 2d barcodes for Paper or Film;1d and 2d for screen ,like Phone tablets
|
|
|
Scan Mode
|
Automatic continuous reading mode
|
|
|
Support Keyboard
|
Support Multi-Language
|
|
|
Barcode output editing
|
Support for adding suffixes
|
|
|
Print contrast
|
20%
|
|
|
Recognition angle range
|
Turn angle ±360°, elevation angle ±60°, declination angle ±70°
|
|
|
Mutual Move
|
Led: Red and blue bi-color indicator: red light reading code, blue light power indicator.
Beeper: Startup prompts, reading tips. Keys (touch keys): Key Switch and 2d barcodes. |
|
|
Interfaces
|
USB(Drive - Free), USB-COM, RS232
|
|
|
Physical Parameters
|
|
|
|
Dimensions
|
124mm*83.6mm*158mm
|
|
|
Weight
|
442g
|
|
|
Material
|
ABS+PC
|
|
|
Cable Length
|
180CM(±3CM)
|
|
|
Environmental Parameters
|
|
|
|
Operating Temperature
|
-20℃~55℃
|
|
|
Storage Temperature
|
-20℃~60℃
|
|
|
Relative Humidity
|
5%~95% RH(non-condensing/non-freezing)
|
|
|
Shock Resistance:
|
Withstands three times1 . 5 meters drops to concrete
|
|
|
Waterproof and Dustproof
|
IP54 standard
|
|
|
Ambient Ligh
|
0-70000LUX
|
|
Features
1.Automatic sleep and wake up mode which save power and extend life time
2.Multiple interface and easy to switch by change a cable
3.Powerful decoding performance and reliability
4.Fast scan speed reach 150 times per second in 1d barcodes and 60 images per second in 2d barcodes
5.Excellent motion tolerance
6.Read all 1d & 2d barcodes from paper printed as well as mobile devices displays.
2.Multiple interface and easy to switch by change a cable
3.Powerful decoding performance and reliability
4.Fast scan speed reach 150 times per second in 1d barcodes and 60 images per second in 2d barcodes
5.Excellent motion tolerance
6.Read all 1d & 2d barcodes from paper printed as well as mobile devices displays.
Product Description

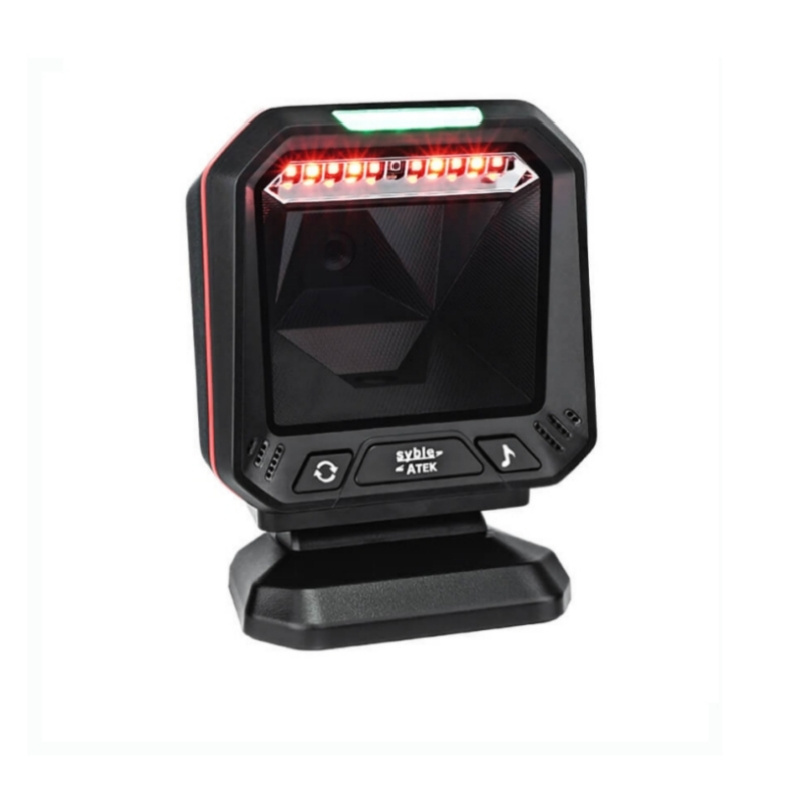

Model number: AK-9608
2D Imager Barcode Scanner ,which we adopt latest and advanced digital imaging technology to provide intuitive and blazing decode
of 1d and 2d barcodes without sacrificing scanning quality and performance ,it can read damaged ,poor printed ,dirty and distorted
barcodes as well as barcodes from mobile devices display.
of 1d and 2d barcodes without sacrificing scanning quality and performance ,it can read damaged ,poor printed ,dirty and distorted
barcodes as well as barcodes from mobile devices display.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
* Fast Shipping from Guangzhou Syble barcode scanners Factory
* Item shipped in 3-10 working days after payment is received depends on the quantity of the order.
* Item shipped by UPS,FEDEX,DHL,TNT and others,depending on size and weight of total order
* Deliver time: 24 hours from stock order,production order within 3-5 days.
* Tracking number will be sent to you as soon as when shipped the goods
* Item shipped in 3-10 working days after payment is received depends on the quantity of the order.
* Item shipped by UPS,FEDEX,DHL,TNT and others,depending on size and weight of total order
* Deliver time: 24 hours from stock order,production order within 3-5 days.
* Tracking number will be sent to you as soon as when shipped the goods
