Quick Details
-
Brand Name:
-
Ipandee
-
Model Number:
-
Galaxy series
-
Work Time (h):
-
24H
-
Max PV Power:
-
13000W, 26000W, 41600W
-
Max PV Voltage:
-
430VDC, 660VDC, 850VDC, 430VDC, 660VDC, 850VDC
-
Certificate:
-
CE, FCC,ROHS
-
Warranty:
-
2 year
-
Product name:
-
50-100A 96V 192V 216V 240V 384V Charge Controller Solar Mppt 100 Amps
-
Color:
-
White
-
Charge mode:
-
MPPT Maximum Power Point Tracking
-
Function:
-
Solar Charging
-
Charge way:
-
Charge Under Sunshine
-
MPPT efficiency:
-
≥99.5%
-
Battery type:
-
Lead Acid/ Lithium battery
-
Display:
-
Working status indicator or MH-M80 meter
-
Protection:
-
Input and output overvoltage protection etc
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Collector Controller, Solar Working Station, Lighting Controller, Voltage Controller, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ipandee
-
Model Number:
-
Galaxy series
-
Work Time (h):
-
24H
-
Max PV Power:
-
13000W, 26000W, 41600W
-
Max PV Voltage:
-
430VDC, 660VDC, 850VDC, 430VDC, 660VDC, 850VDC
-
Certificate:
-
CE, FCC,ROHS
-
Warranty:
-
2 year
-
Product name:
-
50-100A 96V 192V 216V 240V 384V Charge Controller Solar Mppt 100 Amps
-
Color:
-
White
-
Charge mode:
-
MPPT Maximum Power Point Tracking
-
Function:
-
Solar Charging
-
Charge way:
-
Charge Under Sunshine
-
MPPT efficiency:
-
≥99.5%
-
Battery type:
-
Lead Acid/ Lithium battery
-
Display:
-
Working status indicator or MH-M80 meter
-
Protection:
-
Input and output overvoltage protection etc
Products Description
|

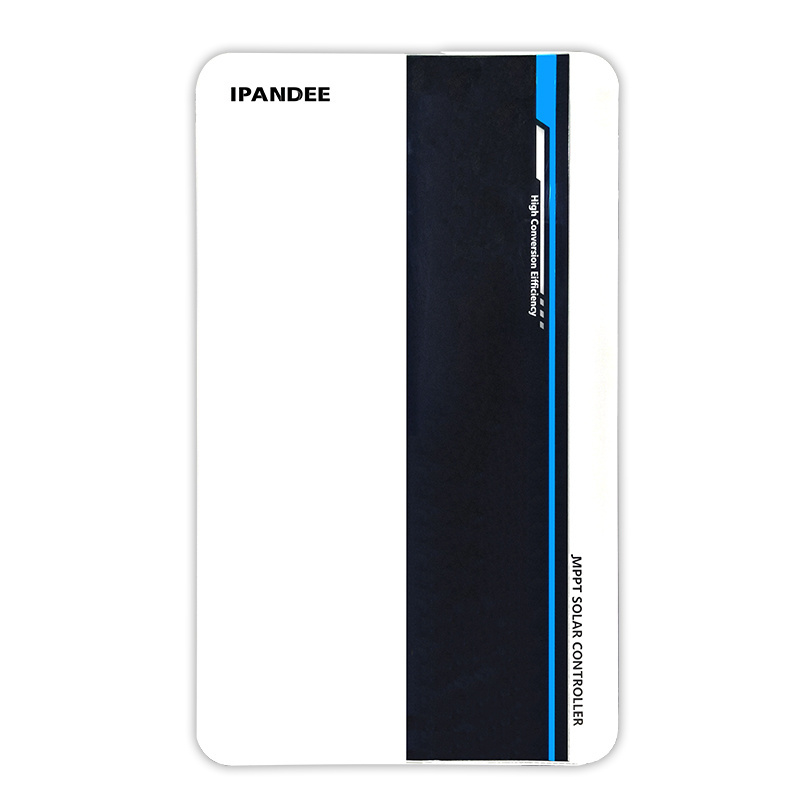

Galaxy series
(96V, 192V, 216V, 240V)
|
|
GS96L100
|
GS192L50
|
GS216L50
|
GS240L50
|
|||
|
Product Category
|
Controller type
|
Solar Charge Controller with Maximum Power Point Tracking (MPPT)
|
|
|
|
|||
|
|
Maximum Power Point Tracking Efficiency
|
99.5%
|
|
|
|
|||
|
|
Cooling method
|
forced air cooling
|
|
|
|
|||
|
|
Lead-acid battery system voltage range
|
72V~120V
|
144V-240V
|
162V-270V
|
180V-300V
|
|||
|
|
Lithium-ion battery system
|
96V
|
192V
|
216V
|
240V
|
|||
|
Input characteristics
|
Maximum input voltage(Voc.Max)
|
430VDC
|
|
|
|
|||
|
|
Minimum MPPT voltage（Vmppt.min）
|
Vbat + 10V
|
|
|
|
|||
|
|
start charging voltage
|
Vbat + 20V
|
|
|
|
|||
|
|
Input overvoltage protection/recovery voltage
|
430VDC/425VDC
|
|
|
|
|||
|
|
Rated input power(W)
|
10400
|
10400
|
11700
|
13000
|
|||
|
Charging characteristics
|
Applicable battery type
|
Common lead-acid batteries (SEL, GEL, FLD) and custom lead-acid batteries, custom lithium iron phosphate, ternary lithium or other lithium-ion batteries
|
|
|
|
|||
|
|
Rated charging current
|
100A
|
50A
|
50A
|
50A
|
|||
|
|
charging method
|
Lead Acid Battery: CC (Quick Charge)-CV (Constant Voltage Charge)-CF (Float Charge) Li-Ion Battery: CC (Quick Charge)-CV (Constant Voltage Charge)
|
|
|
|
|||
|
Load characteristics
|
load voltage
|
Same as battery voltage
|
|
|
|
|||
|
|
Rated load current
|
100A
|
50A
|
50A
|
50A
|
|||
|
|
load control mode
|
On/Off, Light Control Mode, Dual Time Period Timing Control Mode, Fixed Time Light Control Mode
|
|
|
|
|||
|
Display & Communication
|
Display
|
Working status indicator or MH-M80 meter
|
|
|
|
|||
|
|
communication
|
Dual RJ45 interface/RS485 bus/host computer software/built-in Bluetooth/WIFI module mobile phone cloud monitoring (optional)
|
|
|
|
|||
|
|
protocol
|
Standard Modbus protocol & non-standard proprietary protocol
|
|
|
|
|||
|
Other features
|
How to set
|
PC softwar / APP /Meter
|
|
|
|
|||
|
|
Protections
|
Input and output overvoltage protection/input reverse connection protection/ battery reverse connection protection/overheat
|
|
|
|
|||
|
|
Operating ambient temperature
|
-20℃~+50℃
|
|
|
|
|||
|
|
Storage temperature
|
-40℃~+75℃
|
|
|
|
|||
|
|
IP(Ingress protection)
|
IP21
|
|
|
|
|||
|
|
Recommended breaker for battery
|
≥125A
|
≥80A
|
≥80A
|
≥80A
|
|||
|
|
net weight/Gross weight
|
17kg/23.5kg
|
|
|
|
|||
|
|
Product Size/Package dimensions
|
313*540*187MM/635*430*295MM( wooden box)
|
|
|
|
|||
|
Galaxy series
(192V, 216V, 240V, 384V)
|
|
GS192H100
|
GS216H100
|
GS240H100
|
GS384H50
|
GS384H80
|
GS384H100
|
|||||
|
Product Category
|
Controller type
|
Solar Charge Controller with Maximum Power Point Tracking (MPPT)
|
|
|
|
|
|
|||||
|
|
Maximum Power Point Tracking Efficiency
|
99.5%
|
|
|
|
|
|
|||||
|
|
Cooling method
|
forced air cooling
|
|
|
|
|
|
|||||
|
|
Lead-acid battery system voltage range
|
144V-240V
|
162V-270V
|
180V-300V
|
288V-480V
|
|
|
|||||
|
|
Lithium-ion battery system
|
192V
|
216V
|
240V
|
384V
|
|
|
|||||
|
Input characteristics
|
Maximum input voltage(Voc.Max)
|
660VDC
|
|
|
850VDC
|
|
|
|||||
|
|
Minimum MPPT voltage（Vmppt.min）
|
Vbat + 10V
|
|
|
|
|
|
|||||
|
|
start charging voltage
|
Vbat + 20V
|
|
|
|
|
|
|||||
|
|
Input overvoltage protection/recovery voltage
|
660VDC
|
|
|
850VDC/845VDC
|
|
|
|||||
|
|
Rated input power(W)
|
20800
|
23400
|
26000
|
2080
|
33280
|
41600
|
|||||
|
Charging characteristics
|
Applicable battery type
|
Common lead-acid batteries (SEL, GEL, FLD) and custom lead-acid batteries, custom lithium iron phosphate, ternary lithium or other
lithium-ion batteries
|
|
|
|
|
|
|||||
|
|
Rated charging current
|
100A
|
100A
|
100A
|
50A
|
80A
|
100A
|
|||||
|
|
charging method
|
Lead Acid Battery: CC (Quick Charge)-CV (Constant Voltage Charge)-CF (Float Charge) Li-lon Battery: CC (Quick Charge)-CV (Constant
Voltage Charge)
|
|
|
|
|
|
|||||
|
Load characteristics
|
load voltage
|
Same as battery voltage
|
|
|
|
|
|
|||||
|
|
Rated load current
|
--
|
--
|
--
|
--
|
--
|
--
|
|||||
|
|
load control mode
|
On/Off, Light Control Mode, Dual Time Period Timing Control Mode, Fixed Time Light Control Mode
|
Normally open
|
|
|
|
|
|||||
|
Display & Communication
|
Display
|
Working status indicator or MH-M80 meter
|
|
|
|
|
|
|||||
|
|
communication
|
Dual RJ45 interface/RS485 bus/host computer software/built-in Bluetooth/WIFI module mobile phone cloud monitoring (optional)
|
|
|
|
|
|
|||||
|
|
protocol
|
Standard Modbus protocol & non-standard proprietary protocol
|
|
|
|
|
|
|||||
|
Other features
|
How to set
|
PC softwar / APP /Meter
|
|
|
|
|
|
|||||
|
|
Protections
|
Input and output overvoltage protection/input reverse connection protection/ overheat protection/overcharge protection
|
|
|
|
|
|
|||||
|
|
Operating ambient temperature
|
-20℃~+50℃
|
|
|
|
|
|
|||||
|
|
Storage temperature
|
-40℃~+75℃
|
|
|
|
|
|
|||||
|
|
IP(Ingress protection)
|
IP21
|
|
|
|
|
|
|||||
|
|
Recommended breaker for battery
|
≥125A
|
≥125A
|
≥125A
|
≥80A
|
≥100A
|
≥125A
|
|||||
|
|
net weight/Gross weight
|
32kg/30kg
|
|
|
--
|
|
|
|||||
|
|
Product Size/Package dimensions
|
340*522*222MM/620*450*335MM (wooden box)
|
|
|
340*585*227MM/680*450*335MM (wooden box)
|
|
|
|||||
