Quick Details
-
Model Number:
-
TD006
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Surmountor
-
Theory:
-
led pir motion sensor
-
Usage:
-
Ray Sensor
-
Output:
-
Switching Transducer
-
Size:
-
L41*W31*H9MM
-
Voltage:
-
DC 12V/24V
-
Load:
-
96W (12V), 192W(24V)
-
Current:
-
Max 4 Amps
-
Function:
-
Light will turn on/off when touch the spring, long touching can dimmer
-
Cable length:
-
20cm with DC plug
-
Warranty:
-
2 years
-
Certificate:
-
CE, RoHS
Quick Details
-
Use:
-
Sensor Switch
-
Mounting Type:
-
TD006
-
Description:
-
TD006
-
Model Number:
-
TD006
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Surmountor
-
Theory:
-
led pir motion sensor
-
Usage:
-
Ray Sensor
-
Output:
-
Switching Transducer
-
Size:
-
L41*W31*H9MM
-
Voltage:
-
DC 12V/24V
-
Load:
-
96W (12V), 192W(24V)
-
Current:
-
Max 4 Amps
-
Function:
-
Light will turn on/off when touch the spring, long touching can dimmer
-
Cable length:
-
20cm with DC plug
-
Warranty:
-
2 years
-
Certificate:
-
CE, RoHS

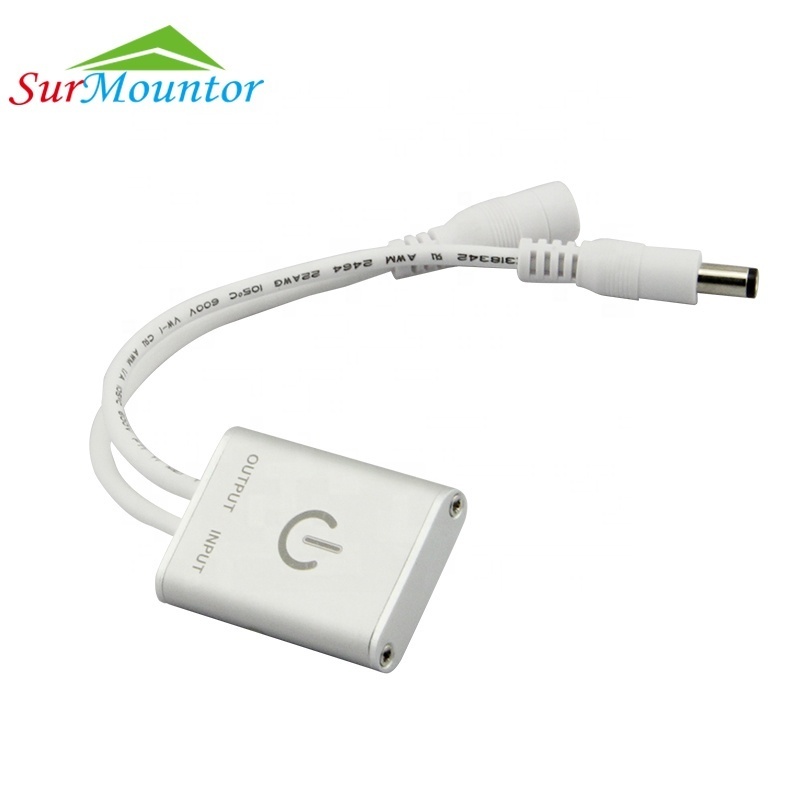

Metal Touch Switch Low Voltage External Metal Sensor Switch RoHS
Touch Switch TD006
Metal Touch Switch Low Voltage External Metal Sensor Switch RoHS
Touch Switch TD006 function description:
Non-memory button switch performs as below:
1) Originally"off" when the power is connected.
2) Quick Touch(time is less than 550ms) can turn the light on and off. One touch to turn on, another touch to turn off. The lamp is 100% bright when it is on.
3) Hold on touching(time is above 550ms) can adjust the brightness endlessly. It will reduce the brightnedd endlessly to the minimum in 3 seconds holding on when the light is on. It will increase the brightnedd endlessly to 100% in 3 seconds holding on when the light is off.
4) Quick touch and Hold on touching can be chosen anytime without any collision.
| Item | Parameters | Item | Parameters |
|---|---|---|---|
| Input Voltage | 12 V ~ 24 VDC | Size | L41*W31*H9MM |
| Current | Max. 4 A | Load | 48w for 12v, 96w for 24v |
| Cable length | 20cm with DC Plug | Dimmer function | available |
Touch Switch TD006 application :
- suitalbe for Cabinet.
Touch Switch TD006 dimension :
L41*W31*H9MM
Touch Switch TD006 details :
Touch Switch TD006 installation instruction:
Connect wires to the input and output end of control PCB.
A707 led profile with this Touch Switch TD006 :
Note : The function/program can be customized made upon different needs, such as with/without memory, longer time for stay on, etc...
Metal Touch Switch Low Voltage External Metal Sensor Switch RoHS
Package for Touch Switch TD006 :
1 piece per white bag, 50pcs/ carton.
