Quick Details
-
Brand Name:
-
Dongpeng
-
Model Number:
-
D02
-
Items:
-
Value
-
Measuring Range:
-
0-6m(Stiff stick)0-15m(flexible cable)
-
Measurement accuracy:
-
±1mm
-
Power supply:
-
15-35VDC
-
Electrical interface:
-
Two-wire system 4-20mA, HART or digital communication
-
Answer the liquid material:
-
Stainless steel, PTFE, Ti
-
Process Connection:
-
Side mounted strapping type, Top mounted plug in
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Dongpeng
-
Model Number:
-
D02
-
Items:
-
Value
-
Measuring Range:
-
0-6m(Stiff stick)0-15m(flexible cable)
-
Measurement accuracy:
-
±1mm
-
Power supply:
-
15-35VDC
-
Electrical interface:
-
Two-wire system 4-20mA, HART or digital communication
-
Answer the liquid material:
-
Stainless steel, PTFE, Ti
-
Process Connection:
-
Side mounted strapping type, Top mounted plug in
Products Description

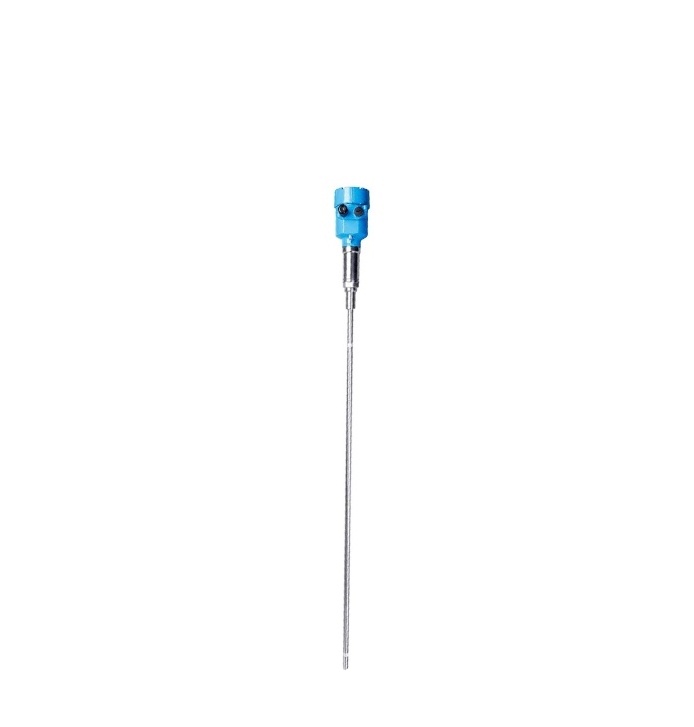

UQK - 2 series ball float liquid level controller is using liquid buoyancy effect, in the airtight metal or plastic pipe, according to the user to specify the location of the dry reed pipe and quantity setting one or more points, then put the hollow tubes through the same amount and internal floating ball with annular magnet, and retaining ring to control the floating ball and dry reed pipe corresponding to the position, the floating ball can be in a certain range Bobbing inside. A magnet in the float is used to attract the reed tube, producing an open and close action to control or indicate the position of the liquid level.
It can be used in shipbuilding industry, generator equipment, petrochemical industry, food industry, wastewater or water purification equipment, electronic industry, printing and dyeing industry, chemical industry and so on.
Technical Parameters
|
Items
|
Value
|
|
Measuring Range
|
500mm-5000mm
|
|
Electrical interface
|
4-20mA, HART
|
|
Voltage range
|
12-36VDC
|
|
Rated Voltage
|
24VDC
|
|
Degree of accuracy
|
+0.5%FS
|
|
image resolution
|
≤0.02%FS
|
|
Display screen
|
LCD
|
|
Working pressure
|
1.0-2.5MPa
|
|
Environment temperature
|
-25-70℃
|
|
Ambient humidity
|
5%-95%
|
|
Transmitter temperature
|
-40-200℃
|
|
Protection level
|
IP66
|
|
Explosion-Proof
|
ExiaIICT3-T4 ExdIICT4-T6
|
|
Power consumption
|
≤30mA
|
|
Response time
|
One second
|
FAQ
1. Q: Where is your company located? Could I visit your factory?
A: Our company is located in Zhaoyuan, Shandong province, China. Sincerely invite you to visit our factory.
2. Q: How can I get some samples? Is it free?
A: Welcome to contact us by e-mail or Alibaba for your requirements. We can provide sample service.
3. Q: How does your factory do regarding QC?
A: Quality is priority. We always consider quality as the most important thing during the whole production process.
Our factory has gained ISO9001.
4. Q: What is your after-sale service? How about the warranty?
A: We offer guarantee on our product for 12 months and we have the special after-sales service team.
5.Q: Can you offer OEM or design services?
A: Yes, We design and manufacture our products by ourselves.
We can make OEM according to your requirements, including packing, logo print etc.
6. Q: What about your delivery time? And how do you delivery the goods?
A: Once getting your prepayment, the production will be started immediately.
It is about 5-7 working days since payment and we usually deliver by DHL, UPS, FedEx or TNT,
Airline and sea shipping also optional. For urgent orders, please contact us to inquire about the stock situation.
7. Q: How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system and the defective rate will be less than 0.15%.
Secondly, during the guarantee period, we will send new parts with new order for small quantity. For defective
batch products, we will repair them and resend them to you or we can discuss the solution including re-call
according to real situation.
