FOB Reference Price: Get Latest Price
≥10 Pieces
US $23.9
≥100 Pieces
US $18
≥999 Pieces
US $15
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
Langsung
Model Number:
LS903-A1
Accuracy Class:
0.5%
Output Voltage:
AC20~400V
Operating Temperature:
-10~50℃
Dimensions:
96*95*100mm

Quick Details

Phase:
Three Phase
Measuring Energy Range:
/
Place of Origin:
Heilongjiang, China
Brand Name:
Langsung
Model Number:
LS903-A1
Accuracy Class:
0.5%
Output Voltage:
AC20~400V
Operating Temperature:
-10~50℃
Dimensions:
96*95*100mm
Product Description

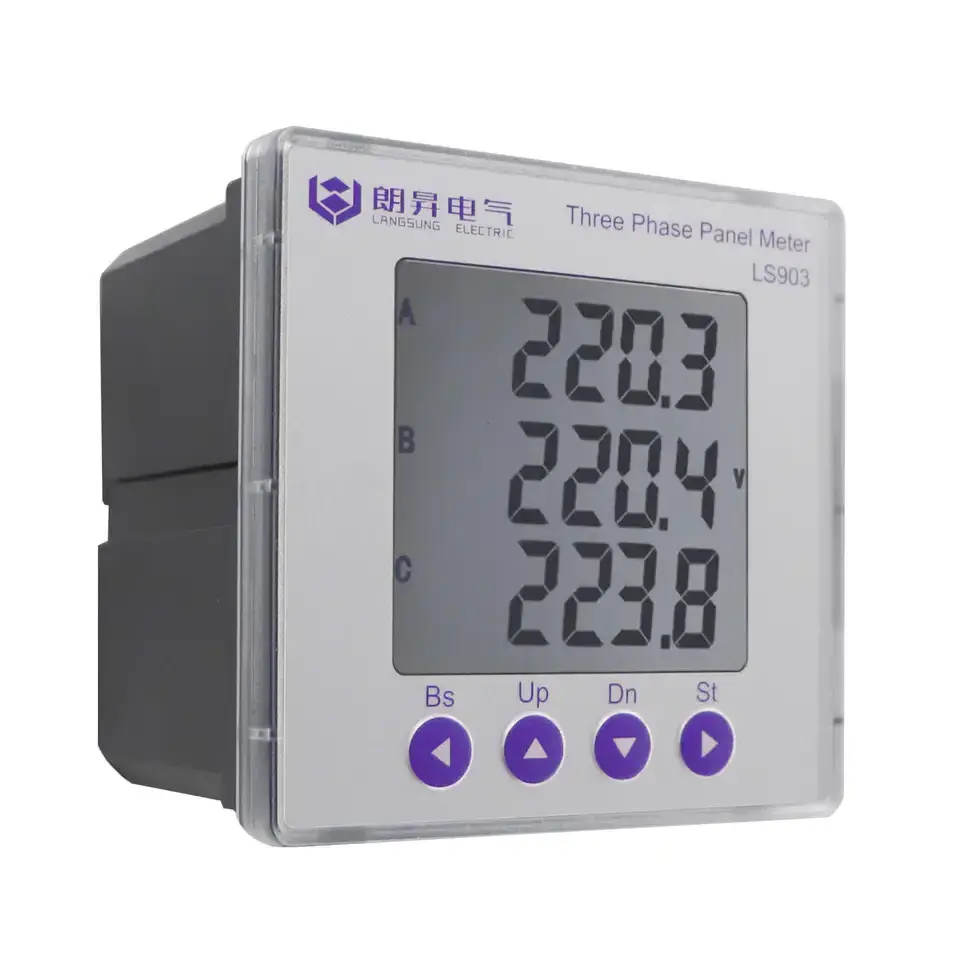

LS903-A1 is a high-precision multifunctional smart meter, intelligent equipment integrating measurement and communication, mainly used in the building field, monitoring building energy consumption.
Current accuracy
0.5
Current range
AC 0.015~6A
Storage temperature
-40℃~70℃
Working temperature limit
-20℃~55℃
Current rating
AC 5A
Maximum power consumption
≤2W
Power Input
AC220±15%
Insulation resistance
100MΩ/500V
Dimensions
(96±0.5)mm*(96±0.5)mm*(100±1)mm
Electrical fast transient pulse group immunity test
IEC60255-22-4,  CLASS IV
Electrostatic discharge immunity test
IEC60255-22-2,  CLASS III
Surge immunity test
IEC60255-5,        CLASS IV
Radiofrequency electromagnetic field radiation immunity test
IEC60255-22-4,   CLASS III  (10V/m)
