Quick Details
-
Model Number:
-
DOT Standard
-
Brand Name:
-
BEYIWOD
-
Name:
-
Aluminum cylinder
-
Working Pressure:
-
150bar
-
Test Pressure:
-
250bar
-
Water Capacity:
-
1.68liter; 3.35liter
-
CO2:
-
2.5lbs 5lbs
-
Application:
-
Beverage/medical
-
Standard:
-
DOT3AL/ISO7866
-
Valve one:
-
CGA870 valve
-
Valve two:
-
CGA540 valve
-
Valve three:
-
CGA320 valve
Quick Details
-
Material:
-
Aluminium
-
Use:
-
Medical/Beverage
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
DOT Standard
-
Brand Name:
-
BEYIWOD
-
Name:
-
Aluminum cylinder
-
Working Pressure:
-
150bar
-
Test Pressure:
-
250bar
-
Water Capacity:
-
1.68liter; 3.35liter
-
CO2:
-
2.5lbs 5lbs
-
Application:
-
Beverage/medical
-
Standard:
-
DOT3AL/ISO7866
-
Valve one:
-
CGA870 valve
-
Valve two:
-
CGA540 valve
-
Valve three:
-
CGA320 valve

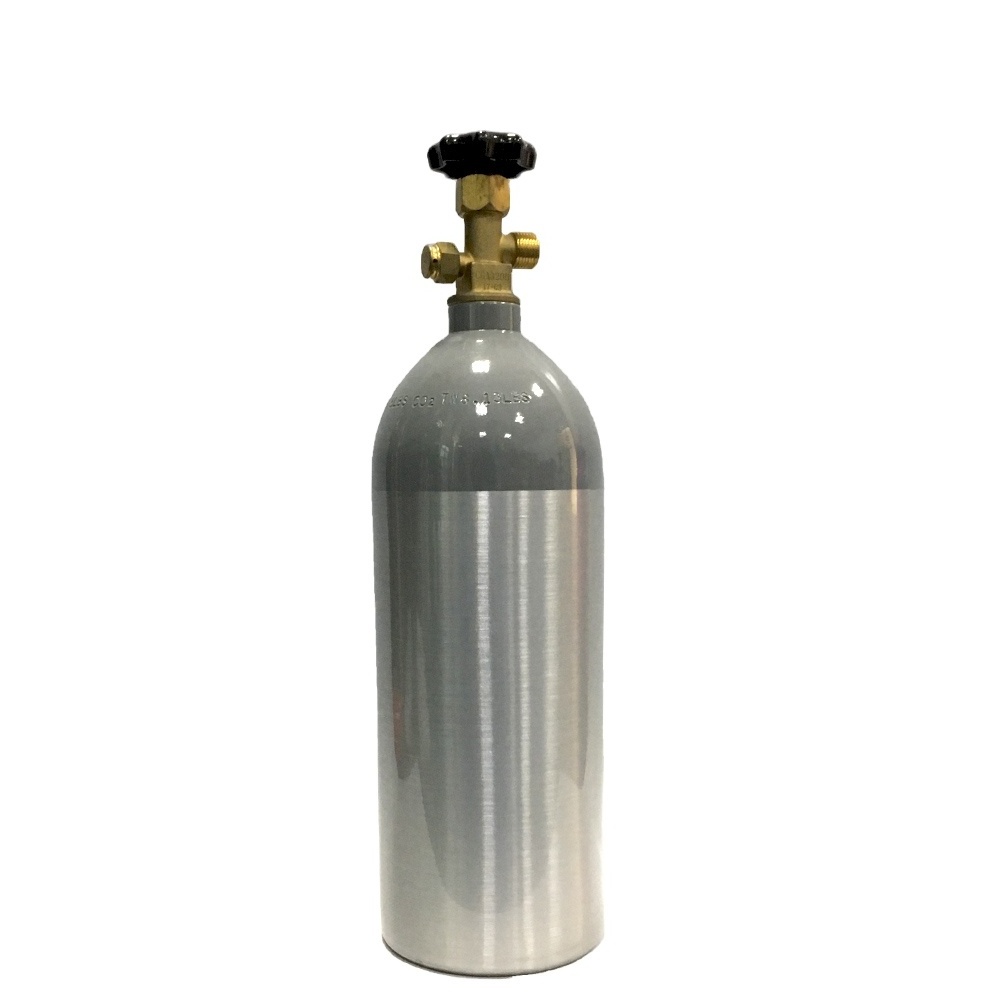

ALUMINUM CYLINDER -- SHANGHAI BENE HIGH PRESSURE CONTAINER CO., LTD.
Aluminum cylinder oxygen cylinder co2 tank/cylinder with carton.
Aluminum cylindere oxygen cylinder co2 tank co2 cylinder Aluminum cylindere oxygen cylinder co2 tank co2 cylinder
Brand Name: BEYIWOD, Support customer customization.
Standard:ISO7866/DOT3AL/EU Standard/CE TPED
|
Size |
Diameter mm |
Length mm |
Volume L/water capacity |
Weight kg/lbs |
Working pressure bar/psi |
Test pressure bar/psi |
|
M2 |
51 | 238 | 0.30 | 0.37 | 120/1800 | 210/3000 |
|
9oz |
54 | 245 | 0.38 | 0.38 | 124/1800 | 210/3000 |
|
12oz |
64 | 245 | 0.51 | 0.49 | 124/1800 | 210/3000 |
|
M4 |
81 | 205 | 0.68 | 0.72 | 124/1800 | 210/3000 |
|
20oz |
81 | 245 | 0.85 | 0.80 | 124/1800 | 210/3000 |
|
47ci |
90 | 210 | 0.70 | 1.22 | 210/3000 | 350/5000 |
|
M6 |
81 | 295 | 1.00 | 1.14 | 155/2216 | 260/3695 |
|
ML6 |
111 | 195 | 1.08 | 1.34 | 139/2015 | 232/3360 |
|
M9/2.5lbs(co2) |
111 | 276 | 1.68 | 1.75 | 139/2015 | 232/3360 |
| MD | 111 | 423 | 2.75 | 2.45 | 139/2015 | 232/3360 |
| M22 | 133 | 420 | 3.90 | 3.3 | 139/2015 | 232/3360 |
| ME | 111 | 650 | 4.55 | 3.6 | 139/2015 | 232/3360 |
|
5lbs(co2) |
133 | 369 | 3.34 | 3 | 124/1800 | 207/3000 |
|
10lbs(co2) |
175 | 430 | 6.70 | 6 | 124/1800 | 207/3000 |
| M60 | 184 | 581 | 10.00 | 9.8 | 153/2216 | 255/3695 |
| 20lbs(co2) | 203 | 600 | 13.40 | 10.8 | 124/1800 | 207/3000 |
| MM | 203 | 907 | 21 | 19 | 153/2216 | 255/3695 |
More Product catalog, pls contact us.
