Quick Details
-
Power:
-
177KW
-
Dimension(L*W*H):
-
30*28*17m
-
Weight:
-
60000 kg
-
Product name:
-
Stationary Asphalt Batch Mixing Plant
-
Output:
-
80 t/h
-
Color:
-
Special Request
-
Type:
-
Automatic Batch
-
Capacity:
-
80t/h
-
Mixing Type:
-
Hot Asphalt Mixing Plant
-
Mixer capacity:
-
1000kg/batch
-
Burner:
-
Coal
-
Application:
-
High-grade Asphalt Road Paving
-
Certification:
-
ISO.CE
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
UNIQUE
-
Voltage:
-
380V
-
Power:
-
177KW
-
Dimension(L*W*H):
-
30*28*17m
-
Weight:
-
60000 kg
-
Product name:
-
Stationary Asphalt Batch Mixing Plant
-
Output:
-
80 t/h
-
Color:
-
Special Request
-
Type:
-
Automatic Batch
-
Capacity:
-
80t/h
-
Mixing Type:
-
Hot Asphalt Mixing Plant
-
Mixer capacity:
-
1000kg/batch
-
Burner:
-
Coal
-
Application:
-
High-grade Asphalt Road Paving
-
Certification:
-
ISO.CE

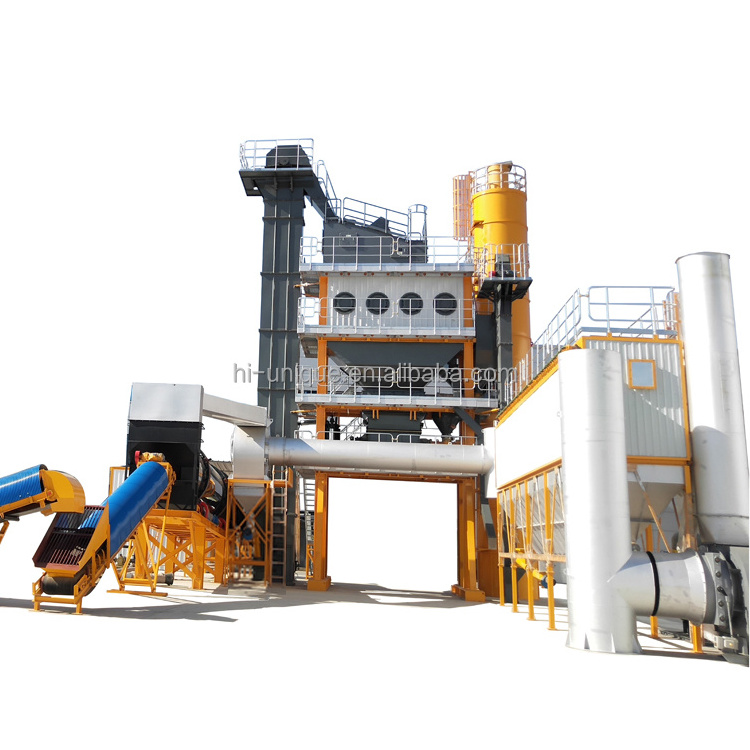

Introduction:
Asphalt mixing plants are the most widely used type of asphalt plants. Batch mix means there is a time interval between two mixing batches. Usually, batch cycle is 40 to 45s.
Asphalt batch mix plants produce high quality asphalt mixture for all grades of road pavement /rehabilitation and all sizes of asphalt production. Furthermore, they can be tailored as clients special requirements.
It is composed of cold aggregate supply system, drum dryer, burning system, hot aggregate elevator, vibrating screen, weighing system, mixing tower, dust collecting system, filler supply system, bitumen supply system, electrical control system and finished asphalt storage bin.
Parameters:
|
Model |
YLB1500 |
||
|
Main Parameters |
Capacity(t/h) |
120 |
|
|
Total Power(kw) |
326 |
||
|
Noise(dB) |
≤70 |
||
|
Voltage |
220V/380V-50HZ(Adjustable) |
||
|
Cold Feeder (Mobile Type) |
Cold Bin(m³) |
4*8 |
|
|
Belt Feeding Capacity(t/h) |
130 |
||
|
Belt Width(mm) |
600 |
||
|
Feeding Belt Adjustment Mode |
Frequency Invertor |
||
|
Drying System (Mobile Type) |
Drying Capacity(t/h) |
130 |
|
|
Dryer Drum Size(mm) |
Φ1800*8000 |
||
|
Drive Motor Power(kw) |
4*11 |
||
|
Fuel |
Diesel, Heavy Oil, Fuel Oil, Coal, Nature Gas |
||
|
Coal Burner |
Max Burning Amount(kg/h) |
1700 |
|
|
Oil Burner |
Max Burning Amount(kg/h) |
170-850 |
|
|
Dust Collecting System(Mobile Type) |
Primary Gravity Dust Collector |
Cyclone Dust Collector, Volute Casing Collector |
|
|
Baghouse Dust Collector |
Filter Area(m²) |
450 |
|
|
Filter Bag |
NOMEX (USA. DuPont) |
||
|
Air Emissions |
≤20mg/Nm³ |
||
|
Air Black |
Ringelmann Ⅰ |
||
|
Blower(m³/min) |
740 |
||
|
Mixing Tower (Mobile Type) |
Hot Aggregate Elevator |
Type |
Chain Elevating |
|
Capacity(t/h) |
130 |
||
|
Vibrating Screen |
Screening Decks |
4 |
|
|
Screening Area(m²) |
24.2 |
||
|
Hot Storage Bin |
Quantity |
4+1 |
|
|
Capacity(m³) |
28.5 |
||
|
Mixer |
Mixer Capacity(kg) |
1500 |
|
|
Type |
Double Axis Forcing Stirring Batch Mixer |
||
|
Mixing Period(s) |
45 |
||
|
Mixing Power(kw) |
2*22 |
||
|
Weighing System |
Hot Aggregate:±0.5%; Bitumen: ±0.25%; Filler:±0.2% |
||
Features of Asphalt Mixing Plant:
• Cost effective solutions for your project
• Low maintenance operation & Low energy consumption & Low emission
• Optional environmental design - sheeting and clad to customers requirements
• Multi-fuel burner for choose
