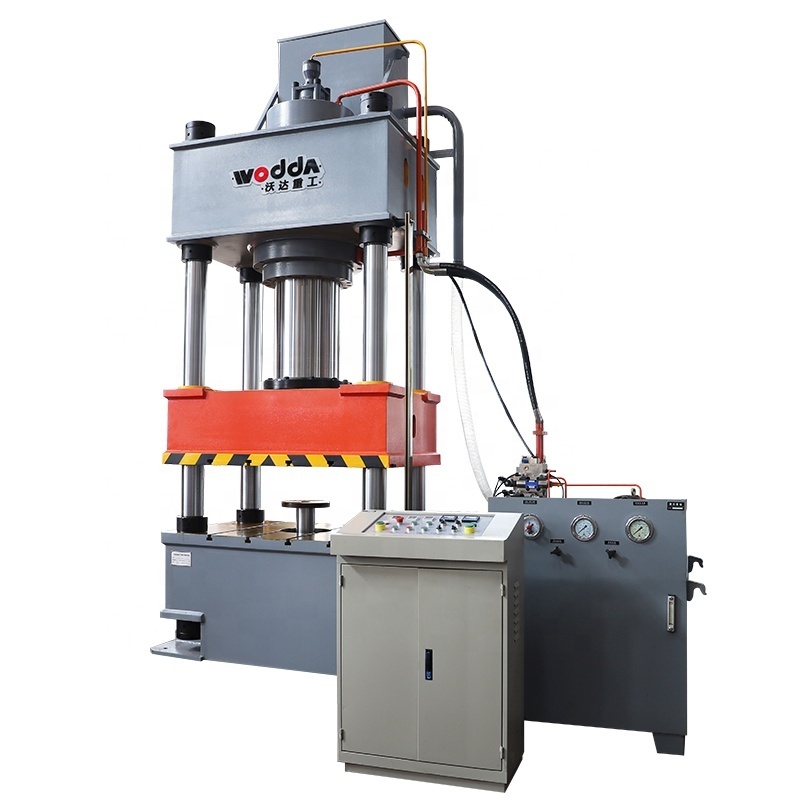

Servo deep drawing Hydraulic Press Machine 200 Ton
Servo deep drawing Hydraulic Press Machine 200 Ton
Servo deep drawing Hydraulic Press Machine 200 Ton
Servo deep drawing Hydraulic Press Machine 200 Ton
Servo deep drawing Hydraulic Press Machine 200 Ton
Servo deep drawing Hydraulic Press Machine 200 Ton
Servo deep drawing Hydraulic Press Machine 200 Ton
Servo deep drawing Hydraulic Press Machine 200 Ton

Servo deep drawing Hydraulic Press Machine 200 Ton

FOB Reference Price: Get Latest Price
≥1 Sets
US $3000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Shandong, China
Brand Name:
WODA
Year:
new
Voltage:
CISTOMIZED
Dimension(L*W*H):
WORKTABLE 800*800
Weight (T):
11 T
Motor Power (kw):
7.5 kw
Power Source:
Hydraulic
Model:
YQ32 - 200T
Application:
Metal Sheet Steel forming, deep drawing hydraulic press
Product name:
Servo Hydraulic Press Machine 200 Ton
Keyword:
200 ton hydraulic press machine
motor:
Siemens
seller type:
China factory exporter
PLC:
OMRON optional
Weight (KG):
4000
Certification:
ce/sgs

Quick Details

Machine Type:
Four-column Three-beam Hydraulic Press
Slide Stroke (mm):
600
Return Force (kN):
2000 kN
Place of Origin:
Shandong, China
Brand Name:
WODA
Year:
new
Voltage:
CISTOMIZED
Dimension(L*W*H):
WORKTABLE 800*800
Weight (T):
11 T
Motor Power (kw):
7.5 kw
Power Source:
Hydraulic
Model:
YQ32 - 200T
Application:
Metal Sheet Steel forming, deep drawing hydraulic press
Product name:
Servo Hydraulic Press Machine 200 Ton
Keyword:
200 ton hydraulic press machine
motor:
Siemens
seller type:
China factory exporter
PLC:
OMRON optional
Weight (KG):
4000
Certification:
ce/sgs

Servo deep drawing Hydraulic Press Machine 200 Ton
Product Description
The main performance characteristics:
200 ton Four Column Deep drawing Hydraulic press for stainless steel, Economical and Practical, Hydraulic control adopts to insert set valve intergrated system,decrease let out point.Movement reliability,durable and long life span.It is constant pressure to realize with calm in the first place and calm producedure two develop technology,have to insure press the function of delay time, The route of working pressure may be regulated in assigned scope, adopt buttons for centralized control.Can realization manual,Semi-automatic,automatic 3 operate form.
Application:
Hydraulic Press Machine 315 Ton With Hydraulic Cushion For Stretching, such as stamping, bending, flanging sheet stretching, and can be engaged in correction, press fit, plastic products, powder products, compression molding.
Specification
Unit
200T-A
200T-AK
200T-B
200T-BK
200T-C
200T-CK
Nominal force
KN
2000
2000
2000
2000
2000
2000
Ejecting force
KN
35
35
50
50
50
50
Max. pressure of liquid
MPa
25
25
25
25
25
25
Stroke of slider
mm
400
600
400
600
400
600
Max. opening height
mm
800
1000
800
1000
800
1000
Working table size
mm*mm
660x660
660x660
800x800
800x800
1000x1000
1000x1000
Ejecting stroke
mm
250
250
250
250
250
250
Speed of slider
Idle speed
mm/s
30
100
30
100
30
100
Working speed
mm/s
8-12
6-12
8-12
6-12
8-12
6-12
Return speed
mm/s
20
100
20
100
20
100
Motor power
KW
7.5
7.5
7.5
7.5
7.5
7.5
Detailed Images

OIL PRESSURE PUMP

Compared with the plug-in oil pump, the horizontal positioning of the oil pump can reduce the heat generation, the oil temperature rises slowly, and the machine life is extended.

HYDRAULIC TANK
Shot blasting combines three new processes of high-pressure vacuuming dough clearance.After the equipment is commissioned, the fuel tank is opened
again, and the hydraulic oil flows into the main tank through the high pressure, and the components of each part are cleaned twice.
COLUMN GUIDE SLEEVE
The column material is 45#steel, the surface is hard chrome -plated, the slider relies on four columns for
vertical movement, and the four-column guide sleeve is the boundary oil-free lubrication bearing, which improves the friction mechanism, reduces the frictional resistance, and avoids the column scratches and strains.




PISTON ROD

Piston rod surface hardness to 55℃
effective solution to seal ring injury， not easy to scratch
Company Introduction
Packing&Shipping
1.The four column metal stamping press machine surface with anti-rust treatment,
2.The four column metal stamping press machine inner layer of plastic waterproof packaging,
3.The four column metal stamping press machine outer layer of thick wood or steel frame fixed,And then use a synthetic board
package.
Combined container transport, or separate container transport.
FAQ

Q:How about your machine quality?We are worry about the quality.

A:Woda is a mature brand in China. through our several years research in technology , our design including strcture and detailed sercurity and precision has enhanced greatly, and can match all the CE standard or mor strict standard.Our machines distribute worldwide to about 20 countries where there are metal plate industry.And where there are our machines, there are good reputation and terminal user satisfaction.

Q:Why Choose your company?

A:We can provide customized services according to customer requirements. We also have professional R &D team and fast response sales team. Strictly control each step of QA &QC system processes. We have an after sale service team than can quickly solve any problem you may have in the use.

Q:How to select your machine?

A: you can tell me your specifications ,we can choose the best model for you . we also have some regular model for you to choose.You can also provide the drawings, size , photos of the products, we can design the suitable machine for you according to your requirements. After the machine is finished, you can also provide samples and we will test it for you.
