Quick Details
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
High Frequency Metal Brazing Welding Soldering Induction Machine
-
Application:
-
Metal brazing/heating/welding/soldering
-
Working voltage:
-
380/50 V/HZ
-
Max input power:
-
30kw
-
Oscillation frequency:
-
25-35KHZ
-
Cooling water flow:
-
25/0.1
-
Weight:
-
60kg
-
Dimension:
-
265*600*540
-
Duty cycle:
-
100%
-
Efficiency:
-
95%
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lanshuo
-
Model Number:
-
LSW-30
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
High Frequency Metal Brazing Welding Soldering Induction Machine
-
Application:
-
Metal brazing/heating/welding/soldering
-
Working voltage:
-
380/50 V/HZ
-
Max input power:
-
30kw
-
Oscillation frequency:
-
25-35KHZ
-
Cooling water flow:
-
25/0.1
-
Weight:
-
60kg
-
Dimension:
-
265*600*540
-
Duty cycle:
-
100%
-
Efficiency:
-
95%

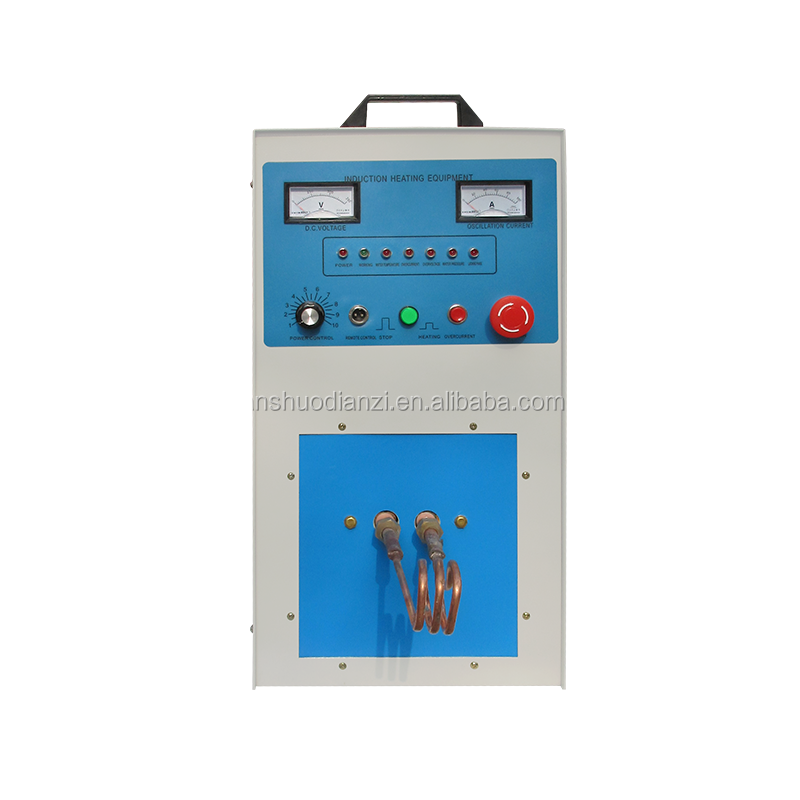

High Frequency Electromagnetic Metal Brazing Welding Soldering Induction Machine (LSW-30KW)
Main Technical Parameters
|
Model |
LSW-30 |
|
Working voltage (V/HZ) |
380/50 |
|
Voltage range (V) |
340-420 |
|
Max input current (A) |
52 |
|
Max input power (KW) |
30 |
|
Oscillation frequency(KHZ) |
25-35 |
|
Efficiency(%) |
95% |
|
Duty cycle(%) |
100% |
|
Cooling water flow :(control part) L/Main-MPa |
25-0.1 |
|
Weight: kg |
60 |
|
Dimension: (L*W*H)mm |
265*600*540 |
Detailed Drawings
Working principle
This is a form of welding that uses electromagnetic induction to heat the workpiece, which makes the brazing filler metals surface temperature rise rapidly till melting, connecting finally.
Application
Our IGBT inducton brazing machine used for brazing of diamond saw blade, alloy cutting tools(lathe tool, reamer, milling tool), mining tools(drill bits, cutting picks), copper tubes, motor copper line, copper bar.
Advantages
(1)Simple, a few minutes to learn, install, easy to move. Connect the power supply, induction coil and inlet and outlet pipe can be used.
(2)Low power consumption, power consumption is only one-third of the old-fashioned high frequency. The elimination of the high-pressure area, eliminating the generation of nearly ten thousand volt high-voltage step-up transformer, can be 24 hours continuous use in various models of macine duty rates.
(3)Basic eliminate scale, fast heating, the surface only a few of the scale.
(4)Temperature uniformity, no carbon or oxyacetylene flame itself, easy to observe the temperature, density induction coil so that all parts of the workpiece to obtain their desired temperature.
(5)To improve the working environment, eliminate harmful carbon or oxyacetylene gas generated during combustion.
(6)Reduce waste, save raw materials, so that the workpiece to improve production quality.
Packaging:
Wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
Accessories: induction coils,foot switch and installing and operating instructions.
Shipping:
by sea, LCL(less than container load) or by air, by train or DDU within 7-10 working days after payment received.
(1) Reply the email within 24 hours.
(2) Engineers available to service machinery.
(3) On-line service for guiding.Installation video will arrive to you with your products,any more questions ,our engineers will answer you directly.
(4) Package, language, logo can be designed as your requirements.
(5)
Customized is available.
