Quick Details
-
Power:
-
customizd
-
Dimension(L*W*H):
-
90*50*100
-
Weight (KG):
-
50
-
Package:
-
Plywood Case
-
Feature:
-
High Cleanliness
-
Recovery Sand:
-
Automatic
-
Application:
-
Rust / Corrosion Proof
-
service:
-
Local Agent , Video Technical Support, Online Support
-
Function:
-
Metal Surface Cleaning
-
operate:
-
Fully Automatic Continuous Blasting Cleaning
-
Surface Finish:
-
SA2.5 to SA3.0
-
Product name:
-
Automatic Recovery Dust Free Vacuum Mobile Sand Blasting Machine
-
Advantage:
-
Closed circuit ,no pollution or waste.
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Fengyao
-
Marketing Type:
-
New Product
-
Power:
-
customizd
-
Dimension(L*W*H):
-
90*50*100
-
Weight (KG):
-
50
-
Package:
-
Plywood Case
-
Feature:
-
High Cleanliness
-
Recovery Sand:
-
Automatic
-
Application:
-
Rust / Corrosion Proof
-
service:
-
Local Agent , Video Technical Support, Online Support
-
Function:
-
Metal Surface Cleaning
-
operate:
-
Fully Automatic Continuous Blasting Cleaning
-
Surface Finish:
-
SA2.5 to SA3.0
-
Product name:
-
Automatic Recovery Dust Free Vacuum Mobile Sand Blasting Machine
-
Advantage:
-
Closed circuit ,no pollution or waste.

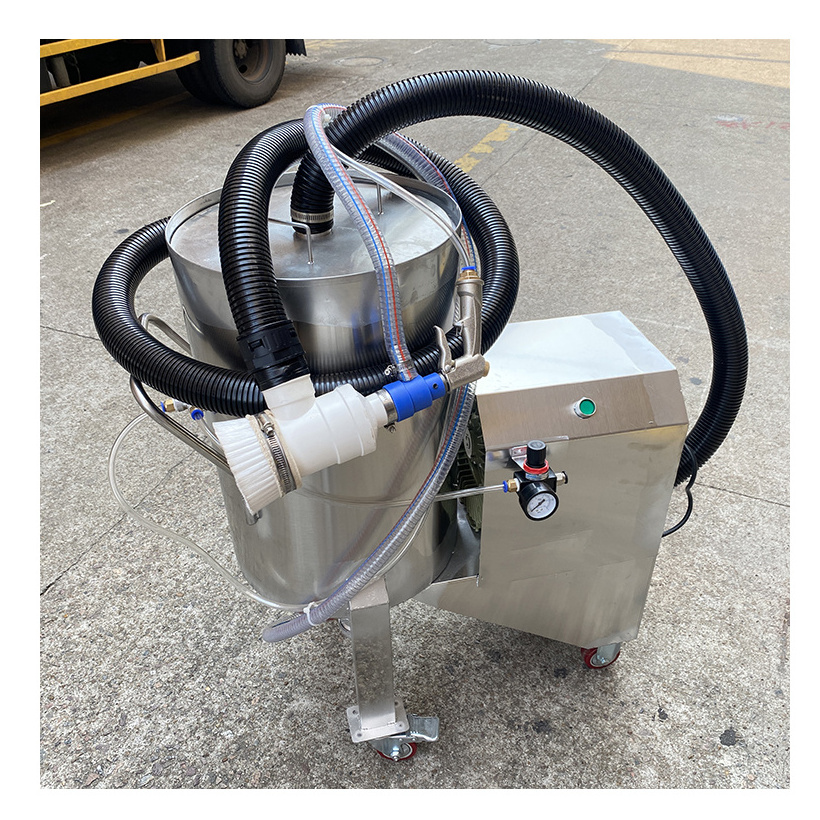

Vacuum dustless recycling sand blasting machine
PRODUCT DESCRIPTION
VACUUM BLASTING MACHINE
As the actual blasting is sealed off by a brush head, dust and abrasives are immediately vacuumed by a powerful suction unit. The separator and silo fully recycle the collected, used abrasives. The automatically contained dust can be simply discharged.
vacuum blasting is a safe blasting solution for confined or critical areas (with a lower working speed compared to 'open' blasting).
Clean blasting and economic recycling of abrasives. Dustless vacuum blaster . Closed circuit ,no pollution or waste.
PROUDCT PARAMETER
| Technical specifications | FY200D | FYJX 250-LXII |
| Operating pressure | 0.3 ~ 0.7 MPa | 0.3 ~ 0.7 MPa |
| Air consumption | 2 - 3 m3/min | 3 - 4 m3/min |
| Power consumption | Compressed air and electricity | Compressed air only |
| Vacuum | 16.7KPa | |
| Vacuum pump | 160m3/h, 2.2kw | |
| Abrasive storage hopper | 40 liters Approx | 60 liters Approx |
| Operting hose length | 5 meter max | 5 meter max |
| Blast cleaning | Sa2.5-Sa3.0 | Sa2.5-Sa3.0 |
| Process capacity | 2-3m2/h | 2-3m2/h |
| Blast cycle | Continuous | Continuous |
Features:
• Blasts away rust, dirt and paint quickly
• Features a vacuum recovery system at the blast nozzle to eliminate mess
• Media is recycled for continuous use
• Dust is captured in container for ease of disposal
• Wheels and casters offer ease in mobility
