Quick Details
-
Marketing Type:
-
New Product 2021
-
Weight (KG):
-
800 KG
-
Power (kW):
-
5.5
-
Name:
-
wood panel saw
-
Type:
-
Full-automatic
-
Voltage:
-
220v/380v
-
Color:
-
Customers' Demand
-
Size:
-
2900*1140*1160mm
-
Usage:
-
Woodworking Equipment
-
Function:
-
Wood Surface Smooth
-
Feeding speed:
-
5-25m/min
-
Brand:
-
Grandio
-
After Warranty Service:
-
Support Online Support
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GRANDIO
-
Machine Type:
-
table saw
-
Marketing Type:
-
New Product 2021
-
Weight (KG):
-
800 KG
-
Power (kW):
-
5.5
-
Name:
-
wood panel saw
-
Type:
-
Full-automatic
-
Voltage:
-
220v/380v
-
Color:
-
Customers' Demand
-
Size:
-
2900*1140*1160mm
-
Usage:
-
Woodworking Equipment
-
Function:
-
Wood Surface Smooth
-
Feeding speed:
-
5-25m/min
-
Brand:
-
Grandio
-
After Warranty Service:
-
Support Online Support
Product Description

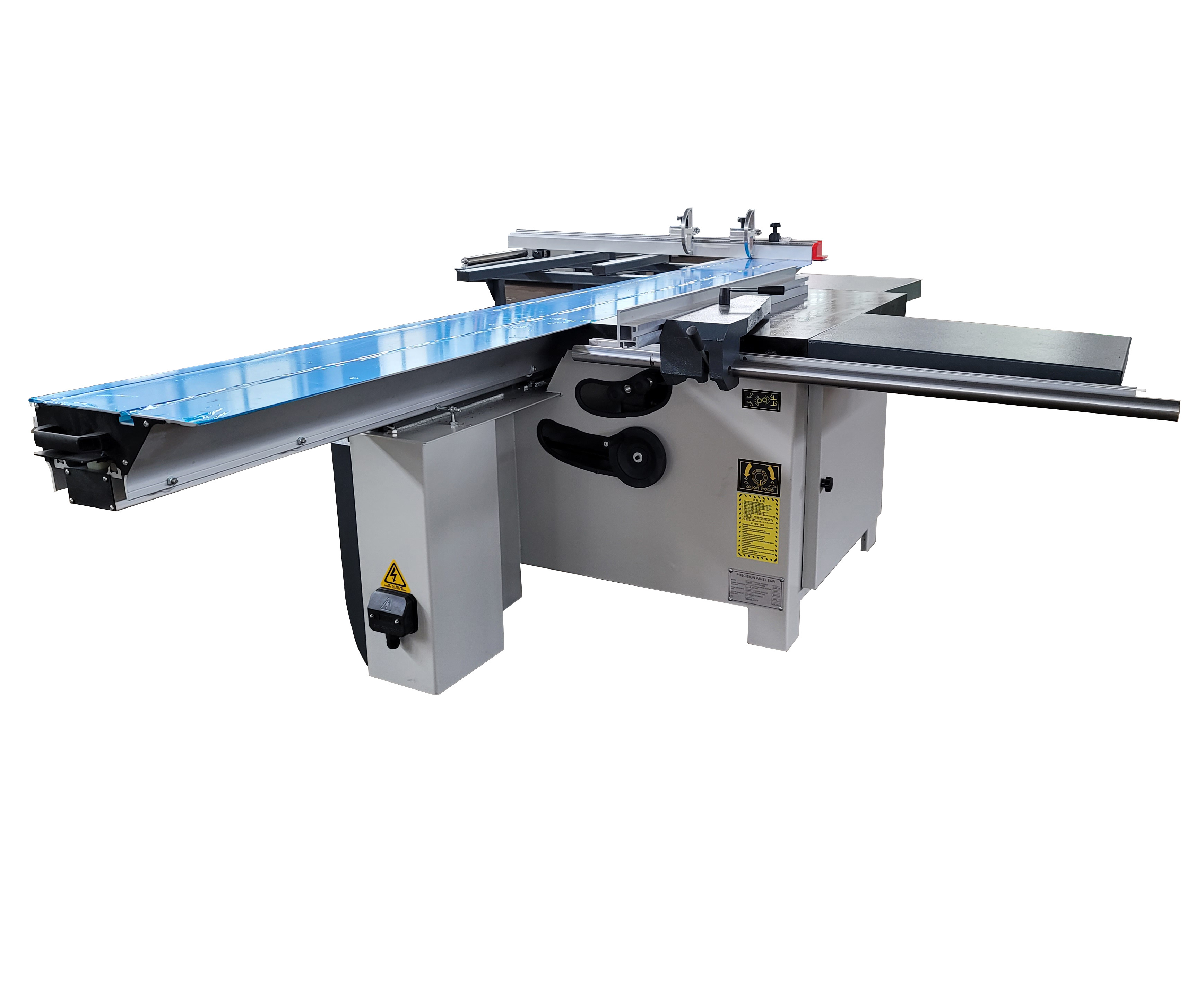

Panel Saw Machine Description
Precision Auto Wood Sliding Table Panel Saw Machine For Woodworking is suitable for processing all density boards, shaving boards
artificial boards, ABS boards, PVC boards, plexiglass plates, genuine woodboards, and other boards with similar structures and
hardness.
It is widely applicable and not limited to materials. According to the cutting boards, it is suitable for processing various
density boards, artificial boards, fiberboards, creative boards, ABS boards, PVC boards, plexiglass boards, and boards with
similar hardness.
hardness.
It is widely applicable and not limited to materials. According to the cutting boards, it is suitable for processing various
density boards, artificial boards, fiberboards, creative boards, ABS boards, PVC boards, plexiglass boards, and boards with
similar hardness.
Specification
Saw blades
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
High-power and pure copper motor
High power and pure copper motors provides stronger power to ensure precise cutting and prevent edge breakage during plate
cutting.
cutting.
Electric lifting and tilting control panel
Intelligent control panel, with angel digital display, electronic lifting and tilting. More convenient to use.
Extended ruler
The length of ruler extended to 175cm.
Thickened sliding table
Round guide rails sliding table, with stable structure and high pressure. It runs stable when cutting heavy plates to ensure the
accuracy of the machine using.
accuracy of the machine using.
Dust cover
The saw blade protection allows the operator to visualize the panel while cutting and increasing the dust extraction capacity.
|
Mode
|
2.8m 45° MJ6128
|
2.8m 90° MJ6128
|
|
Dimension of sliding table
|
2800X320mm
|
2800*320mm
|
|
Length of cut between saw blade and rip fence
|
2750mm
|
2750mm
|
|
Width of cut between saw blade and rip fence
|
1250mm
|
1250mm
|
|
Saw blade diameter
|
300mm
|
300mm
|
|
Height of cut
|
80mm
|
80mm
|
|
Speed of main saw spindle
|
4000/6000rpm
|
4000/6000rpm
|
|
Main spindle diameter
|
30mm
|
30mm
|
|
Tilting saw blade
|
0-45°
|
90°
|
|
Main motor
|
4.0/5.5kw
|
4.0/5.5kw
|
|
Scoring saw blade diameter
|
120mm
|
120mm
|
|
Speed of scoring saw blade
|
8000rpm
|
8000rpm
|
|
Scoring saw diameter
|
20mm
|
20mm
|
|
Scoring motor
|
0.75/1.1kw
|
0.75/1.1kw
|
|
Overall dimension
|
2850*3050*900mm
|
2850*3050*900mm
|
others mode
Sample
Precision panel saw machine
is used for cross-cutting of various kinds of wood-based panels, such as veneers, particleboards, fiberboards, plywood and solid wood panels, aluminum alloys, plexiglass panels, etc.
Packing & Delivery
The wooden box is sealed and packaged for safe transportation and effectively prevent bumps.
Because the machinery is relatively heavy, shipping is generally chosen.
Shipping and payment methods can be negotiated with customer service.
services
Pre-Sales Service
1.We have many exhibitions very year, hundreds of clients was coming to our booth for further communication.
2. 24-hours online Inquiry and consulting support.
3.Support sample testing .
4.We welcome you to visit our factory.
After-Sales Service
1. Training how to install the machine, training how to use the machine online.
2.Engineers available to clients' factory for training if necessary.
3.Guarantee for one year
4.24-hour technical support by email or calling
5.User-friendly English manual for machine using and maintaining
6.Free technician training for customers.
