Quick Details
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Lingqiao
-
Min Height:
-
340mm, 330 mm
-
Name:
-
hydraulic transmission 80 ton hydraulic jack with pressure gauge
-
Color:
-
Yellow Or Customized
-
Surface Treatment:
-
Rust-proof
-
MOQ:
-
1 Set
-
Application:
-
PC Strands Tensioning
-
Certificate:
-
CE,ISO9001:2008
-
Packing:
-
Wooden Case
-
Capacity(Load):
-
70 ton to 1500 ton or 700 KN to 15000 KN
Quick Details
-
Warranty:
-
1 year
-
Type:
-
Hydraulic Jack
-
Max Height:
-
445mm
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Lingqiao
-
Min Height:
-
340mm, 330 mm
-
Name:
-
hydraulic transmission 80 ton hydraulic jack with pressure gauge
-
Color:
-
Yellow Or Customized
-
Surface Treatment:
-
Rust-proof
-
MOQ:
-
1 Set
-
Application:
-
PC Strands Tensioning
-
Certificate:
-
CE,ISO9001:2008
-
Packing:
-
Wooden Case
-
Capacity(Load):
-
70 ton to 1500 ton or 700 KN to 15000 KN
hydraulic transmission 80 ton hydraulic jack with pressure gauge
Description of Jack

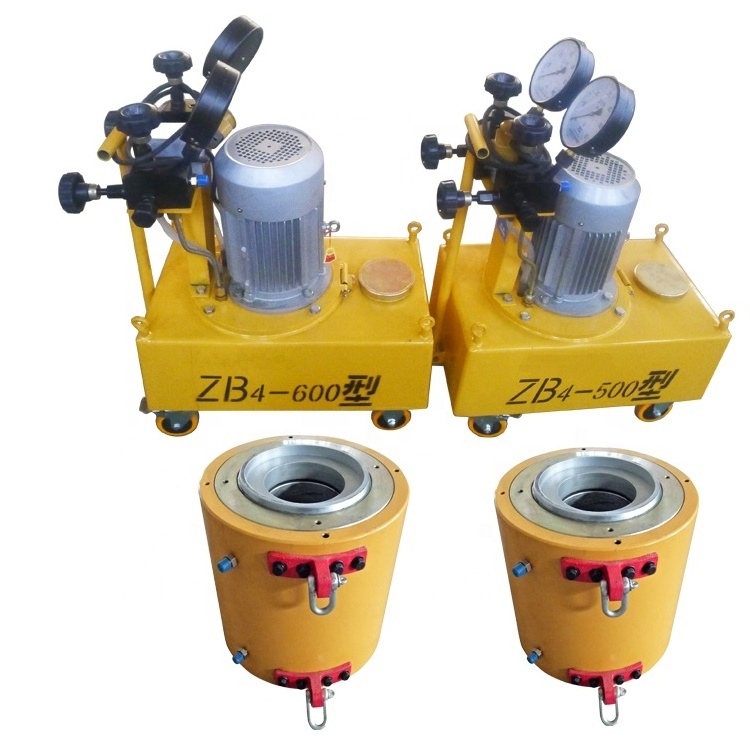

Hydraulic transmission 80 ton hydraulic jack with pressure gauge is light core-through jacks, which fit for various anchorages(group anchor) in prestressing tension operation.
The Jack can be utilized widely in post-tensioning operation for immense constructions,prestressed concrete bridges,ground anchorage,marine constructions,foundation anchorage, etc.
Feature:
- Tight structure
- Lightened weight
- Short axial length, strands saving by short reserved length in prestressing strand anchorage.
Technical Parameter
| Type |
Nominal tension force KN |
Nominal oil pressure MPg | Tension piston area m2 | Return piston area m2 | Return oil pressure MPa | Coss-core aperture mm | Stroke for tension mm | Overall size ΦA×L mm | Mass KG |
| YCW70B | 705 | 51 | 1.382×10-² | 0.636×10-² | <25 | Φ60 | 200 | Φ188×330 | 40 |
| YCW100B | 973 | 51 | 1.908×10-² | 0.534×10-² | <25 | Φ78 | 200 | Φ216×337 | 60 |
| YCW150B | 1493 | 51 | 2.927×10-² | 1.609×10-² | <25 | Φ103 | 200 | Φ283×376 | 117 |
| YCW200B | 1998 | 53 | 3.769×10-² | 2.168×10-² | <25 | Φ120 | 200 | Φ310×378 | 130 |
| YCW250B | 2480 | 54 | 4.594×10-² | 2.803×10-² | <25 | Φ140 | 200 | Φ345×382 | 188 |
| YCW300B | 3011 | 51 | 5.904×10-² | 3.518×10-² | <25 | Φ145 | 200 | Φ385×382 | 230 |
| YCW350B | 3529 | 52 | 6.786×10-² | 3.463×10-² | <25 | Φ165 | 200 | Φ410×389 | 280 |
| YCW400B | 3927 | 52 | 7.611×10-² | 4.595×10-² | <25 | Φ175 | 200 | Φ440×389 | 315 |
| YCW450B | 4490 | 51 | 8.804×10-² | 5.788×10-² | <25 | Φ175 | 200 | Φ465×413 | 364 |
| YCW500B | 5026 | 50 | 10.05×10-² | 4,775×10-² | <25 | Φ196 | 200 | Φ495×418 | 445 |
| YCW600B | 6050 | 50 | 12.1×10-² | 6.83×10-² | <25 | Φ196 | 200 | Φ530×443 | 550 |
| YCW650B | 6566 | 50 | 13.13×10-² | 6.291×10-² | <25 | Φ240 | 200 | Φ570×445 | 610 |
Accessories:
One set jack will complete with 2pcs oil pipes.
Application
One jack often be put in one wooden cease (plywood case).
Q :
Are there calibration certificate of the jack?
A :Our Jack are calibrated by China authority,is our China standard.But please kindly confirm you need.
Q :
What can I get the anchorage?
A :If you need the anchorage based on your drawing,just kindly provide the drawing for our check before producing.and we have 12.7mm(0.5") and 15.24mm(0.6") types of wedge.
Q :
What is your term of delivery?
A :We accept EXW, FOB Shenzhen,FOB Guangzhou,CFR,CIF,DDU.Kindly choose the one which is the most convenient or cost effective for you.The DDU is often delivery by express.
Q :
What about the lead time for the mass production?
A: We often arrange our product within 7 working days .But h onestly, it depends on the order quantity and the season you place the order.
