High Precision Optical Fiber Cleaver with 16 Cleaving Spots and 48000 Cleaves Fiber Cutter Tool with FTTH Fiber Holder

High Precision Optical Fiber Cleaver with 16 Cleaving Spots and 48000 Cleaves Fiber Cutter Tool with FTTH Fiber Holder

FOB Reference Price: Get Latest Price

≥1 Pieces

US $150

≥30 Pieces

US $145

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: shinho

Use:: Cable cutting

Warranty Time:: 1 year

Product name:: X-55B Auto Rotative Blad eFiber Cleaver

Mode:: Automatic

Cleaved Angle:: 0.5

Color:: Black

Cleaved Length:: 5-16mm

Certification:: RoHS,CE,ISO

Weight:: 340g

Feature:: cleaved position auto change

Quick Details

Type:: Fiber optic cleaver

Model Number:: X-55B

Place of Origin:: ANHUI

Brand Name:: shinho

Use:: Cable cutting

Warranty Time:: 1 year

Product name:: X-55B Auto Rotative Blad eFiber Cleaver

Mode:: Automatic

Cleaved Angle:: 0.5

Color:: Black

Cleaved Length:: 5-16mm

Certification:: RoHS,CE,ISO

Weight:: 340g

Feature:: cleaved position auto change

Product Description

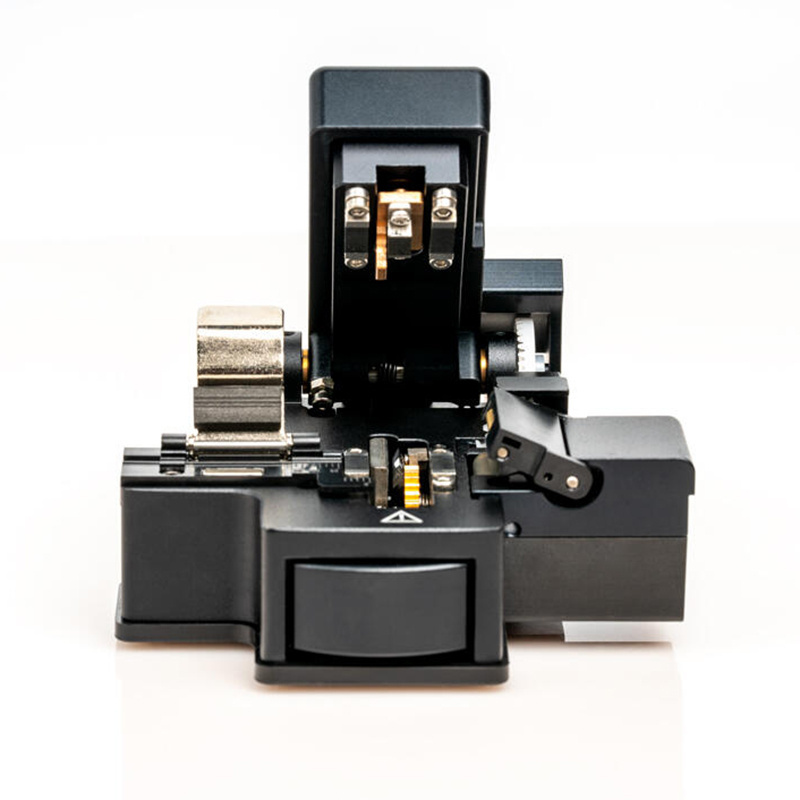

Model	X-55B Auto-rotate Fiber Cleaver
Bare fiber diameter	125µm
Coating diameter	0.25mm~0.9mm
Fiber type	Single tube fiber and Ribbon fiber（exchangeable）
Cleaved length	5~16mm
Cleaved angle	0.5°
blade life	48000
Mode	Automatic
Dimension	103mm(W)×93mm(D)×47mm(H)
Weight	340g
Color	Black
Package	Fiber Cleaver ,User Manual,Carrying Case,Screw driver

Product performance description

Shinho X-55B Fiber Cleaver is one step automatic one. It is a very robust fiber cleaver with user friendly design. It can change
the position of the cleaving blade automatically after every cleaving. It can also complete cleaving works including scrap
collection in one step, which will increase work efficiency a lot.

Details Images

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Automatic Cleave Position Return

Three in One Fixture

Automatic Collect Fiber Trash

Product Usage

---Export to Japan

--Small size, lightweight, and easy handling
·--- Applicable up to 12-fibre ribbon cleaving
· ---Fibre collector equipped as standard
· ---Simple and one-step operation
·--- One step to complete cleaving works including scrap collection
·--- Blade speed and anvil speed are mechanically controlled

---Automatic changes the position of the cleaving blade
---Support cleaved length 5~16mm
·--- Durable, Blade life more than 52000 times

Related Products

Packing&Shipping

Packed in carrying case, then into carton.We could deliver within 3 days for standard orders.
Delivered out by express, air or by sea according to customer's request.Deliver by Express or by Air for standard orders.
