Quick Details
-
Weight:
-
5800 KG
-
After-sales Service Provided:
-
Overseas service center available
-
Color:
-
Light Green red blue or depend on client's request
-
Cabin:
-
Warm Air or Fan is available
-
Tire::
-
AG Tire, Paddy Tire, Turf Tire
-
Option::
-
Air Brakes, Hydraulic Valve Out, ROPS, Canopy
-
Implement::
-

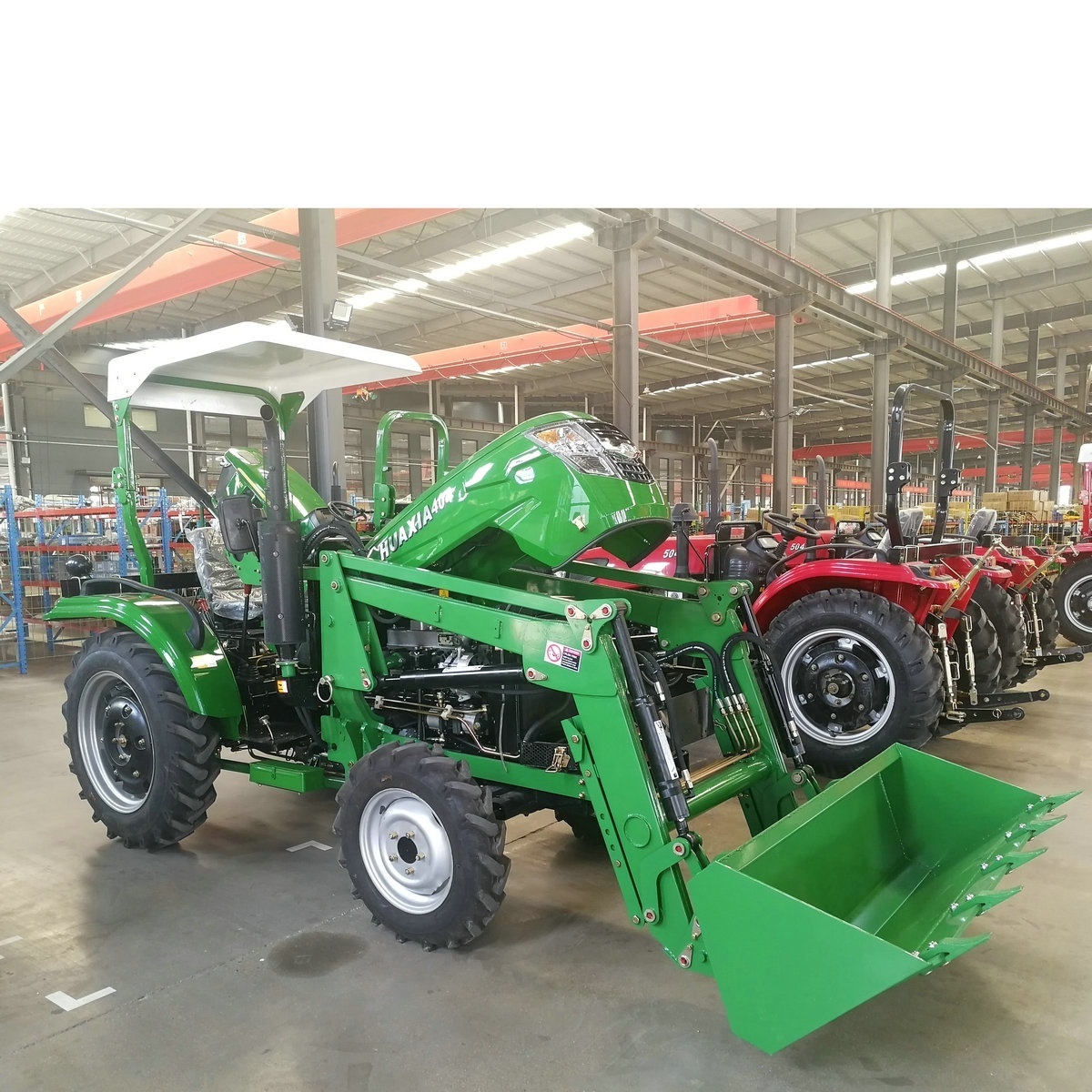

Loader, Plough, Mower and More Implements as per Client's request
-
Transmission box:
-
8F+2R
-
PTO:
-
2 speeds 540/720
-
Roll bar and canopy:
-
Available
-
Tire:
-
9.5-24/650-16 or 11.2-24/750-16
Quick Details
-
Brand Name:
-
Huaxia brand
-
Place of Origin:
-
Shandong, China
-
Engine Brand:
-
Laidong or Xichai
-
Weight:
-
5800 KG
-
After-sales Service Provided:
-
Overseas service center available
-
Color:
-
Light Green red blue or depend on client's request
-
Cabin:
-
Warm Air or Fan is available
-
Tire::
-
AG Tire, Paddy Tire, Turf Tire
-
Option::
-
Air Brakes, Hydraulic Valve Out, ROPS, Canopy
-
Implement::
-
Loader, Plough, Mower and More Implements as per Client's request
-
Transmission box:
-
8F+2R
-
PTO:
-
2 speeds 540/720
-
Roll bar and canopy:
-
Available
-
Tire:
-
9.5-24/650-16 or 11.2-24/750-16
35HP Tractor Full Specification
|
Tractor Parameters |
Model |
304 |
|
|
Drive Type |
4WD |
||
|
Overall Dimensions L×W×H(mm) |
2860X1220X1380 |
||
|
Wheel Track(mm) |
Front |
1200 |
|
|
Rear |
1242 |
||
|
Wheel Base(mm) |
1730 |
||
|
Ground Clearancre(mm) |
Under Front Axle |
300 |
|
|
Under Rear Axle |
345 |
||
|
Rated Traction Force(N) |
In Paddy Fields |
4950 |
|
|
In Dry Fields |
6940 |
||
|
Construction Mass(Kg) |
1560 |
||
|
Min. Turning Radius(m) |
2.40 |
||
|
Theoretical Speed(Km/h) |
Forward |
1.28,1.86,2.98,4.50,6.65,9.63,15.45,23.33 |
|
|
Reverse |
1.29,1.87,3.00,4.53,6.70,9.70,15.56,23.50 |
||
|
Engine Specifications |
Model |
LD3T30 |
|
|
Type |
3-cylinder,4-storke cycle,radiator cooling |
||
|
12-hour Rated Power(Kw/hp) |
22.0/30.0 |
||
|
Rated Speed(rpm) |
2400 |
||
|
Bore×Stroke(mm) |
90×95 |
||
|
Total Displacement(L) |
1.812 |
||
|
Drive System |
Clutch |
Dual-stage Or Single-stage |
|
|
Gear Box |
(4+2)×2 Shuttle shift syuchmesh |
||
|
Main Drive |
One Pair of Spiral Bevel gears |
||
|
Differential |
Bevel Gear |
||
|
Differential Lock |
Jaw Lock |
||
|
Final Transmissions |
Spur Gear, External Gearing |
||
|
Travelling Mechanism |
Tyre |
front |
6.50-16(stripe pattern) |
|
rear |
11.2-24(herringbone pattern) |
||
|
Steering Gear |
Full Hydraulic steering |
||
|
Brake |
Disk type |
||
|
Working Device |
Hydraulic System |
Lifting Capacity at 610 mm Behind Lift Point(Kg) |
415kg |
|
3-point Suspension |
Category:I |
||
|
P.T.O.Shaft |
Rotating Speed(rpm) |
540/1000 or 540/720 |
|
|
Spline size |
6-φ35 Rectangular spline |
||
Factory Advantages:
|
Factory Scale |
19 years, Over 200 Workers, Factory Area 50,000.00M 2 |
|
Company Technology |
Professional R&D Center, 7 National Patents |
|
Tractor with different Chassis |
One Cylinder Belt Transmission Tractor(18-28HP), TY Chassis Tractor (18-35HP), HX Chassis Tractor (30-40HP), HX Chassis Tractor(40-55HP). HX Chassis Tractor (100hp-120HP), |
|
Tractor Transmission |
6+1 Shift Gear Box, 8+2 Shift Gear Box, Creeping Gear Box and Shuttle Gear Box |
|
Tractor with High quality Engine |
YTO Engine, JD Engine, LD Engine and Xichai engine |
|
Tractor with Hotsale Hood |
TY Square Hood, DY Hood, other new designed Hood. With Hood R&D Capacity. |
|
Quality Control System |
Every Materials, Every Parts, Every Assembly Line, Every Process and Every Worker |
|
Overseas Market |
Canada, Chile, Argentina, Australia, New Zealand, South Africa, Mozambique, Egypt, Algeria, England, Germany, Norway, Netherlands, Albania, Pakistan, Malaysia |
|
Warranty Period |
24 Months |
|
Tractor Implements |
Front End Loader, Backhoe Loader, Post hole digger, Fork Lift, Slasher, Rotary Tiller, Splitting machine, Wood logger…… |
|
High Quality + Competitive Price + Complete Service = MARKET WINNER |
|
Image 1
Image 2
Image 3
Image 4
Implements
* 24 hours on line service for pre sales and after sales service,revert and solve
the problems promptly.
* Warranty 24 months,and guarantee best quality of our goods.If the tractors broke
down under proper operation,we shall delivery the new parts for replace freely.
