Quick Details
-
Brand Name:
-
FOCUS Diesel Concrete Mixer
-
Motor Power:
-
15kw
-
Charging Capacity:
-
800L
-
Reclaiming capacity:
-
500L
-
Speed of Mixing Drum:
-
13r/min
-
Water Supply Mode:
-
pumping
-
Working Cycle Period:
-
60s
-
Discharge Way:
-
automatic hopper
-
Outline Dimension:
-
5230x2300x5450mm
-
Weight (KG):
-
3100 kg
-
productivity:
-
18-20cbm/h gasoline portable concrete mixer
-
aggregate dia.:
-
60mm
-
weight:
-
3100kg
-
max. drag speed:
-
20km/h gasoline portable concrete mixer
-
lifting motor:
-
5.5kw
-
pump motor:
-
0.75kw
-
power source:
-
380v,50hz,3 phase
-
diesel concrete mixer:
-
available
-
diesel engine:
-
DEUTZ
-
Name:
-
Diesel Concrete Mixer
Quick Details
-
Mixing Power:
-
7.5kw
-
Productivity:
-
20M3/H
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
FOCUS Diesel Concrete Mixer
-
Motor Power:
-
15kw
-
Charging Capacity:
-
800L
-
Reclaiming capacity:
-
500L
-
Speed of Mixing Drum:
-
13r/min
-
Water Supply Mode:
-
pumping
-
Working Cycle Period:
-
60s
-
Discharge Way:
-
automatic hopper
-
Outline Dimension:
-
5230x2300x5450mm
-
Weight (KG):
-
3100 kg
-
productivity:
-
18-20cbm/h gasoline portable concrete mixer
-
aggregate dia.:
-
60mm
-
weight:
-
3100kg
-
max. drag speed:
-
20km/h gasoline portable concrete mixer
-
lifting motor:
-
5.5kw
-
pump motor:
-
0.75kw
-
power source:
-
380v,50hz,3 phase
-
diesel concrete mixer:
-
available
-
diesel engine:
-
DEUTZ
-
Name:
-
Diesel Concrete Mixer

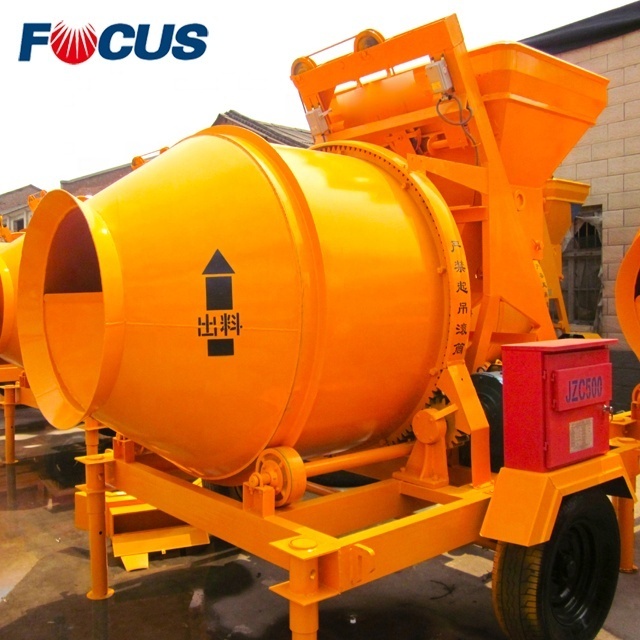

High Quality Construction Industry Diesel Self Loading Lifting Concrete Mixer Machine
Why would our clients choose FOCUS Diesel Concrete Mixer?
FOCUS gasoline portable concrete mixer is a kind of reversal discharging mobile concrete mixer, which can mix semi-rigid and plastic concrete. gasoline portable concrete mixer
The mixing drum is gear-driven and has characteristics of balance running, simple operation and high mixing quality. FOCUS gasoline portable concrete mixer can be composed as a medium-sized mixing station matched with feeding and weighing equipments, widely used in different kinds of construction projects, applicable in general construction sites, roads, bridges and hydropower projects, especially for urban residential construction. gasoline portable concrete mixer
FOCUS JZC Diesel Concrete Mixer main parameters:
|
Model parameter |
JZC350 |
JZC500 |
JZC500 |
|
Discharge vol. |
350L |
500L |
500L |
|
Charging vol. |
560L |
800L |
800L |
|
Output capacity |
10-14.5m³/h |
18-20 m³/h |
25-30 m³/h |
|
Aggregate dia. |
60mm |
60mm |
70mm |
|
Rotating speed |
14r/min |
13r/min |
13r/min |
|
Max. drag speed |
20km/h |
20km/h |
|
|
Mixing motor |
5.5kw |
7.5kw |
7.5kw |
|
Lifting motor |
4.5kw |
5.5kw |
5.5kw |
|
Pump motor |
0.55kw |
0.75kw |
0.75kw |
|
Weight |
1950kg |
3100kg |
3000kg |
|
Dimension LxWxHmm |
2766x2140x 3000 |
5230x2300x 5450 |
5200x2065x 3200 |
