Quick Details
-
Application:
-
Scanner
-
Series:
-
MIPI Camera Module
-
Features:
-
13MP IMX258 Camera Module
-
Mounting Type:
-
MIPI
-
Description:
-
IMX258 Camera Module
-
Pixel:
-
13MP
-
Chip Type:
-
IMX258
-
Array Size:
-
4208*3120
-
Interface:
-
MIPI CSI
-
View Angle:
-
78.4°
-
Focus Range:
-
8cm ~ infinity
-
F.NO:
-
2.0
-
Distortion:
-
< 1.5%
-
VCM:
-
LY13M6528-51CS
-
Driver IC:
-
DW9714P
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SINCERE FIRST
-
Model Number:
-
SF8DX258Y11-ZX
-
Application:
-
Scanner
-
Series:
-
MIPI Camera Module
-
Features:
-
13MP IMX258 Camera Module
-
Mounting Type:
-
MIPI
-
Description:
-
IMX258 Camera Module
-
Pixel:
-
13MP
-
Chip Type:
-
IMX258
-
Array Size:
-
4208*3120
-
Interface:
-
MIPI CSI
-
View Angle:
-
78.4°
-
Focus Range:
-
8cm ~ infinity
-
F.NO:
-
2.0
-
Distortion:
-
< 1.5%
-
VCM:
-
LY13M6528-51CS
-
Driver IC:
-
DW9714P
Products Description
|
Sensor:
|
IMX258-0AQH5-C
|
Pixels:
|
13MP
|
|||
|
Focus Range:
|
8cm to Infinity
|
Lens:
|
50065B8
|
|||
|
F.NO:
|
2.0
|
Fov(D):
|
78.4°
|
|||
|
TV Distortion:
|
＜1.5%
|
VCM:
|
LY13M6528-51CS
|
|||
|

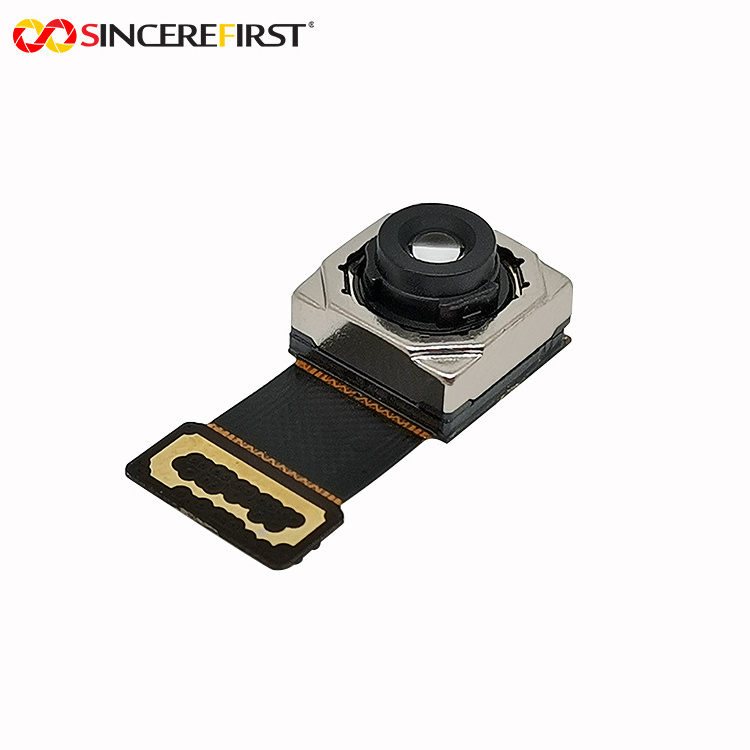

SF8DX258Y11-ZX IMX258 Description:
IMX258-0AMH5-C is a diagonal 5.867mm (Type 1/3.06) 13 Mega-pixel CMOS active pixel type stacked image sensor with a square pixel array. It adopts Exmor RS™ technology to achieve high speed image capturing by column parallel A/D converter circuits and high sensitivity and low noise image (comparing with conventional CMOS image sensor) through the backside illuminated imaging pixel structure. By introducing spatially varying exposure technology, high dynamic range still pictures and movies are achievable. It equips an electronic shutter with variable integration time. It operates with three power supply voltages: analog 2.7 V, digital 1.2 V and 1.8 V for input/output interface and achieves low power consumption. In addition, this product is designed for use in cellular phone and tablet pc. When using this for another application, Sony does not guarantee the quality and reliability of product. Therefore, don’t use this for applications other than cellular phone and tablet pc. Consult your Sony sales represent ative if you have any questions. SF8DX258Y11-ZX IMX258 Features: ◆Back-illuminated and stacked CMOS image sensor Exmor RSTM ◆High Dynamic Range (HDR) mode with raw data output. ◆High signal to noise ratio (SNR). ◆Full resolution @30fps (Normal / HDR). 4K2K @30fps (Normal / HDR) 1080p @60fps (Normal ) ◆Output video format of RAW10/8. ◆Pixel binning readout and V sub-sampling function. ◆Independent flipping and mirroring. ◆CSI-2 serial data output (MIPI 2lane/4lane, Max. 1.3Gbps/lane, D-PHY spec. ver. 1.1 compliant) ◆2-wire serial communication. ◆Two PLLs for independent clock generation for pixel control and data output interface. ◆Dynamic Defect Pixel Correction. ◆Fast mode transition. (on the fly) ◆Dual sensor synchronization operation. ◆4K bit of OTP ROM for users. ◆Built-in temperature sensor MIPI Camera Module, MIPI Camera Board, Camera Sensor Module, Phone Camera Module As our manufacturing facilities provide optics and camera modules design service and manufacturing of electro-optical subsystem, optical lens, camera module, image processing and laser sensing. We dispose of an unsurpassed design and development capacity, comprising an in-house optics & photonics division, an hardware division and an software integration division making us the ideal choice for clients who wish to outsource crucial designs and manufacturing to a highly qualified and trusted partner. As the camera module structure, we divide into 3 main sections: 1. Image Sensor 2. Camera Lens Module + Optical Filter 3. Sensor Driver and Interface FPC Camera Module Application Areas Camera Module For Imaging And Vision Solutions, Integrated Complex And Customized Technology, Machine Vision, Intelligent Systems, Future Security, Optical Technology Solutions, Camera Module Customized Solutions, Internet Of Things End-to-end Solution, Iris Recognition Technology, Iris Solutions, Face Recognition, VR High End Camera Solutions, Smart Home Solutions, Intelligent Hardware Solutions, Professional Camera Modules, Specially Designed For Small Uav, Airborne Camera Modules, Uav Solutions, Uav Special Modules, Drone Solutions, Aerial Filming Solutions, Optical Technology Solutions, Mobile Phone Camera Module, Camera Solutions, Optronics Solutions Imaging Technology Solutions, Video Technology Solutions, Optoelectonic Research, Infrared Imagers For Industry, Embedded Systems Solutions Main Developmet Board, Graphics Processing Unit, System Adaption Main Developmet Board: Arduino, ESP32, Raspberry Pi, NVIDIA Graphics Processing Unit: Ambarella, Rockchip, MediaTek, Qualcomm, NVIDIA, ATI System Adaption: Self-developed Software, Android, Window, MAC-IOS
