Quick Details
-
Brand Name:
-
XDEM
-
Mounting class:
-
3
-
Capacity:
-
2-3ton
-
Function:
-
Hydraulic
-
Local Service Location:
-
None
-
weight:
-
500kg
Quick Details
-
Warranty:
-
1 Year
-
Weight (KG):
-
500
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
XDEM
-
Mounting class:
-
3
-
Capacity:
-
2-3ton
-
Function:
-
Hydraulic
-
Local Service Location:
-
None
-
weight:
-
500kg

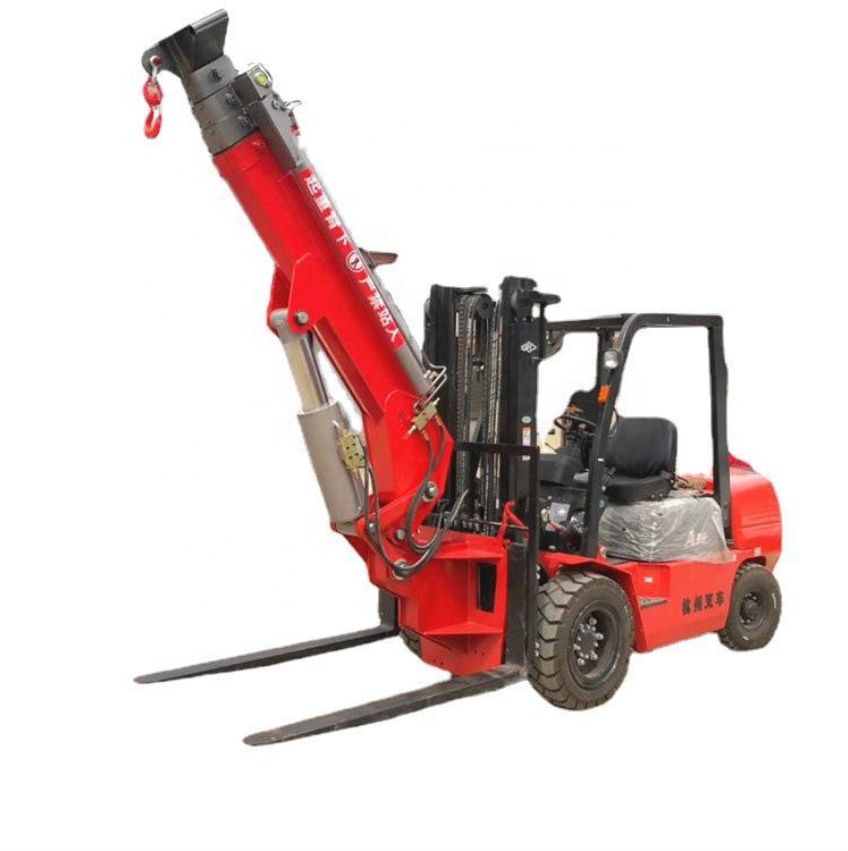

XDEM Hydraulic Telescopic Forklift Crane Forklift Attachment Fork Mounted Jib
Forklift crane is a lifting device installed on the basis of a forklift, to achieve a multi-purpose machine, do not spend money to buy other cranes, product safe operation, simple installation and easy to use.
1. The outrigger has a large span and good working stability.
2. The six-sided boom stretches smoothly and has greater strength.
3. Imported multi-stage telescopic oil cylinder, multi-stage boom telescopic in sequence.
4. Export-level hydraulic components make the whole machine more reliable.
5. Multi-way outrigger control valve, the outrigger cylinder can be adjusted individually, which is convenient and quick.
6. The surface of the structural parts is painted after shot blasting, and the appearance is bright and beautiful.
7. The working speed is fast and the micro mobility is good.
8. Using high-strength steel plate, the structure is more compact, and the installation space of the whole machine is small.
9. The sheet material is cut by a laser cutting machine, and the streamlined appearance is quite beautiful.
Parameters:
Full reach |
5.3m |
6.6m |
7.9m |
9.3m |
9.3m (fork mounted) |
10.5m NEW |
Number of boom sections |
Three-section
|
Four-section
|
Five-section |
Six-section |
Six-section |
Six-section |
Lifting weight |
2T at 2.6m
|
3T at 2.8m
|
3T at 3.0m 500kg at 7.9m |
4T at 3.2m
|
4.5T at 3.2m 600kg at 9.3m |
5T at 3.5m 600kg at 10.5m |
Full range |
2.6m |
2.8m |
3.0m |
3.2m |
3.0m |
3.3m |
Equipped forklift |
3T-5T |
3T-5T |
3T-5T |
5T-8T |
5T-8T |
7T-10T |
