Quick Details
-
Dimension(L*W*H):
-
9800*4000*3400mm
-
Cardboard thickness:
-
0.8-3mm
-
Folding size:
-
Rmin:10mm Rmax:160mm
-
Folding ear size:
-
10-90mm (Optional140mm)
-
Manipulator model:
-
YK600XG-200
-
Position precision:
-
≤±0.1mm
-
Production speed:
-
≤35pcs/min
-
Stacking height of tissue paper:
-
480mm
-
Stacking height of cardboard:
-
1000mm
-
Gas source requirements:
-
50L/min 0.8Mpa
-
Total power of equipment:
-
45KW/AC380V
-
Marketing Type:
-
New Product 2021
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MOSUN
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
9800*4000*3400mm
-
Cardboard thickness:
-
0.8-3mm
-
Folding size:
-
Rmin:10mm Rmax:160mm
-
Folding ear size:
-
10-90mm (Optional140mm)
-
Manipulator model:
-
YK600XG-200
-
Position precision:
-
≤±0.1mm
-
Production speed:
-
≤35pcs/min
-
Stacking height of tissue paper:
-
480mm
-
Stacking height of cardboard:
-
1000mm
-
Gas source requirements:
-
50L/min 0.8Mpa
-
Total power of equipment:
-
45KW/AC380V
-
Marketing Type:
-
New Product 2021
-
Certification:
-
CE

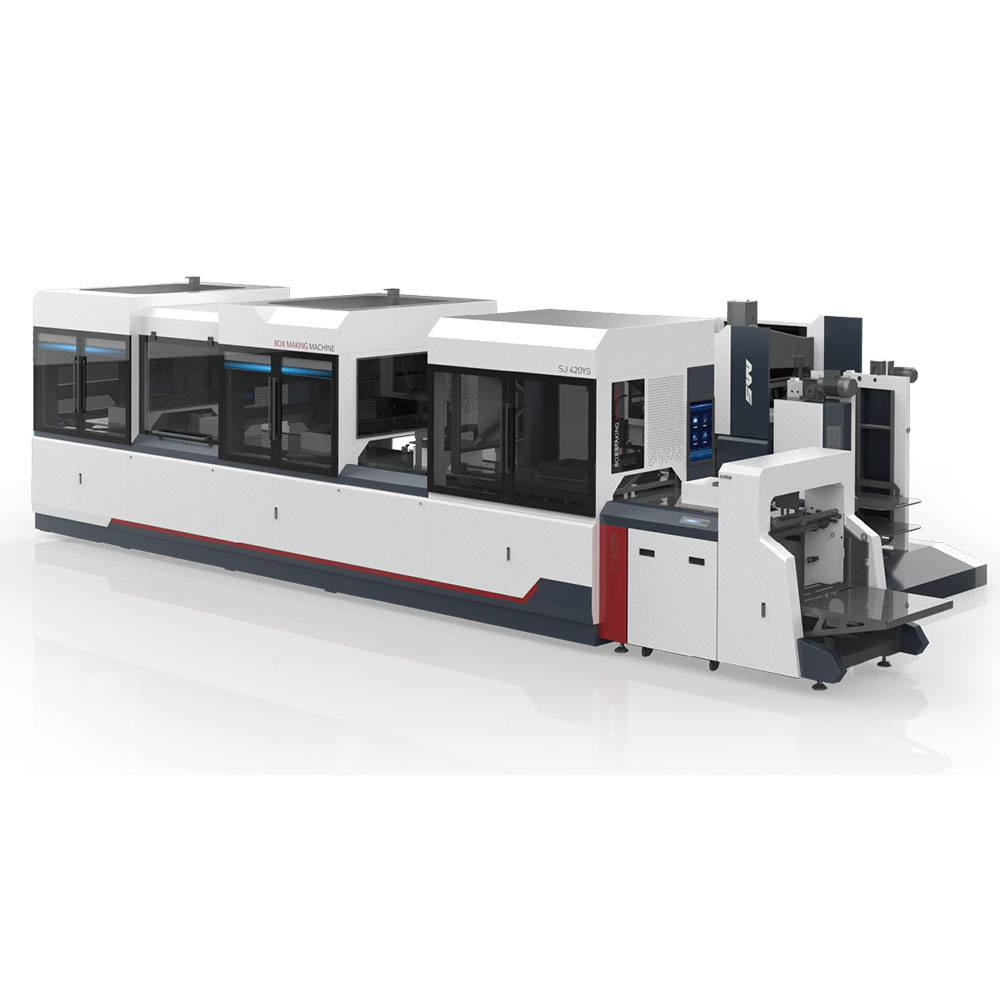

Product Appearance
Products Description
USAGE:
The machine is mainly suitable for some high-quality boxes, such as apple mobile phone box, jewelry gift box, cosmetics box and other high-end gift boxes.
FACTURERS:
1. The box type is flexible
2. Wide market application
3. More beautiful appearance
4.Realize capacity monitoring, remote troubleshooting and system upgrade
2. Wide market application
3. More beautiful appearance
4.Realize capacity monitoring, remote troubleshooting and system upgrade
|
Model
|
MSS-420Y-S
|
MSS-420Y
|
|
|
Paper Size(AxB)
|
Amin:95mm
Amax:610mm Bmin:180mm Bmax:850mm |
190-1030mm
|
|
|
Paper Thickness
|
80-300g/m²
|
100-630mm
|
|
|
Carton Size
|
Wmin:60mm
Wmax:350mm Lmin:100mm Lmax:450mm Hmin:15mm Hmax:150mm |
L min 100mm L max 420mm
W min 50mm W max 320mm H min 15mm H max 150mm |
|
|
Cardboard Thickness
|
0.8-3mm
|
|
|
|
Folding Size
|
Rmin:10mm
Rmax:160mm
|
2-1100mm
|
|
|
Fold Ear Depth
|
10-90mm (optional 140mm)
|
|
|
|
Manipulator Model
|
YK600XG-200
|
|
|
|
Position Precision
|
≤±0.1mm
|
|
|
|
Production Speed
|
≤35pcs/min
|
≤18pcs/min
|
|
|
Stacking Height of Tissue Paper
|
480mm
|
|
|
|
Stacking Height of Cardboard
|
1000mm
|
|
|
|
Gas Source Requirement
|
50L/min 0.8Mpa
|
|
|
|
Total Power of Equipment
|
45KW/AC380V
|
|
|
|
Equipment Size
|
9800*4000*3400mm
|
7200*4000*3400mm
|
|
Details Images
POSITION PART
WARPPING PART
MAIN CONTROLLER PART
