Quick Details
-
Controller Type:
-
pwm/mppt
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
ce, ISO9001/14001 CE ROHS
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ESG
-
Model Number:
-
ES-3KW
-
Output Voltage (V):
-
220v
-
Output Frequency:
-
50/60hz
-
Work Time (h):
-
8 Hours
-
Name:
-
3kw Home Solar Power System
-
Specification:
-
Normal
-
Product name:
-
residential 3kw solar panel kit 2000w off-grid solar panel system
-
Solar panel:
-
Mono or Poly 250W / 36V * 4pcs
-
Battery:
-
12V/250Ah*4pcs
-
Inverter Type:
-
Off-grid Pure Sine Wave
-
Inverter:
-
3KW 48v Pure Sine Wave
Quick Details
-
Application:
-
Industrial
-
Solar Panel Type:
-
Monocrystalline Silicon, Polycrystalline Silicon
-
Battery Type:
-
Lead-Acid, Lithium Ion
-
Controller Type:
-
pwm/mppt
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
ce, ISO9001/14001 CE ROHS
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ESG
-
Model Number:
-
ES-3KW
-
Output Voltage (V):
-
220v
-
Output Frequency:
-
50/60hz
-
Work Time (h):
-
8 Hours
-
Name:
-
3kw Home Solar Power System
-
Specification:
-
Normal
-
Product name:
-
residential 3kw solar panel kit 2000w off-grid solar panel system
-
Solar panel:
-
Mono or Poly 250W / 36V * 4pcs
-
Battery:
-
12V/250Ah*4pcs
-
Inverter Type:
-
Off-grid Pure Sine Wave
-
Inverter:
-
3KW 48v Pure Sine Wave
ESG Family 3 people inverter controller battery system residential 3kw solar panel kit 3500w off-grid solar power system
Why choose us?
Why choose us ?
Why choose us?
| Power system | Solar panel | UNIT/USD | controller | UNIT/USD | battery | UNIT/USD | Working time/Power generation | Inverter |
| 3000W | 250W*6pcs | 780 | 30A | 59.1 | 12V150AH*4pcs | 510.3 | 6kwh per day | 3000w/48V |
| 3000W | 250W*8pcs | 1040 | 40A | 61.8 | 12V250AH*4pcs | 682.4 | 8kwh per day | 3000w/48V |
| 5000W | 250W*8pcs | 1040 | 50A | 245.5 | 12V240AH*8 | 1323.3 | 8kwh per day | 5000W/96V |
| 5000W | 250W*12pcs | 1440 | 60A | 245.5 | 12V200AH*8 | 1071.7 | 12kwh per day | 5000W/96V |
| 5000W | 250W*3pcs | 390 | 30A | 43.6 | 12V180AH*2 | 255.1 | 3kwh per day | 5000W/24V |
ESG Family 3 people inverter controller battery system residential 3kw solar panel kit 3500w off-grid solar power system

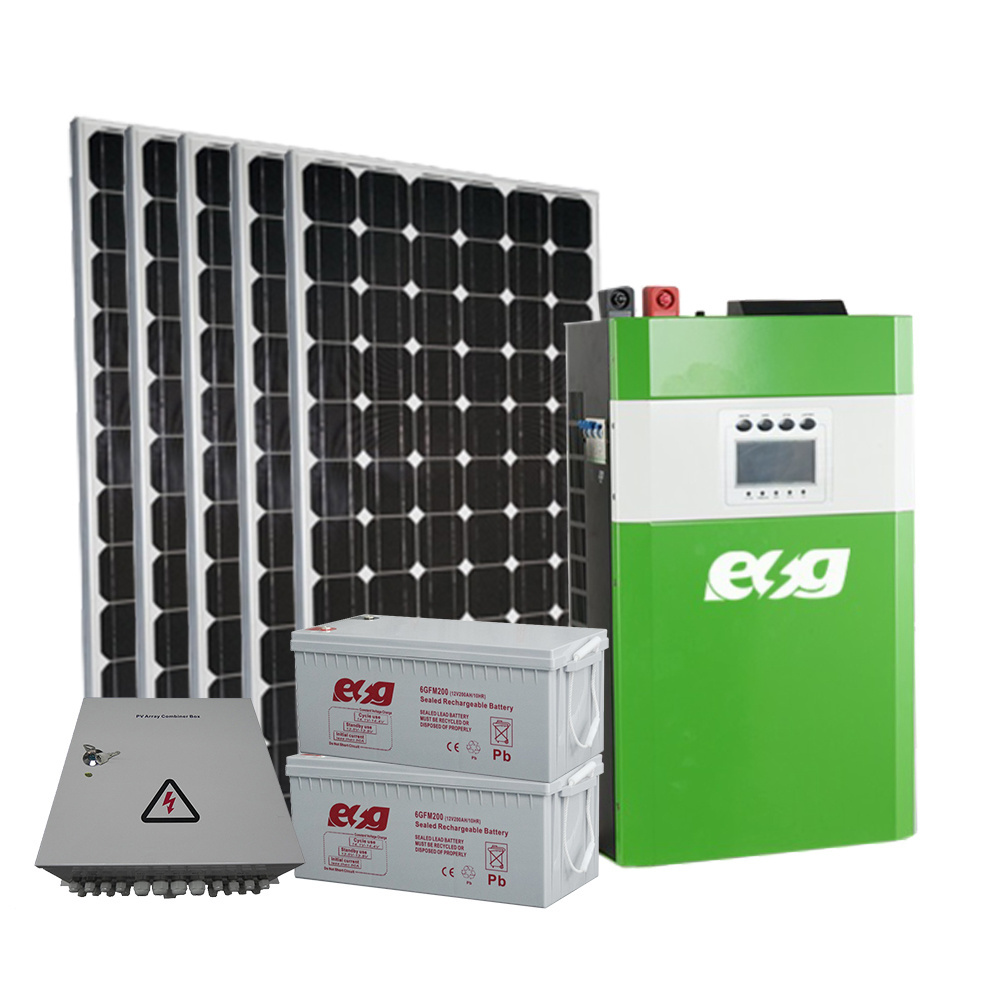

3000w Solar System Detail
ESG Family 3 people inverter controller battery system residential 3kw solar panel kit 3500w off-grid solar power system
| Items | Description | Quantity |
| Solar panel | 300W 31V Mono Solar Panel | 5pcs |
| PV array box | 6 strings input PV array combiner box | 1pcs |
| Inverter with PWM 50A Solar controller | HY3022P 3KVA 12V hybrid solar inverter | 1pcs |
| Battery | Deep Cycle battery 12V 200Ah | 2pcs |
| Solar mounting brackets | Aluminium brackets can mount 5pcs solar panels | 1sets |
| Solar cable & connectors | 100m 4mm2 solar cable & 5sets MC4 connectors | 100m+5sets |
ESG Family 3 people inverter controller battery system residential 3kw solar panel kit 3500w off-grid solar power system
Main Application for Solar System
ESG Family 3 people inverter controller battery system residential 3kw solar panel kit 3500w off-grid solar power system
ESG Family 3 people inverter controller battery system residential 3kw solar panel kit 3500w off-grid solar power system
Installation More Easily
ESG Family 3 people inverter controller battery system residential 3kw solar panel kit 3500w off-grid solar power system
ESG Family 3 people inverter controller battery system residential 3kw solar panel kit 3500w off-grid solar power system ome 3 people inverter controller battery complete system residential 3kw solar panel kit 3000w off-grid solar power system
For All Model We Can Customized On Your Request !!!
ESG Family 3 people inverter controller battery system residential 3kw solar panel kit 3500w off-grid solar power system
Detail Technical Parameter for System Part
ESG Family 3 people inverter controller battery system residential 3kw solar panel kit 3500w off-grid solar power system
Solar Panel :
ESG Family 3 people inverter controller battery system residential 3kw solar panel kit 3500w off-grid solar power system
| Solar Panel characteristics: | |
| Type of solar cell | Monocrystalline |
| Max-power:Pm(W) | 250 |
| Lay up of solar cell | 8 (6*12)PCS |
| Max-power voltage: Vm(V) | 37.2V |
| Max-power current: Im(A) | 6.72A |
| Open-circuit voltage:Voc(V) | 45V |
| Short-circuit current: Isc(A) | 7.30A |
| Max-system voltage(VDC) | 1000V |
| Operating temperature(℃) | -40℃~+85℃ |
| Power tolerance | 0~ +6W |
| Dimension of solar module | 1640*982*40mm |
| Gross weight of solar module | 19.4Kg |
| Front Cover | Low-iron Tempered glass/ 3.2mm |
| Frame | Anodization aluminum |
| Junction Box (protection degree) | IP65 |
| Hailstone Impact | 25mm at 23m/s |
| Qty/CTN | 2PCS |
ESG Family 3 people inverter controller battery system residential 3kw solar panel kit 3500w off-grid solar power system
Solar Controller
|
Model:ESG 12V/24V/48V-series |
40A |
50A |
60A |
|||||
|
Charge Mode |
Maximum Power Point Tracking |
|||||||
|
Method |
3 stages: fast charge(MPPT),constant voltage, floating charge |
|||||||
|
System Type |
DC12V/24V/48V |
Automatic recognition |
||||||
|
Soft Start Time |
12V/24V/48Vsystem |
≤10S |
||||||
|
Dynamic Response Recovery Time |
12V/24V/48Vsystem |
500us |
||||||
|
Conversion Efficiency |
12V/24V/48Vsystem |
≥96.5%,≤99% |
||||||
|
PV Modules Utilization Rate |
12V/24V/48Vsystem |
≥99% |
||||||
ESG Family 3 people inverter controller battery system residential 3kw solar panel kit 3500w off-grid solar power system T
Three type 3Kw system :
3kw off grid home system with MPPT controlle invete and lithium battery
1. 3kw off grid home system with MPPT controlle invete and lithium battery all in one machine back up
3kw wind and solar hybridd system lead acid battery system
3kw wind and solar on grid system
Home 3 pe
System Testing
Packaging:
1pc in a color gift box,4pcs/ctn
1700pc/20FCL,3400pcs/40HQ
