- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
SOKE
-
Voltage:
-
380V/50HZ
-
Power:
-
15KW
-
Dimension(L*W*H):
-
2700x1500x1000mm
-
Weight:
-
2300 kg
-
Features:
-
flat pushing
-
Raw materials:
-
Concrete
-
Product name:
-
Building House Purline Forming Machine For Sale
-
Usage:
-
Precast Buildings
-
Keywords:
-
Prestressed Concrete Hollow Slab Forming Machine
-
Type:
-
Sandwich Wall Panel Forming Machine
-
Use:
-
Concrete Hollow Core Slab Used
-
Main process:
-
Forming Demoulding
-
Finished products:
-
Hollow Core Wall Panel
-
Wall panel Type:
-
Acotec Wall Panels
-
Use1:
-
Lightweight Hollow Core Wall Panel Machine
Quick Details
-
Application:
-
produce concrete lintel and beam
-
Production Capacity:
-
1.3-1.5m/min
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SOKE
-
Voltage:
-
380V/50HZ
-
Power:
-
15KW
-
Dimension(L*W*H):
-
2700x1500x1000mm
-
Weight:
-
2300 kg
-
Features:
-
flat pushing
-
Raw materials:
-
Concrete
-
Product name:
-
Building House Purline Forming Machine For Sale
-
Usage:
-
Precast Buildings
-
Keywords:
-
Prestressed Concrete Hollow Slab Forming Machine
-
Type:
-
Sandwich Wall Panel Forming Machine
-
Use:
-
Concrete Hollow Core Slab Used
-
Main process:
-
Forming Demoulding
-
Finished products:
-
Hollow Core Wall Panel
-
Wall panel Type:
-
Acotec Wall Panels
-
Use1:
-
Lightweight Hollow Core Wall Panel Machine

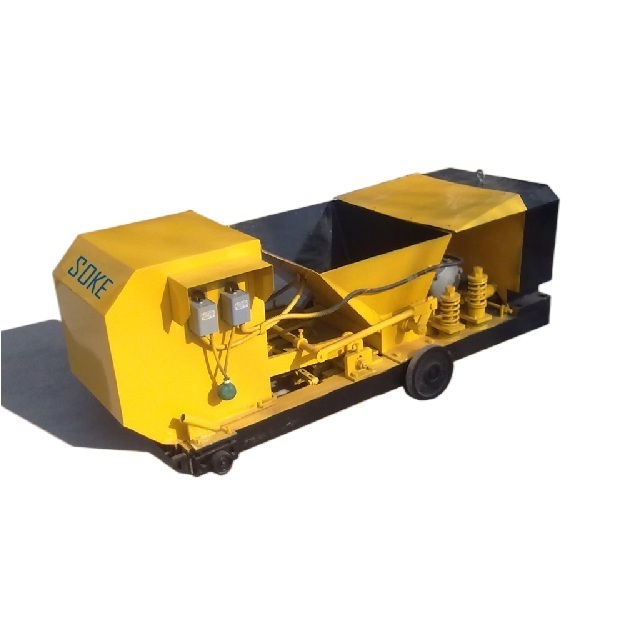

Prestressed concrete Lintel,Beam makingMachine
Feature of
Prestressed concrete Lintel,Beam makingMachine
The
Prestressed concrete Lintel,Beam makingMachine
is used for the production of precast concrete lintel,precast concrete beam,precast concrete pillar etc.
precast concrete lintel,precast concrete beam,precast concrete pillar
of pre-stressed concrete typically used in the construction of floors in multi-storey residential, commercial, office, and industrial buildings. It is also possible to use
precast concrete lintel,precast concrete beam,precast concrete pillar
in vertical or horizontal installations as walls or noise barriers.
Prestressed concrete Lintel,Beam making Machine description
1. The machine is used for the production of
precast concrete lintel,precast concrete beam,precast concrete pillar.
2. The machine uses slipformer and extruder technology.
3. The raw materials are cement, sand and aggregate.
4. The machine can make 1.4-1.6m/min precast concrete lintel,precast concrete beam,precast concrete pillar .
5. The prestressing system can prestress the steel wire.
6. The machine can make different sizes of precast concrete lintel,precast concrete beam,precast concrete pillar .
2. The machine uses slipformer and extruder technology.
3. The raw materials are cement, sand and aggregate.
4. The machine can make 1.4-1.6m/min precast concrete lintel,precast concrete beam,precast concrete pillar .
5. The prestressing system can prestress the steel wire.
6. The machine can make different sizes of precast concrete lintel,precast concrete beam,precast concrete pillar .
Prestressed concrete Lintel,Beam making Machine specification
Specification of
Prestressed concrete
Beam making Machine
|
Concrete beam forming machine
|
Motor power(kw)
|
Vibrator
Power
|
Forming speed (m/min)
|
Holes No.
|
Dia. of holes
|
Dimension
LxWxH(m)
|
Weight
(kg)
|
|||||||
|
120x370
|
4.0
|
1.5
|
1.2-1.4
|
3
|
Φ70
|
2.05x0.65x0.67
|
810
|
|||||||
|
120x370x2
|
5.5
|
3.0
|
1.2-1.4
|
6
|
Φ70
|
2.05x1.04x0.67
|
1320
|
|||||||
|
120x240
|
3.0
|
0.8
|
1.2-1.4
|
2
|
Φ70
|
2.00x0.50x0.67
|
640
|
|||||||
|
120x240x2
|
4.0
|
2.2
|
1.2-1.4
|
4
|
Φ70
|
2.10x0.80x0.70
|
960
|
|||||||
|
180x240
|
4.0
|
1.5
|
1.2-1.4
|
1
|
Φ70
|
2.10x0.85x0.72
|
840
|
|||||||
|
120x240+120x370
|
5.5
|
3.0
|
1.2-1.4
|
2
|
Φ70
|
2.10x0.85x0.72
|
1134
|
|||||||
|
(120+180)x370
|
4.0
|
2.2
|
1.2-1.4
|
3
|
Φ70
|
2.10x0.65x0.75
|
850
|
|||||||
|
200x180x3
|
7.5
|
3.0
|
1.2-1.4
|
3
|
Φ100
|
2.10x0.88x0.75
|
1300
|
|||||||
|
The Prestressed concrete Beam making Machine can be customized according to the concrete beam sizes required by the customer.
|
|
|
|
|
|
|
|
|||||||
Specification of
Prestressed concrete Lintel making Machine
|
Concrete lintel machine
|
Motor power(kw)
|
Vibrator
Power
|
Forming speed (m/min)
|
Holes No.
|
Dia. of holes
|
Dimension
LxWxH(m)
|
Weight
(kg)
|
|||||||
|
60x110x130
|
4.0
|
1.5
|
1.2-1.4
|
4
|
Φ30
|
2.10x0.80x0.65
|
860
|
|||||||
|
60x120x140
|
4.0
|
1.5
|
1.2-1.4
|
4
|
Φ30
|
2.10x0.84x0.62
|
845
|
|||||||
|
60x140x160
|
4.0
|
1.5
|
1.2-1.4
|
4
|
Φ30
|
2.10x0.92x0.65
|
920
|
|||||||
|
60x150x170
|
4.0
|
1.5
|
1.2-1.4
|
4
|
Φ30
|
2.10x0.96x0.65
|
940
|
|||||||
|
60x160x180
|
4.0
|
2.2
|
1.2-1.4
|
8
|
Φ30
|
2.10x1.00x0.65
|
1000
|
|||||||
|
80x180x200
|
5.5
|
2.2
|
1.2-1.4
|
8
|
Φ35
|
2.10x1.08x0.67
|
1150
|
|||||||
|
100x100x4
|
4.0
|
1.5
|
1.2-1.4
|
4
|
Φ30
|
2.05x0.70x0.70
|
845
|
|||||||
|
130x130x4
|
5.5
|
2.2
|
1.2-1.4
|
4
|
Φ35
|
2.10x1.08x0.67
|
1120
|
|||||||
|
150x150x4
|
5.5
|
2.2
|
1.2-1.4
|
4
|
Φ35
|
2.10x1.10x0.70
|
1300
|
|||||||
|
The Prestressed concrete Beam making Machine can be customized according to the concrete beam sizes required by the customer.
|
|
|
|
|
|
|
|
|||||||
Other precast elements can be produced
Concrete Beam,Lintel,H beam,T beam machine
Our slipform machine can produce solid slabs, boundary wall panels,fence panels, concrete beams, concrete lintels, concrete H beams,concrete T beam, we can design the machines according to your drawings of elements.
Finished product
Our services
* The technical supporting all the time 7x24hours
* One year warranty for whole machine
* Free quick wear parts
* Free training to end-users and online training
* Low charge continue maintenance
* One year warranty for whole machine
* Free quick wear parts
* Free training to end-users and online training
* Low charge continue maintenance
Contact US
Whatsapp:+8615589991532
Wechat:evansoke
SOKE INTERNATIONAL(Precast Machine Department)
Contact person:Evan
M:+ 86 15589991532
WhatsApp/Wechat: + 86 15589991532
E: evan@sokeinternational.com
Website: www.sokeprecastmachine.com
M:+ 86 15589991532
WhatsApp/Wechat: + 86 15589991532
E: evan@sokeinternational.com
Website: www.sokeprecastmachine.com
We welcome you to consult our precast concrete hollow core slab machine, precast concrete wall panel machine,concrete Beam machine, concrete lintel machine, concrete H beam machine, concrete T beam machine or other equipments related precast technology.
