Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YUJIE
-
Model Number:
-
YJ-SRU111144
-
Output:
-
12-24V
-
Product name:
-
Car Auto RV Marine Boat Single Circuit Battery Selector Isolator
-
Voltage:
-
6V-48V DC
-
Function:
-
emergency cut-off switch
-
Application:
-
Electric Power System
-
Operating Mode:
-
ON-OFF-ON
-
Usage:
-
Electric Industry
Quick Details
-
Number of Pole:
-
2
-
Rated Current:
-
125 Amps
-
Rated Voltage:
-
48
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YUJIE
-
Model Number:
-
YJ-SRU111144
-
Output:
-
12-24V
-
Product name:
-
Car Auto RV Marine Boat Single Circuit Battery Selector Isolator
-
Voltage:
-
6V-48V DC
-
Function:
-
emergency cut-off switch
-
Application:
-
Electric Power System
-
Operating Mode:
-
ON-OFF-ON
-
Usage:
-
Electric Industry

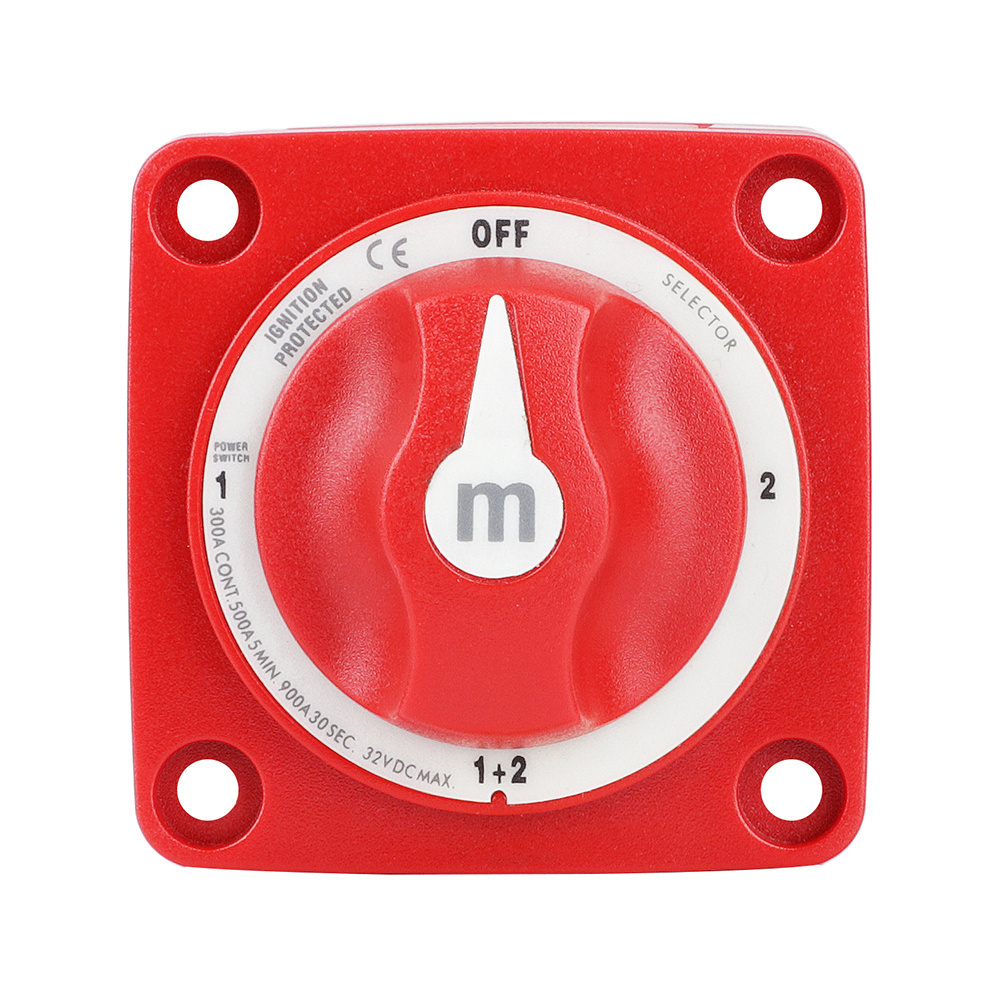

12V-48V 100A-300A Car Auto RV Marine Boat Single Circuit Battery Selector Isolator Disconnect Rotary Switch
Switch Type :Selector 3/4 Position
Color :Red
Switch Positions :3/4
Battery Combine : 3 Position NO/4 Position Yes
Alternator Field Disconnect :No
Maximum Voltage :32V DC
Stud Size :3/8"
Terminal Stud Torque :120 in-lb (13.56 Nm)
Continuous Rating :300A
Intermittent Rating :500A (5 min)
Cranking Rating 30 sec :900A
Battery Inputs :2
Cable Clearance For 4/0 AWG Cables "1.12in (28.45 mm)
Cable Size to Meet Ratings :"4/0 AWG (120mm²)
Mounting Holes : "Accept #10 Screw
Stud Material :"Tinned Copper
Terminal Stud Torque :"120 in-lb (13.56 Nm)
Terminal Stud Size : "3/8"" - 16 (M10)
Waterproof level:IP66
| color | red, blue, yellow, green color |
| MOQ | 100PCS |
