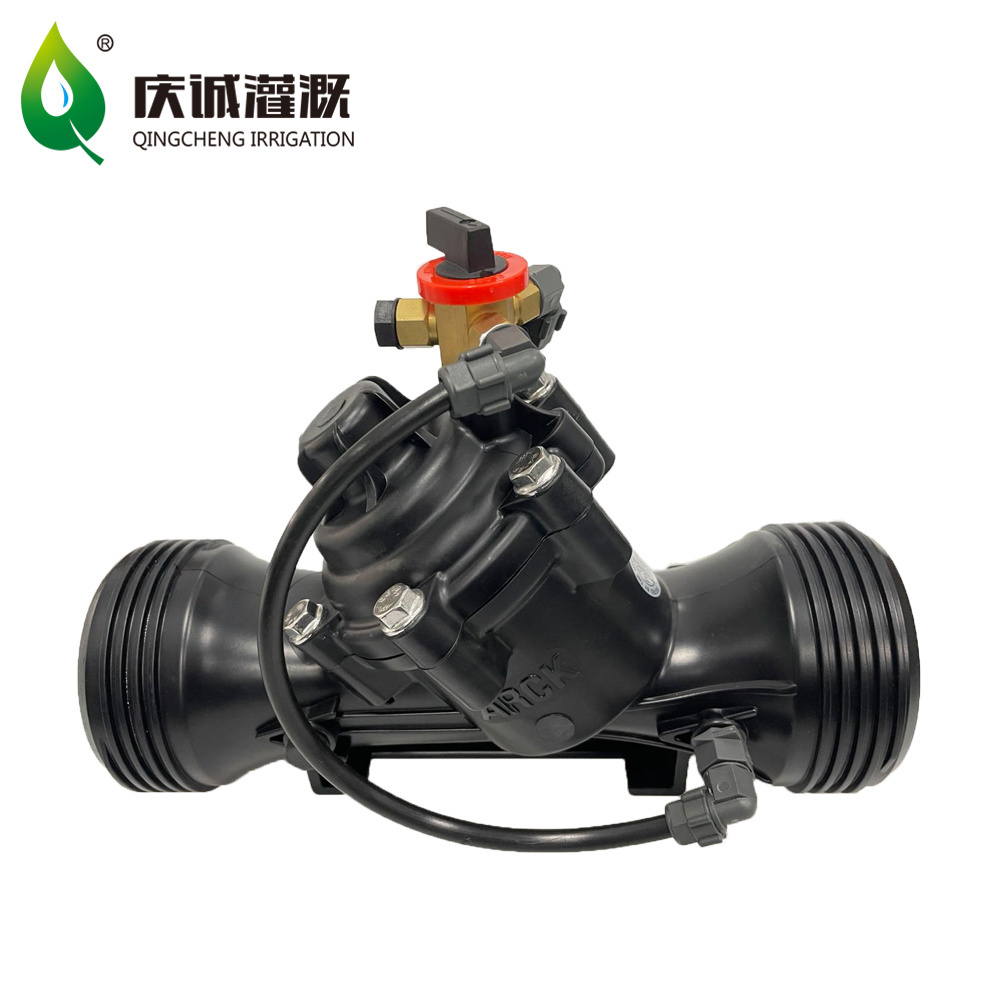

2 inch manual control valve irrigation control valve hydraulic control valve for farm irrigation

2 inch manual control valve irrigation control valve hydraulic control valve for farm irrigation

FOB Reference Price: Get Latest Price

≥1 Sets

US $31.86

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: 2 inch Manual Control Valve

Color:: black

Usage:: irrigation

MOQ:: 1

OEM:: Avaliable

Port:: fuzhou

Connection port type:: female thread

Working pressure:: 0.35-10.0bar

Packing:: Carton

Quick Details

Place of Origin:: Fujian, China

Brand Name:: ARCK

Model Number:: MV050B

Product name:: 2 inch Manual Control Valve

Color:: black

Usage:: irrigation

MOQ:: 1

OEM:: Avaliable

Port:: fuzhou

Connection port type:: female thread

Working pressure:: 0.35-10.0bar

Packing:: Carton

Hydraulic Control Valve

Product Features and Benefits

● Diaphragm hydraulic control valve, driven by system pressure,electrical signal control on/off.

● With internal water inlet and outlet circuit. An internal filter unit makes the valve self-cleaning.
● Engineered Plastic Valve with Industrial Grade Design. Highly durable, chemical & cavitation resistant.
● Y-shaped valve body design, large overflow and small head loss.
● Unitized Flexible Super Travel Diaphragm with a Guided Plug.Accurate and stable regulation with smooth closing.
● The external pressure pipeline design can be easily checked and maintained online.

Technical Data

● Valve body design and optional size: 1½″- 6″; DN40-DN150
● Optional connection port:
○ Thread connection: Internal thread BSP.T/NPT ( 1½″, 2″, 3″; DN40, DN50, DN80 )
○ Flange connection: 3″, 4″, 5″, 6″
○ Clamp type interface: 2″or 3″plastic groove adapter interface
● Pressure rating: 10bar; 150psi
● Operating temperature: not higher than 60℃; 140℉
● Material:
○ Valve body, Bonnet, Valve core: glass fiber reinforced nylon
○ Diaphragm: Rubber
○ Spring: stainless steel
○ Sealing gasket: rubber
○ Bonnet bolts: Stainless steel
