- Product Details
- {{item.text}}
Quick Details
-
Name:
-

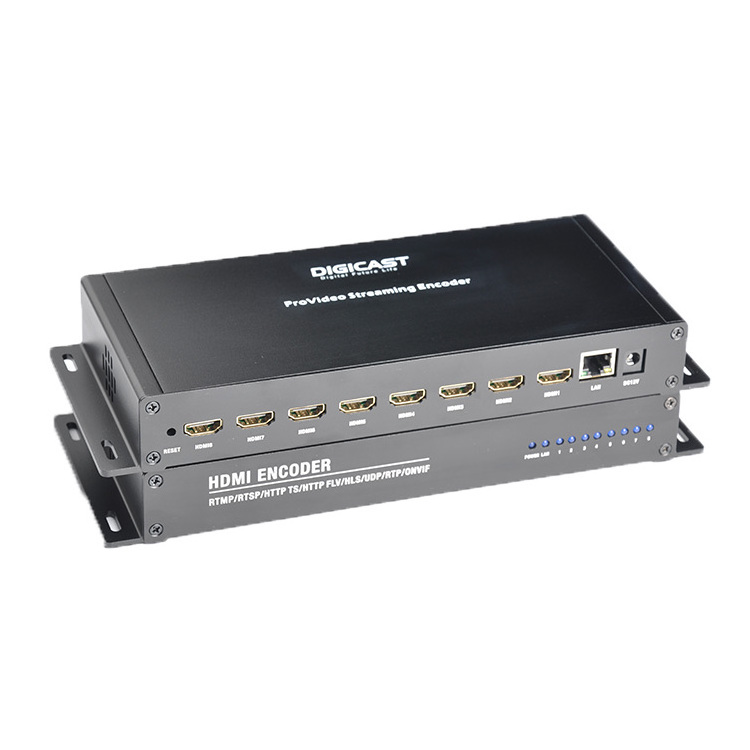

SRT Video Encoder
-
Video Input:
-
8 HDMI
-
Audio Formart:
-
MPEG1-Layer2 ,3.5MM audio
-
IP Out Protocol supported:
-
RTSP/RTMP/HTTP/UDP/HLS/RTP
-
Encoding support:
-
H265 HEVC/H264
-
Support:
-
for multiple IPTV video on demand server(FMS,Wowza,streaming,etc
-
Management:
-
Web management
-
Resolution:
-
output 1080P@60 FPS
-
Audio encoding:
-
Mpeg1L2 / AC3 / AAC Audio Encodi
-
Application for live event:
-
stream to Youtube/ Wowza/facebok Live platform
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DIGICAST
-
Model Number:
-
DMB-8908A-EC
-
Name:
-
SRT Video Encoder
-
Video Input:
-
8 HDMI
-
Audio Formart:
-
MPEG1-Layer2 ,3.5MM audio
-
IP Out Protocol supported:
-
RTSP/RTMP/HTTP/UDP/HLS/RTP
-
Encoding support:
-
H265 HEVC/H264
-
Support:
-
for multiple IPTV video on demand server(FMS,Wowza,streaming,etc
-
Management:
-
Web management
-
Resolution:
-
output 1080P@60 FPS
-
Audio encoding:
-
Mpeg1L2 / AC3 / AAC Audio Encodi
-
Application for live event:
-
stream to Youtube/ Wowza/facebok Live platform
Product Description
High Lights
Features.
●Video Input: 8-Channel HDMl work simultaneously
● Video Compression: HD H.264/MPEG-4 AVC, up to 1080P@60fps
● Audio compression: AAC,AAC+,AAC++,MP3,MP2, Dolby Digital AC-3
● All protocols (HLS, RTMP, HTTP, RTSP, UDP) can be working simultaneously
● Support output 2 groups TS over IP streams with 2 different resolutions and 2 different bitrates by each HDMl channel input
● Having 8*HDMl embedded audio input
● Support RTMP User name and Pass word for authentication of IPTV Server
● Capable of OSD settings for logo, text and Scroll Caption; Adjustable of audio gain;
● Support H.264 Baseline Profile/Main Profile/High Profile and MP3 & AAC audio compression
● Bitrate mode: CBR/VBR
● Capable of image parameter settings
● Configurable of Multi-Screen, Multi-Protocol, Low bitrate with high quality image.
● Any iOS browsers (iPhone, iPad, MacBook etc.) can have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players.
● Any terminal devices/decoders can have streams from IPTV Streaming Encoder directly by RTMP protocol with software players (such as VLC).
● Support HDCP protocol
● Support ONVIF Network Video Protocol
● Support multiple equipment display at the same time on a computer
● System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
● Web-based management
● Full-duplex mode 1000M
● Video Compression: HD H.264/MPEG-4 AVC, up to 1080P@60fps
● Audio compression: AAC,AAC+,AAC++,MP3,MP2, Dolby Digital AC-3
● All protocols (HLS, RTMP, HTTP, RTSP, UDP) can be working simultaneously
● Support output 2 groups TS over IP streams with 2 different resolutions and 2 different bitrates by each HDMl channel input
● Having 8*HDMl embedded audio input
● Support RTMP User name and Pass word for authentication of IPTV Server
● Capable of OSD settings for logo, text and Scroll Caption; Adjustable of audio gain;
● Support H.264 Baseline Profile/Main Profile/High Profile and MP3 & AAC audio compression
● Bitrate mode: CBR/VBR
● Capable of image parameter settings
● Configurable of Multi-Screen, Multi-Protocol, Low bitrate with high quality image.
● Any iOS browsers (iPhone, iPad, MacBook etc.) can have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players.
● Any terminal devices/decoders can have streams from IPTV Streaming Encoder directly by RTMP protocol with software players (such as VLC).
● Support HDCP protocol
● Support ONVIF Network Video Protocol
● Support multiple equipment display at the same time on a computer
● System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
● Web-based management
● Full-duplex mode 1000M
Specification
|
Video compression
|
H.264/AVC High/Main/Baseline Profile Level 4.0
|
|
Frame rate
|
up to 60fps
(Recommended to be setup under the max. capability of 8CH@30fps OR 4CH@60fps+4CH@30fps)
|
|
Video input
|
8*HDMl
(HDCP compatible)
|
|
Main stream
|
1920x1080,1680x1056,1280x720,1024x576,850x480,720x576,720x540,720x480,720x404,704x576,640x480,640x360, auto
|
|
Bit-rate
|
16kbps~12Mbps, CBR/VBR
|
|
Video pre-processing
|
Noise reduction, Sharpen, Filtering
|
|
Audio compression
|
AAC,AAC+,AAC++,MP3,MP2, Dolby Digital AC-3
|
|
Audio input
|
8*HDMl embedded
|
|
Sampling accuracy
|
24-bit
|
|
Bit Rate
|
48kbps~320kbps
|
|
Transport protocol
|
TS over IP output, HLS, RTSP, HTTP, UDP and RTMP protocol
|
|
Connector
|
RJ45, 1000M
|
Application
●Digital TV Broadcasting System
●Remote Video Conference
●
IPTV & OTT system
●Digital TV Programs Transmission
●
Internet TV
●Hotel IPTV System
●
Digital Signage Project
●Live Streaming
