Quick Details
-
Spindle Taper:
-
ISO50 7:24
-
Range of Spindle Speed(r.p.m):
-
30 - 1500 r.p.m
-
Place of Origin:
-
China
-
Brand Name:
-
Shandong yijin CNC
-
Model Number:
-
X6132A
-
Year:
-
2023
-
Spindle Motor Power(kW):
-
7.5
-
Dimension(L*W*H):
-
2294*1770*1610
-
Weight (KG):
-
2650
-
Marketing Type:
-
Hot Product 2023
-
Table size(length * width):
-
1325*320mm
-
Number/Width/Distance of T-slot:
-
3/18/70/mm
-
Max. load of table:
-
500kg
-
Rapid feed speed(X/Y/Z):
-
2300/2300/770/mm/min
-
Max. swivel angle of work table:
-
±45°
Quick Details
-
Table Travel (X) (mm):
-
700
-
Table Travel (Y) (mm):
-
255
-
Table Travel (Z) (mm):
-
320
-
Spindle Taper:
-
ISO50 7:24
-
Range of Spindle Speed(r.p.m):
-
30 - 1500 r.p.m
-
Place of Origin:
-
China
-
Brand Name:
-
Shandong yijin CNC
-
Model Number:
-
X6132A
-
Year:
-
2023
-
Spindle Motor Power(kW):
-
7.5
-
Dimension(L*W*H):
-
2294*1770*1610
-
Weight (KG):
-
2650
-
Marketing Type:
-
Hot Product 2023
-
Table size(length * width):
-
1325*320mm
-
Number/Width/Distance of T-slot:
-
3/18/70/mm
-
Max. load of table:
-
500kg
-
Rapid feed speed(X/Y/Z):
-
2300/2300/770/mm/min
-
Max. swivel angle of work table:
-
±45°
More Product recommendations
Product Description

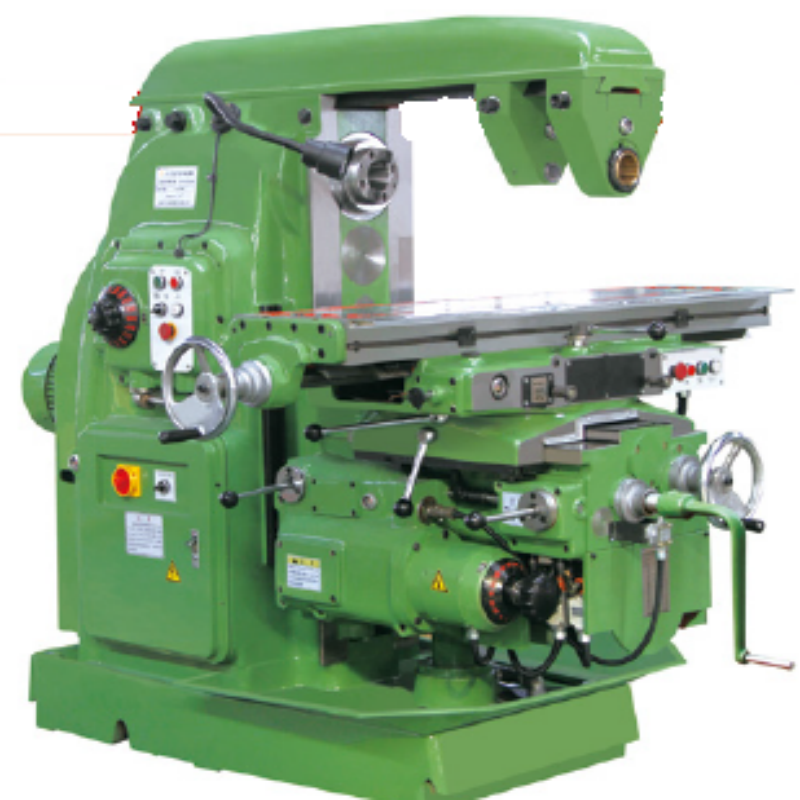

X6132A
This machine tool is a kind of strong metal cutting horizontal universal lifting table milling machine. The machine tool has strong rigidity, wide feed speed range and can bear heavy load chip.
1, this machine tool belongs to the general machine tool, mainly suitable for batch production, single piece small batch production, mechanical processing department, tool repair department.
2, suitable for milling various parts with cylindrical, circular milling cutter, Angle milling cutter, forming milling cutter and end milling cutter, this milling machine can process plane, bevel, groove, hole, gear and so on. If the universal milling head is used, the original table and the first grade milling machine accessories can expand the processing range of the machine tool.
3, the table can rotate left and right 45º, when the table rotates a certain Angle around its vertical center and is installed with the indexing head thickness, it can still mill the spiral surface (such as the spiral groove of the drill, spiral gear, drum, etc.).
Specification
|
Product name
|
Units
|
X6140
|
X6132A
|
|
Table size（length × width）
|
mm
|
1700×400
|
1325×320
|
|
Number/Width/Distance of T-slot
|
mm
|
3/18/80
|
3/18/70
|
|
Max. load of table
|
kg
|
800kg
|
500
|
|
Longitudinal travel (manual/auto)
|
mm
|
900/800
|
700/680
|
|
Transverse travel (manual/auto)
|
mm
|
315/300
|
255 /240
|
|
Vertical travel (manual/auto)
|
mm
|
380/360
|
320/300
|
|
Cutting feed speed（X/Y/Z）
|
mm/min
|
19-950
19-950 6.3-317 |
23.5-1180
23.5-1180 8-394 |
|
Rapid feed speed（X/Y/Z）
|
mm/min
|
2300/2300/770
|
2300/2300/770
|
|
Spindle speed range
|
rpm
|
30-1500
|
30-1500
|
|
Spindle speed step
|
steps
|
18
|
18
|
|
Max. swivel angle of work table
|
|
±45°
|
±45°
|
|
Distance between spindle axis and table surface
|
mm
|
30-410
|
30-350
|
|
Spindle taper
|
|
ISO50 7:24
|
ISO50 7:24
|
|
Spindle motor power
|
kw
|
11
|
7.5
|
|
Feed motor power
|
kw
|
1.5
|
1.5
|
|
Overall dimension（L×W×H）
|
mm
|
2594×2159×1770
|
2294×1770×1610
|
|
Net weight
|
kg
|
3850
|
2650
|
