Quick Details
-
Brand Name:
-
XCY
-
Model Number:
-
X31G
-
Operating System:
-
Win 10, Window7/Window 8/10 Linux
-
Video Card:
-
Intel H-D Graphics 5500
-
Processor Brand:
-
Intel Core i5 5200U
-
Processor Base Frequency:
-
3.00GHz
-
RAM:
-
SODIMM DDR3L 1333/1600MHz
-
Hard Disk:
-
Support mSATA SSD+2.5''
-
WiFi:
-
300Mbps ( Blue-tooth optional )
-
LAN:
-
2*RTL8111 Gigabit Ethernet,Support Wake on Lan
-
USB Port:
-
4x USB3.0
-
Size:
-
180x128x55mm
-
Case Materials:
-
Alimunym metal
Quick Details
-
Use:
-
Industrial
-
Hard Drive Type:
-
SSD+HDD
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XCY
-
Model Number:
-
X31G
-
Operating System:
-
Win 10, Window7/Window 8/10 Linux
-
Video Card:
-
Intel H-D Graphics 5500
-
Processor Brand:
-
Intel Core i5 5200U
-
Processor Base Frequency:
-
3.00GHz
-
RAM:
-
SODIMM DDR3L 1333/1600MHz
-
Hard Disk:
-
Support mSATA SSD+2.5''
-
WiFi:
-
300Mbps ( Blue-tooth optional )
-
LAN:
-
2*RTL8111 Gigabit Ethernet,Support Wake on Lan
-
USB Port:
-
4x USB3.0
-
Size:
-
180x128x55mm
-
Case Materials:
-
Alimunym metal
We can support OEM/ODM service, the process of customization is following:
1: Provide your specific requirement.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.
Assisting customers in their journey towards customized solutions:
☑ Logo(Packing , Computer Logo) ☑ Computer Colors
☑ Security ☑ Interfaces Customization
☑ Virtualisation ☑ And so on...
☑ Data Protection
For more information, Pls leave email.
|
Onboard CPU
|
Core i5-5200U(3M Cache, 3.00 GHz)
|
|
Memory
|
DDR3L 1333/1600MHz
|
|
Hard Disk
|
Supports 1 * mSATA SSD and 1 * 2.5 inch SATA HDD / SSD
|
|
Integrated Graphics
|
Intel H D Graphics 5500
Base Frequency 300.00 MHz,Max Dynamic Frequency 950 MHz Graphics Video Max Memory: 16 GB Graphics Output: H-D 1.4 (Max2560x1600@60Hz) In-tel Quick Sync Video: Yes In-tel InTr 3D Technology: Yes In-tel Clear Video HD Technology: Yes |
|
Network Card
|
RTL8111 Gigabit Ethernet
|
|
Audio Card
|
high Definition Audio ControllerA
|
|

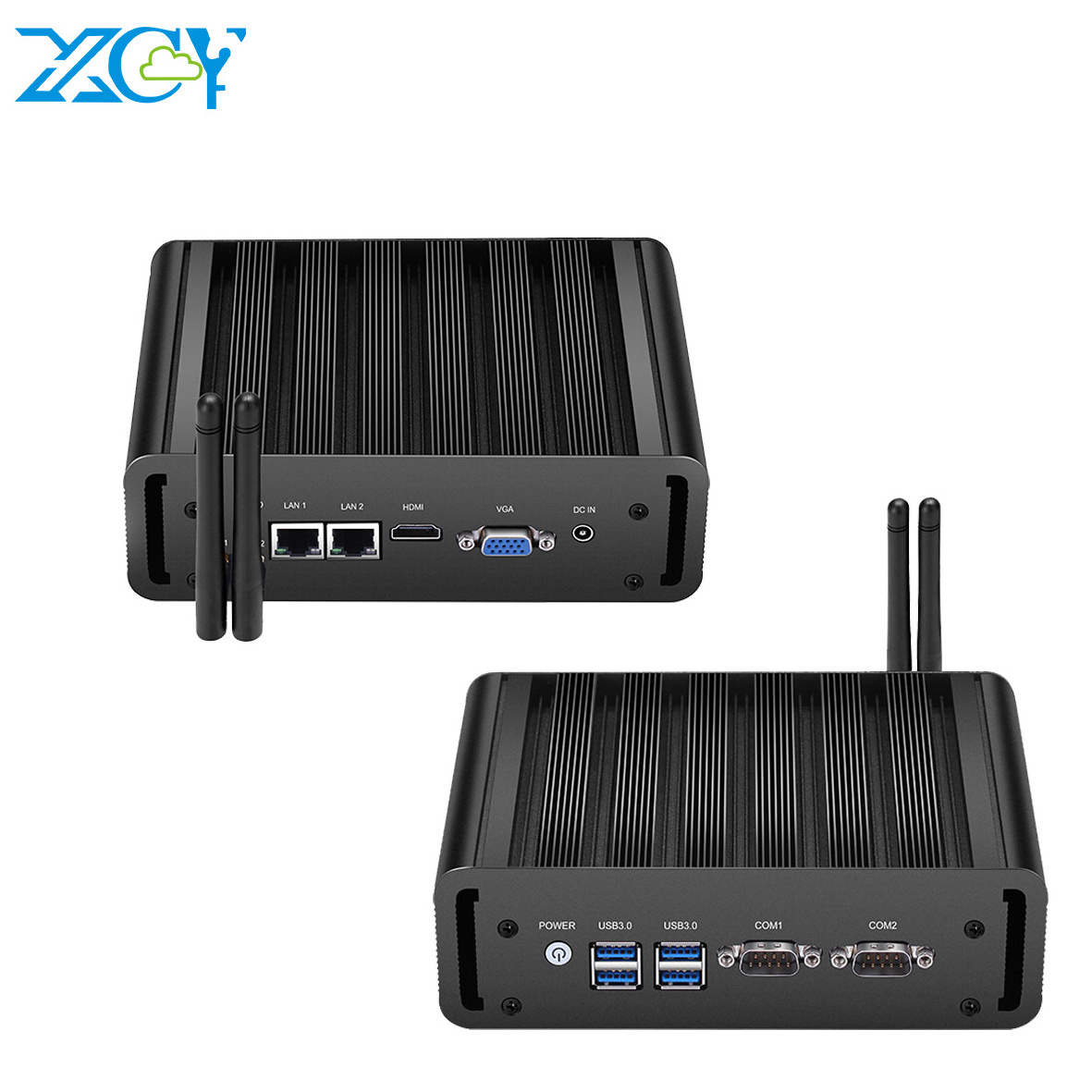

Front-Panel Connectors
|
• Power ON/OFF
• 4 x USB 3.0 Ports
• 2 x RS232(COM) Ports
|
|
Internal Connectors
|
• 1 x Mini PECI port
• 1 x SO-DIMM DDR3L
• 1 x SATA power Port
• 1 x SATA
• 1 x MINI-SATA
|
|
Back-Panel Connectors
|
• 1 × DC 12V input
• 1 × H-D
• 1 × LAN (RJ-45 Ports 10/100/1000 Mbps Adaptive)
• 1 × MIC
• 1 × SPK
• 2 x WIFI antennas ports
|
|
Operating System
|
Support Win 7/8/10, Linux, etc
|
|
RAM(optional)
|
4GB / 8GB/16GB (LPDDR3-1866, DDR3L-1600)
|
|
SSD/HHD(optional)
|
64G/128G/256G 512G mSATA SSD
500G / 1TB 2.5" HDD |
|
WiFi
|
With dual antenna, 802.11.b/g/n(150M or optional 300M)
|
|
Power Consumption
|
TDP 15W
|
|
Case Color
|
Black (Other Color Can Be Customized)
|
|
Power
|
Input: DC100-240V AC/50-60Hz Output: DC 12V/5A
|
|
Operating Temperature
|
（-20-80℃）
|
|
Storage Temperature
|
(0℃-80℃)
|
|
Relative Humidity
|
10%~90% (non-condensing)
|
|
Dimension
|
180X128X55 mm
|
|
Package Content
|
1x Mini PC
1x Power Adapter 1x Stand Bracket(free gift) 2x WiFi Antennas(Optional) 1x WiFi Module(Optional) 1x User Manual |
Q1. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support.
Q3. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q4. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model to insure the quality before shipping.
Q5.What’s the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without repair cost (except change new accessories).
Q6.What are the OS do your computers support?
Re: Support Win 7, Win 8, Win 10, Linux ubuntu , pfsense etc. Some model is support XP, such as 1037U,Core CPU is not support XP.
Q7. Which models can run pfsense as a firewall?
Re: 2 or more LAN mini pc can run pfsense as a firewall. we have 2 LAN/4 LAN/6 LAN model.
