The Programmable Logic Controller (PLC) with a touchscreen display provides all key parameters on a single page for easy operation.
- Product Details
- {{item.text}}
Quick Details
-
Bottle Volume(ml):
-
20000 ml
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Sico
-
Year:
-
NEW
-
Voltage:
-
380V/3 Phase/50HZ or Custom
-
Dimension(L*W*H):
-
2190*740*1900mm/2800*670*1600mm
-
Hollow part volume:
-
10 Liter - 25 Liter
-
Power (kW):
-
36
-
Weight (KG):
-
1500 KG
-
Bottle Neck Size:
-
38-160mm
-
Blower Size:
-
2190*740*1900mm
-
Heater Size:
-
2800*670*1600mm
Quick Details
-
Neck Diameter(mm):
-
55 mm
-
Max.Bottle Diameter(mm):
-
270 mm
-
Max.Bottle Height(mm):
-
520 mm
-
Bottle Volume(ml):
-
20000 ml
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Sico
-
Year:
-
NEW
-
Voltage:
-
380V/3 Phase/50HZ or Custom
-
Dimension(L*W*H):
-
2190*740*1900mm/2800*670*1600mm
-
Hollow part volume:
-
10 Liter - 25 Liter
-
Power (kW):
-
36
-
Weight (KG):
-
1500 KG
-
Bottle Neck Size:
-
38-160mm
-
Blower Size:
-
2190*740*1900mm
-
Heater Size:
-
2800*670*1600mm
Product Overview
Technical Parameter
|
Model
|

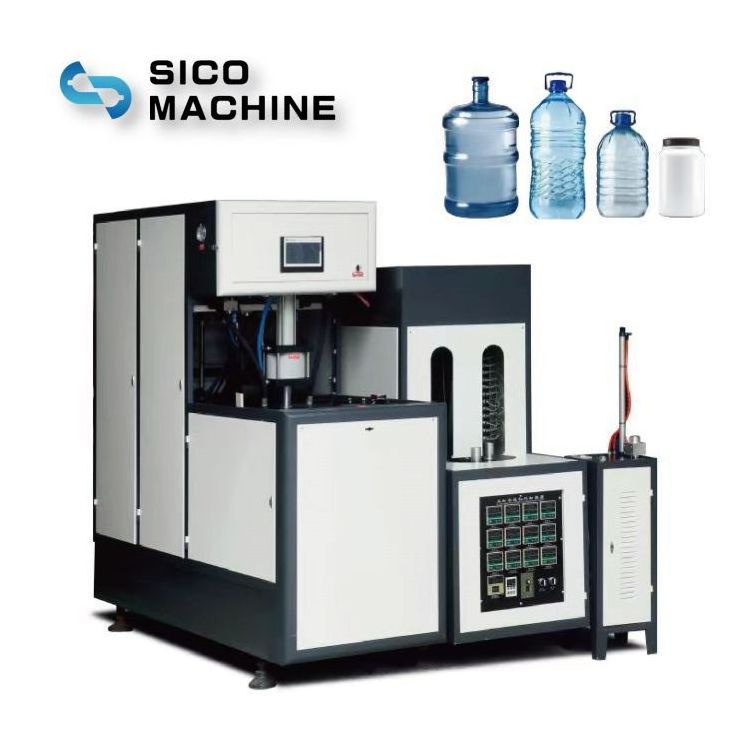

SC-100 Semi Automatic PET Bottle Blowing Machine
|
|
|
|
Theoretical output
|
100--350 pcs/h
|
|
|
|
Finished bottle
|
Max. bottle volume
|
10L-20L
|
|
|
|
Neck diameter
|
38-160mm
|
|
|
|
Max. bottle diameter
|
270mm
|
|
|
|
Max. bottle height
|
520mm
|
|
|
Mold specifications
|
Cavity
|
1 cavity
|
|
|
|
Mold thickness
|
200mm-360mm
|
|
|
|
Open stroke
|
350mm
|
|
|
Electrical system
|
Power voltage
|
380v/3Phase/50HZ
|
|
|
|
Installation power
|
36kw
|
|
|
|
Actual power consumption
|
11kw
|
|
|
Air source
|
Recommend air compressor
|
1.6m³/min 30Kg
|
|
|
Cooling water
|
Recommend water chiller
|
5HP
|
|
|
Blowing machine size
|
Length*width*height/weight
|
2190*740*1900mm/950kg
|
|
|
Auto Loader size
|
Length*width*height/weight
|
2800*670*1600mm/550kg
|
|
Our Advantage
|
Components
|
Brand
|
|
PLC
|
Xinje
|
|
Touch Screen
|
Xinje
|
|
Cylinder
|
Yongcheng
|
|
Blowing Valve
|
Sinopc
|
|
Action valve
|
Festo
|
|
Circuit Breaker
|
Schneider
|
1. The workspace equipped with lighting.
2. Provide anti-pinch devices to ensure the safety of your workers during production.
2. Equipped with a special manual exhaust valve, allowing for easy exhaust air release during mould changes.
Customer Feedback
Certification And Test Report
FAQ
Q: How can we get this machine ?
A:
Please contact us check the details and bottle design before we start it.
We will make ONLINE ORDER and start production for you.
Q: Do you have engineer available to our factory help us install machine?
A:
Yes,we have engineer allowed to visit all safety country to help you install machine and train employees.
Also we have online engineer who will guide you how to install machine and debug.
Q: Can we custom made the machine?
A:
Yes,we support custom made.
Machine color,machine important parts brand all support custom.
Also we support add mutiple languages to the machine operation panel
,including Chinese,English,Arabic,Spanish, Russian......
