Quick Details
-
Brand Name:
-
VINA
-
Voltage:
-
220V/380V110V/440V
-
Dimension(L*W*H):
-
1200x750x1400
-
Weight (KG):
-
300
-
Power (kW):
-
1.5
-
Product name:
-
crusher blade knife sharpening machine
-
Machine Type:
-
Suface Grinding Machine
-
Max.Grinding Length:
-
1500mm
-
Spare parts:
-
4 grinding wheels
Quick Details
-
Wheel Size(mm):
-
125*95*32mm
-
Year:
-
2023
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
VINA
-
Voltage:
-
220V/380V110V/440V
-
Dimension(L*W*H):
-
1200x750x1400
-
Weight (KG):
-
300
-
Power (kW):
-
1.5
-
Product name:
-
crusher blade knife sharpening machine
-
Machine Type:
-
Suface Grinding Machine
-
Max.Grinding Length:
-
1500mm
-
Spare parts:
-
4 grinding wheels
Product Description
Features

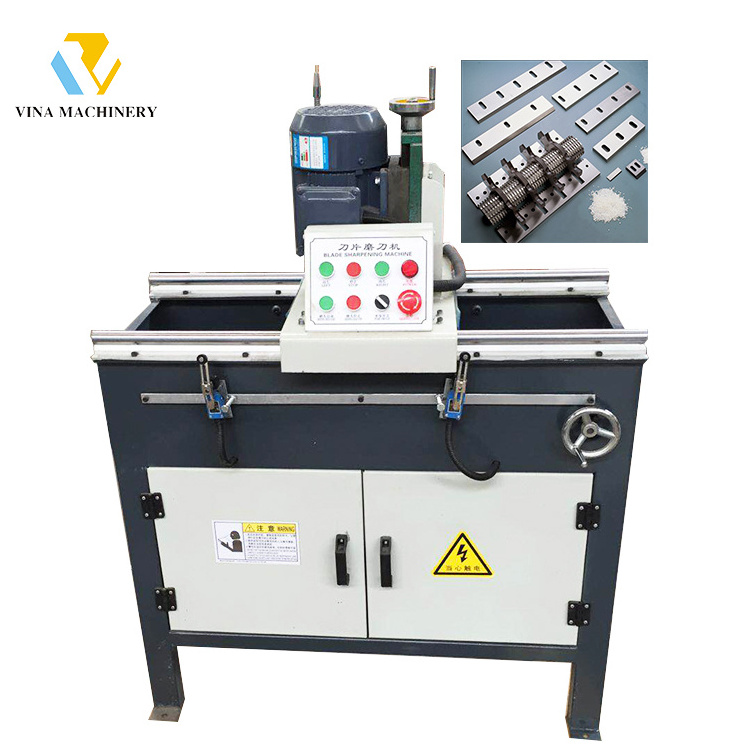

This machine is designed for the plastic crusher blades. It can increase the working efficiency, it can also be used for the other straight edge blades.
This machine is composed by the airframe, working table, straight orbit, reducer, motor and electric parts.
Knife grinder machine is designed according to plastic crusher bits easy to loss which is specially used in grinding the crusher bits. It has compact structure, comfortable outlook, high efficiency, easy control, is suitable for grinding and processing each kind of straight edge cutting tool. It is composed of machine frame, operating platform, slide carriage, reduction motor, grinding head, electrical equipment. It is suit for our PP/PE/PET crusher.
This machine is composed by the airframe, working table, straight orbit, reducer, motor and electric parts.
Knife grinder machine is designed according to plastic crusher bits easy to loss which is specially used in grinding the crusher bits. It has compact structure, comfortable outlook, high efficiency, easy control, is suitable for grinding and processing each kind of straight edge cutting tool. It is composed of machine frame, operating platform, slide carriage, reduction motor, grinding head, electrical equipment. It is suit for our PP/PE/PET crusher.
|
MODEL
|
DQ-500
|
DQ-700
|
DQ-1000
|
DQ-1200
|
DQ-1500
|
|
Power (kw)
|
1.5
|
1.5
|
2.2
|
3
|
4
|
|
Working range(mm)
|
0-500
|
0-700
|
0-1000
|
0-1200
|
0-1500
|
|
Moving motor
|
90YSJ-4 GS60
|
90YSJ-4 GS60
|
90YSJ-4 GS60
|
90YSJ-4 GS60
|
90YSJ-4 GS60
|
|
Wheel size
|
125*95*32*12
|
125*95*32*12
|
150*110*47*14
|
150*110*47*14
|
150*110*47*14
|
|
Working angle
|
0-90
|
0-90
|
0-90
|
0-90
|
0-90
|
