Quick Details
-
Standard or Nonstandard:
-
Standard
-
Material:
-
Aluminium
-
Brand Name:
-
Xinghe
-
Place of Origin:
-
Guangdong, China
-
Surface treatment ::
-
Anodic oxidation
Quick Details
-
Warranty:
-
No shelf life
-
Applicable Industries:
-
Manufacturing Plant, Machinery Repair Shops, Retail, Construction works
-
Structure:
-
Disc
-
Standard or Nonstandard:
-
Standard
-
Material:
-
Aluminium
-
Brand Name:
-
Xinghe
-
Place of Origin:
-
Guangdong, China
-
Surface treatment ::
-
Anodic oxidation
Product Features

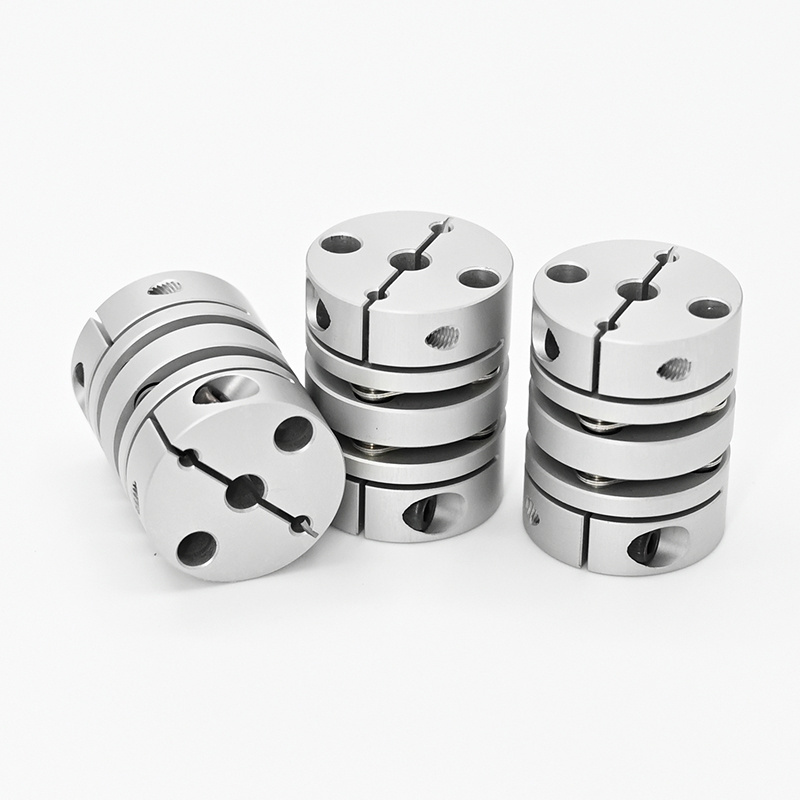

Features
1、
Double diaphragm
type flexible coupling
2、
High torsional rigidity, no gap connection between shaft and shaft sleeve, suitable for ultra precision control
3、
Common and servo, stepping motor
4、
Clockwise and counterclockwise rotation characteristics are identical
5
、
Low inertia, suitable for high-speed operation
6
、
The diaphragm is made of 304 stainless steel, which can compensate radial, angular and axial deviations
7、
In case of multiple deviations, the allowable value of a single deviation will be reduced
8、
Double diaphragm type can absorb deflection and eccentricity, but the whole length will be longer.
Attributes
|
Name
|
Double diaphragm coupling
|
|
Material
|
Main body:Aluminum alloy； Diaphragm：304stainless steel
|
|
Surface treatment
|
Natural color anode
|
|
Customized service
|
Support light customization and logo customization
|
|
Remarks
|
The default engraving brand name and size of the product. If you need not engraving, please contact the customer service for comments
|
Fast delivery
Delivery time：
Small order: 3-7 days; Large order 7-15 days
Product Paramenters
Diaphragm coupling
.
The diaphragm is made of 304 stainless steel. The diaphragm coupling has a super shock absorption effect. It has no noise and no wear when used, so it will have a good use effect for the compensation machine, and it will play a good advantage in various harsh environments. It can adapt to the temperature difference between high and low temperatures, and can reach the service temperature of 80 ℃ below zero and 300 ℃ above zero, And under such a temperature state, its normal use effect will not be affected, and no performance change will occur
Product display
Company profile
Shenzhen Xinghe Machinery Co., Ltd
Shenzhen Xinghe Machinery Co., Ltd., founded in 2007 and located in Pingshan District, Shenzhen, Guangdong Province, is a high-tech enterprise designing and manufacturing couplings. Its products are exported overseas all year round. It has frequent business cooperation with many large enterprises in Japan, Germany, France and other countries, and has been recognized by them in terms of quality. After more than ten years of development, the enterprise has established a perfect enterprise management system, adhered to the enterprise tenet of "integrity management, customer first, quality first, excellence", implemented the new development concept, gradually stepped into the platform of listed enterprises, and obtained the recognition of the industry.
CNC production line
Automatic manipulator production line
Two automatic manipulator processing center production lines, saving labor costs and increasing product production efficiency and quality
5-axis lathe production line
The company has 6 sets of 5-axis CNC lathes, and can undertake ultra precision and ultra complex production orders, and ensure that orders can be delivered on time
Aluminum bar material area
The company has a large material storage area, which can solve the emergency production of large orders and greatly shorten the product delivery time
Large spot warehouse
A large warehouse with an area of 500 square meters is equipped with more than 400000 pieces of goods. Most orders can be packed and shipped immediately after placing an order, so as to achieve rapid delivery service
Office area
The company has sufficient personnel, professional programming technicians and professional salespeople to ensure one-to-one docking with customers
Customer approval
Certification
Factory strength
5-axis compound CNC lathe in
Tsugami
, Japan: MO8YS-II
Japan Tsugami 5-axis core CNC lathe：B0385C
China platform group machining center
China Longbang turret CNC lathe
Packing & Delivery
The company exports offline to Japanese customers all the year round, and is proficient in the effectiveness and cost of various logistics. It can help customers reduce logistics costs and deliver products to customers faster
FAQ
Q:
Is your company a trading company or a manufacturer?
A: We have our own factory.
Q:How long does the lead time take?
A: If the goods are in stock, it is generally 1-2 days; if the goods are not in stock, it is 5-10 days, depending on the quantity.
Q: Can I order shaft bore couplings that are not listed in the catalog?）（Additional machining service for coupling shaft hole
A：Of course.In addition, the recommended dimensional tolerance for the applicable shaft diameter is H7.
Q: Which one is better between single diaphragm type and double diaphragm type in diaphragm type coupling?
A：Although the single diaphragm type has a short overall length, it is only suitable for occasions with narrow space due to the fact that eccentricity is not allowed in the structure, and special attention should be paid to centering during use.
Q: How to adjust diaphragm coupling when abnormal sound or vibration occurs in use?
A：When using servo motors, the frequency of the mechanical resonance suppression filter is set as its natural vibration frequency in the control system to suppress sound and vibration. When using stepper motors, vibration can be absorbed and suppressed by fine-tuning the speed used or by a high damping rubber coupling with significant attenuation effect.
