Quick Details
-
Brand Name:
-
Camel
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
Variable
-
Power (kW):
-
65
-
Weight (T):
-
900
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Output of PE rotomolding pulverizer:
-
150-200kg/h
-
Diameter of PE rotomolding pulverizer:
-
500mm
-
Weight:
-
1600kg
-
Capacity:
-
100% for PE rotomolding pulverizer
-
Cooling:
-
Wind cooling+water cooling
-
Usage:
-
Waste Plastic Cusher
-
Application:
-
Recycled Industry
-
Product name:
-
PVC pulverizer
-
Certification:
-
CE ISO9001
Quick Details
-
Max.Production Capacity (kg/h):
-
2000
-
Place of Origin:
-
Shanghai, China
-
Production Capacity (kg/h):
-
300 - 2000 kg/h
-
Brand Name:
-
Camel
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
Variable
-
Power (kW):
-
65
-
Weight (T):
-
900
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Output of PE rotomolding pulverizer:
-
150-200kg/h
-
Diameter of PE rotomolding pulverizer:
-
500mm
-
Weight:
-
1600kg
-
Capacity:
-
100% for PE rotomolding pulverizer
-
Cooling:
-
Wind cooling+water cooling
-
Usage:
-
Waste Plastic Cusher
-
Application:
-
Recycled Industry
-
Product name:
-
PVC pulverizer
-
Certification:
-
CE ISO9001
Product description
Vibration sieve
Made of stainless steel
Use the latest design to expand the filtration area and increase output
Filter mesh can be according to customer requirements
Milling chamber and bearing
Use of imported bearings
Double layer chamber design, Cooling by circulating water.
Control cabinet
All kind of electric parts is Siemens and Schneider. Or according customer requirements.
Including emergency stop device

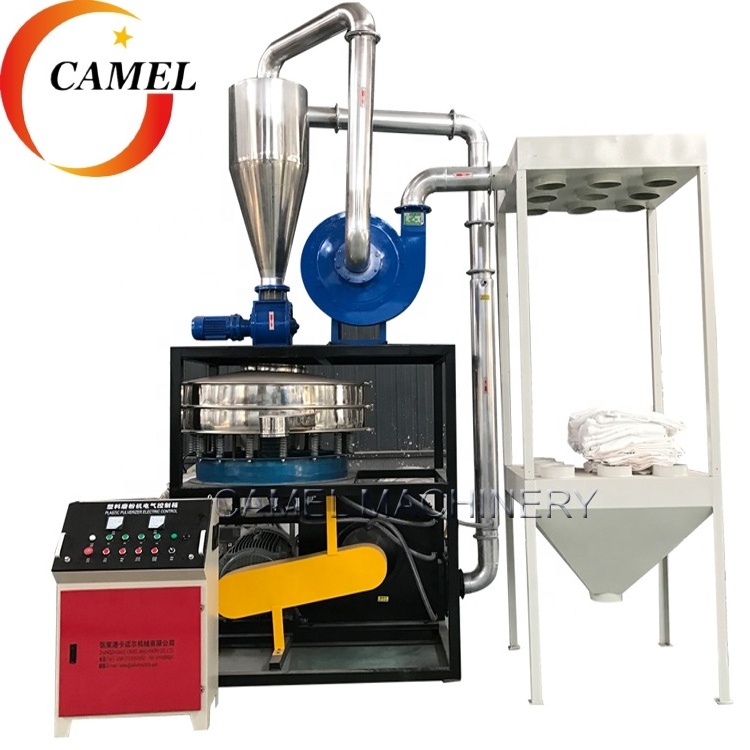

Main features of PE LDPE LLDPE pulverizer
(Disc type)
:
1.Low power consumption, high capacity
2.Simple structure and easy installation.
3.Host with the wind ,water circulation cooling system.
4.This Plastic pulverizer can deal with PE, LLDPE, LDPE, ABS, EVA, PET, PP etc.
Technical data:
|
Model
|
MP-400
|
MP-500
|
MP-600
|
MP-800
|
|||
|
Diameter of milling chamber(mm)
|
350
|
500
|
600
|
800
|
|||
|
Motor power(kw)
|
22-30
|
37-45
|
55
|
75
|
|||
|
Cooling
|
Water cooling + natural cooling
|
|
|
|
|||
|
Air Blower power(kw)
|
3
|
4
|
5.5
|
7.5
|
|||
|
Fineness of LDPE power
|
30 to 100mm adjustable
|
|
|
|
|||
|
Output of pulverizer(kg/h)
|
100-120
|
150-200
|
250-300
|
400
|
|||
|
Dimension (mm)
|
1800×1600×3800
|
1900×1700×3900
|
1900×1500×3000
|
2300×1900×4100
|
|||
|
Weight (kg)
|
1300
|
1600
|
1500
|
3200
|
|||
Main features of PVC pulverizer
(Rotor type):
1. The capacity of this model is higher than other kind of miller.
2. Equipped with dust collection device to reduce dust pollution.
3. Close blower for discharge can reduce labor intensity of worker and save money for clients.
4.The cover of main machine can be opened for maintain.
5.The cooling system include the water and wind cooling for the machine body.
Technical data:
|
Model
|
SMF-400
|
SMF-500
|
SMF-600
|
SMF-800
|
|||
|
Main Motor power (kw)
|
30
|
37
|
45/55
|
55/75
|
|||
|
Capacity (PVC 30-80 mesh)
(kg/h)
|
50-120
|
150-200
|
250-350
|
300-500
|
|||
|
Material of conveying pipe
|
Stainless steel
|
|
|
|
|||
|
Weight of PVC pulverizer
(kg)
|
1000
|
1200
|
1800
|
2300
|
|||
|
Cooling
|
Wind cooling +water cooling
|
|
|
|
|||
