Product Description

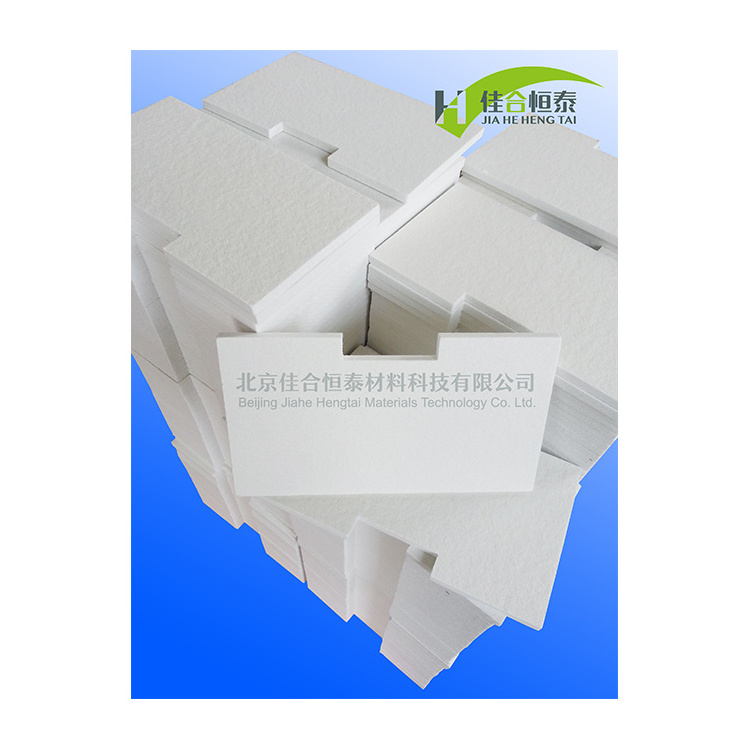

Ceramic Fiber Board
Performance:
Ceramic fiber board is made of ceramic fiber bulk by mixing with few adhesive. The board is hard-board shape fire-resistance product which manufactured by automatic control system, with the character of plain surface, high strength, high-temp resistance, low conductivity, good anti-striping and easy-to-cut.
Application:
Lining thermal insulation for kiln, high-temp furnace and other kinds of industrial furnace;
Model for glass product shaping.
Specification:
Thickness: 10-50mm
Width： 600-1000mm
Length: 900-1200mm
Working temperature: 800-1430℃
Specification
Technical Data of Ceramic Fiber Board
|
Item
|
|
Common
|
Standard
|
High pure
|
Zirconium and Aluminum
|
Zirconium
|
|||||
|
Max Temperature (℃)
|
|
1000
|
1260
|
1260
|
1400
|
1430
|
|||||
|
Working Temperature (℃)
|
|
800
|
1000
|
1100
|
1260
|
1350
|
|||||
|
Color
|
|
white
|
white
|
white
|
white
|
white
|
|||||
|
Density(kg/m3)
|
|
250--400
|
250--400
|
250--400
|
250--400.
|
250--400
|
|||||
|
Rate of liner (%)
(24h,Density300kg/m3) |
|
≤4
(1000℃)
|
≤3
(1000℃)
|
≤3
(1100℃)
|
≤3
(1260℃)
|
≤3
(1350℃)
|
|||||
|
Rate of thermal
conductivity (w/m .k) (Density 300kg/m3) |
|
0.085(400℃)
|
0.085(400℃)
|
0.085(400℃)
|
0.085(400℃）
|
0.085(400℃）
|
|||||
|
|
|
0.132(800℃)
|
0.132(800℃)
|
0.132(800℃)
|
0.132(800℃)
|
0.132(800℃)
|
|||||
|
|
|
0.180(1000℃)
|
0.180(1000℃)
|
0.180(1000℃)
|
0.180(1000℃)
|
0.180(1000℃)
|
|||||
|
Tensile Strength (Mpa)
(10%compressed in thickness direction) |
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
|||||
|
Chemical
Analysis (%) |
Al2O3
|
44
|
46
|
47－49
|
52-55
|
39-40
|
|||||
|
|
Al2O3+SiO2
|
96
|
97
|
99
|
99
|
82--84
|
|||||
|
|
Zirconium
|
--
|
--
|
--
|
--
|
15-17
|
|||||
|
Standard size: (mm)
|
|
12.7mmx600mmx900mm
25mmx600mmx900mm 40mmx600mmx900mm 50mmx600mmx900mm |
|
|
|
|
|||||
Note: Other size available upon special request
