- Product Details
- {{item.text}}
Quick Details
-
Color:
-
black , grey , red , brick red , brick reddish , white , transparent
-
Appearrance:
-
liquid rubber
-
Mixing ratio:
-
1:1 , 10:1
-
Viscosity:
-
3000~6000 mpas
-
Sample:
-
Available
Quick Details
-
Catalogue:
-
potting material , silicone potting , potting silicone
-
System:
-
platinum silicone , Addition cure silicone , addtition silicone
-
Usage:
-
Electronic Encapsulant , Encapsulation , magnet crane ,magnet left
-
Color:
-
black , grey , red , brick red , brick reddish , white , transparent
-
Appearrance:
-
liquid rubber
-
Mixing ratio:
-
1:1 , 10:1
-
Viscosity:
-
3000~6000 mpas
-
Sample:
-
Available
Potting encapsulant silicone rubber

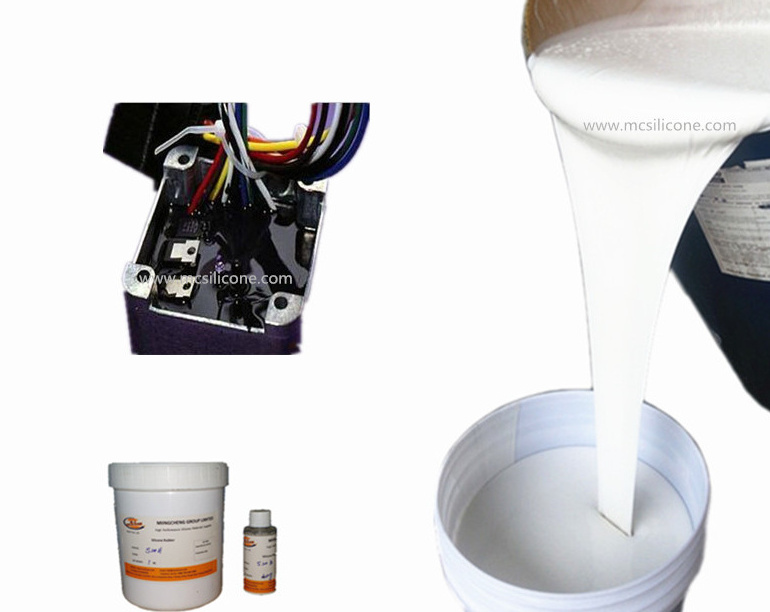

RTV160 is a two-component room temperature cure potting compound with mix ratio of 1: 1, curing time can be accelerated by heating up, features with good flow ability and flame resistance. It's suitable for encapsulating of LED displayers, power module and electronics components, etc.
Features of Potting encapsulant silicone rubber
The product has low shrinkage and non-corrosive; the silicone rubber can be used for a long period at the temperature of -60
℃
~
200
℃
with the characteristics of moisture-proof and waterproof, radiation-proof as well as weatherable and anti-ageing.
Using Instructions of Potting encapsulant silicone rubber
1. Preparing: Clean up the coating surface, remove the rust, dust, oil dirt.
2. Pouring: Weigh the silicone and catalyst correctly, mix silicone part A and part B thoroughly, pour onto the electronic components/surface after vacuum degassing.
3. Curing: Room temperature cure or heat-up cure is both workable.
4. It should be use up after open the package, the material must be kept in a cool place sealed well, and it should avoid from contact with moisture in the air.
Technical datasheet of Potting encapsulant silicone rubber
|
Item No. |
MC-E48 |
|
Before curing |
|
|
Appearance |
A: brick red B : transparent |
|
Viscosity (mPa.s 25 °C ) |
3000~6000 |
|
Density (g/cm 3 ) |
1.57±0.02 |
|
Working life (min 25 °C ) |
30 |
|
Curing time (hrs) |
24 |
|
Heat-up at 100 °C ( min) |
10 |
|
After curing |
|
|
Hardness (shore A) |
50~60 |
|
Dielectric breakdown voltage kv/mm 25 °C |
≥20 |
|
Volume resistivity ohm*cm |
1*10 15 |
|
Tensile Strength Mpa |
≥0.6 |
|
Thermal conductivity cm/ °C |
0.525*10 -3 |
|
Working temperature °C |
-30~200 |
Note: Mechanical and electrical performance data tested at 25° C 7 days after curing, relative humidity of 55%; All the tested data is average value.
Packaging of Electronic Potting Silicone Rubber Packs are available in 20kg and 200kg per drum.
Storage & Transportation of Potting encapsulant silicone rubber
1. Keep it from strong sunshine, heat, and store in cool & dry place, well sealed. It has a shelf life of 12 months.
2. It can be stroked and transported as non-dangerous goods.
Certificates
Packing
Market
Customer feedback
- We are happy with MC RTV-2 silicone rubber and quality. I’ve also been very happy with your best service, let’s continue discussions and work on more. --- Mike (from NY,USA)
- 100% love the liquid silicone. I will be ordering more this week. ----Kody (from Turkey)
- We are very pleased with the quality of RTV-2 silicone rubber and the performance.------Richard from UK
- the RTV-2 silicone rubber has arrived and is excellent------John from Iran
- I have selled some RTV molding silicone for my customer, they are very happy, so thank you-----Adam from Morroco.
Order infomation
- MOQ: 200KG
- Trade term: EXW FOB CFR CIF
- Delivery time:ONLY ONE DAY FOR SAMPLE CALL, 5-20 Working Days for Mass Order
