Quick Details
-
Name:
-

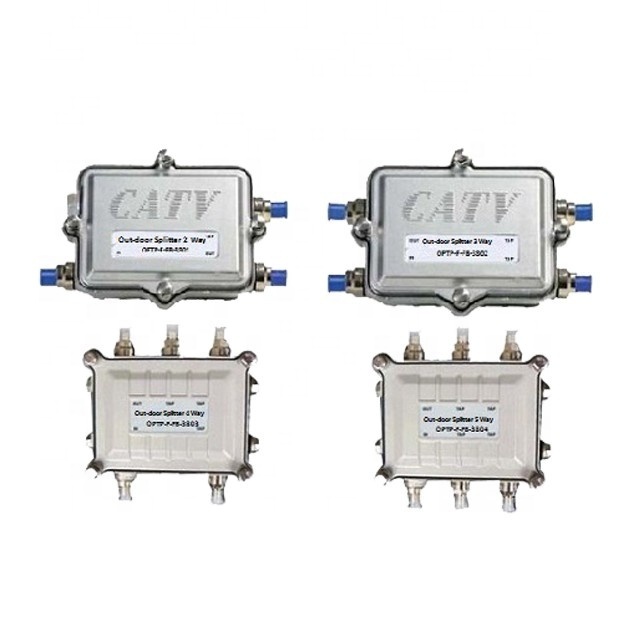

Outdoor CATV Tap
-
Application:
-
CATV network
-
Ways counts:
-
2/3/4/5Way (1~8 ways option)
-
Frequency:
-
5~1000MHz
-
Power pass:
-
6 or 10A AC/DC
-
Half Power pass:
-
Option
-
Shield level:
-
5-1000MH ≥ 100dB
-
Tap Loss:
-
8~22dB
-
Meterial:
-
Aluminum alloy die casting shell, anti-corrosion paint-spray
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OpticTrans Comm
-
Model Number:
-
OPSP-F-FB-3802A/3A/4A/5A
-
Name:
-
Outdoor CATV Tap
-
Application:
-
CATV network
-
Ways counts:
-
2/3/4/5Way (1~8 ways option)
-
Frequency:
-
5~1000MHz
-
Power pass:
-
6 or 10A AC/DC
-
Half Power pass:
-
Option
-
Shield level:
-
5-1000MH ≥ 100dB
-
Tap Loss:
-
8~22dB
-
Meterial:
-
Aluminum alloy die casting shell, anti-corrosion paint-spray
Features
1) Used for field trunk of CATV, good waterproof design
2) 75Ω, 5/8″KS-F trans-connector available
3) Aluminum alloy die casting shell, anti-corrosion paint-spray
4) Adapt to 5-1000MHZ
5) Metal isolation netting, prevention of RF interference, good shield function
6) All ports adapt to pass power: 6 or 10A AC/DC
Technical Parameters
|
2-way Splitter
|
|||
|
Frequency Range (MHz)
|
Insertion Loss (dB)
|
Isolation (dB)
|
Return Loss (dB)
|
|
5
|
≤3.8
|
≥22
|
≥16
|
|
50
|
≤4.0
|
≥22
|
≥16
|
|
550
|
≤4.0
|
≥24
|
≥16
|
|
750
|
≤4.5
|
≥24
|
≥16
|
|
1000
|
≤5.0
|
≥22
|
≥16
|
|
3-way Splitter
|
|||
|
Frequency Range (MHz)
|
Insertion Loss (dB)
|
Isolation (dB)
|
Return Loss (dB)
|
|
5
|
≤5.7
|
≥22
|
≥14
|
|
50
|
≤6.1
|
≥22
|
≥16
|
|
550
|
≤6.6
|
≥24
|
≥16
|
|
750
|
≤7.1
|
≥24
|
≥16
|
|
1000
|
≤7.5
|
≥22
|
≥14
|
|
4-way Splitter
|
|||
|
Frequency Range (MHz)
|
Insertion Loss (dB)
|
Isolation (dB)
|
Return Loss (dB)
|
|
5
|
≤7.8
|
≥22
|
≥14
|
|
50
|
≤8.2
|
≥22
|
≥16
|
|
550
|
≤8.7
|
≥24
|
≥16
|
|
750
|
≤9.0
|
≥24
|
≥16
|
|
1000
|
≤9.2
|
≥22
|
≥14
|
|
5-way Splitter
|
|||
|
Frequency Range (MHz)
|
Insertion Loss (dB)
|
Isolation (dB)
|
Return Loss (dB)
|
|
5
|
≤9.2
|
≥22
|
≥14
|
|
50
|
≤9.8
|
≥22
|
≥16
|
|
550
|
≤10.3
|
≥24
|
≥16
|
|
750
|
≤10.7
|
≥24
|
≥16
|
|
1000
|
≤11.0
|
≥22
|
≥14
|
