Quick Details
-
Power:
-
1.5-3Kw
-
Min. Lifting Height:
-
80m-120mm
-
Table Size:
-
customer customized
-
Overall Dimensions:
-
customer customized
-
Weight:
-
600 kg
-
Product name:
-
Cargo Lifts Warehouse Hydraulic Elevador Work Platforms
-
Material:
-
High Strength Manganese Steel
-
Application:
-
warehouse
-
Voltage:
-
110V,220v,380v
-
Feature:
-
Easy Operation Safety Convenience
-
Color:
-
Customers' Requirements
-
Lift Drive:
-
Hydraulic
-
Power supply:
-
3-phase 380V400v220vCUSTOM
-
Certification:
-
CE
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZHONGXIANG
-
Power:
-
1.5-3Kw
-
Min. Lifting Height:
-
80m-120mm
-
Table Size:
-
customer customized
-
Overall Dimensions:
-
customer customized
-
Weight:
-
600 kg
-
Product name:
-
Cargo Lifts Warehouse Hydraulic Elevador Work Platforms
-
Material:
-
High Strength Manganese Steel
-
Application:
-
warehouse
-
Voltage:
-
110V,220v,380v
-
Feature:
-
Easy Operation Safety Convenience
-
Color:
-
Customers' Requirements
-
Lift Drive:
-
Hydraulic
-
Power supply:
-
3-phase 380V400v220vCUSTOM
-
Certification:
-
CE

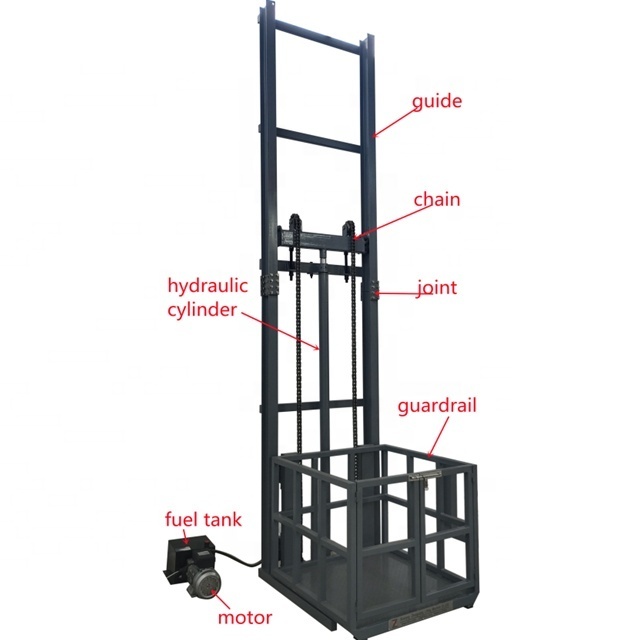

Cargo Lifts Warehouse Hydraulic Elevador
Work Platforms
Guide rail type elevator is a lifting device with good lifting stability, large bearing capacity and a wide range of application. Hydraulic guide lifting platform covers a small area, simple installation, easy to operate, widely used in life. We can customize different products according to the specific needs of customers, suitable for disabled wheelchair lift, household lift and so on.
Cargo Lifts Warehouse Hydraulic Elevador Work PlatformsCargo Lifts Warehouse Hydraulic Elevador Work PlatformsVCargo Lifts Warehouse Hydraulic Elevador Work PlatformsCargo Lifts Warehouse Hydraulic Elevador Work PlatformsCargo Lifts Warehouse Hydraulic Elevador Work Platforms
2. Choice of guardrail
*Way of goods in and out:
3. Product assembly
( Simple installation, no need for professionals . )
4.Technical Parameters:
|
Model |
Platform size L * W (mm) |
Maximum load ( kg ) |
Lifting H eight H ( mm ) |
M inimum height X ( mm ) |
Barrier height B ( mm ) |
Lifting speed mm/s |
Power ( Kw ) |
Voltage ( V ) |
Frequency ( Hz ) |
|
SJD0.2-3 |
1200*800 |
200 |
3000 |
80 |
1000 |
80 |
1.5 |
380/custom |
50 |
|
SJD0.3-3 |
1200*800 |
300 |
3000 |
100 |
1000 |
80 |
1.5 |
380/custom |
50 |
|
SJD0.5-4 |
1500*1500 |
500 |
4000 |
120 |
1000 |
75 |
2 |
380/custom |
50 |
|
custom |
|||||||||
