Quick Details
-
Output Speed:
-
150-2000rpm
-
Warranty:
-
1 year
-
Weight (KG):
-
6
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Drivemotion
-
Product name:
-
Spiral bevel gear reducer for farm tractor
-
Material of housing:
-
Cast Iron
-
Material of gear:
-
Alloyed steel
-
Mount Position:
-
6 positions
-
Feature 1:
-
power steering
-
Feature 2:
-
speed reducer
-
Feature 3:
-
speed increaser
-
weight:
-
6-115kg
-
Ratio:
-
1/1.5/2/3/4/5
Quick Details
-
Gearing Arrangement:
-
Spiral Bevel
-
Output Torque:
-
10-5500Nm
-
Input Speed:
-
750-2000rpm
-
Output Speed:
-
150-2000rpm
-
Warranty:
-
1 year
-
Weight (KG):
-
6
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Drivemotion
-
Product name:
-
Spiral bevel gear reducer for farm tractor
-
Material of housing:
-
Cast Iron
-
Material of gear:
-
Alloyed steel
-
Mount Position:
-
6 positions
-
Feature 1:
-
power steering
-
Feature 2:
-
speed reducer
-
Feature 3:
-
speed increaser
-
weight:
-
6-115kg
-
Ratio:
-
1/1.5/2/3/4/5
Product Name:

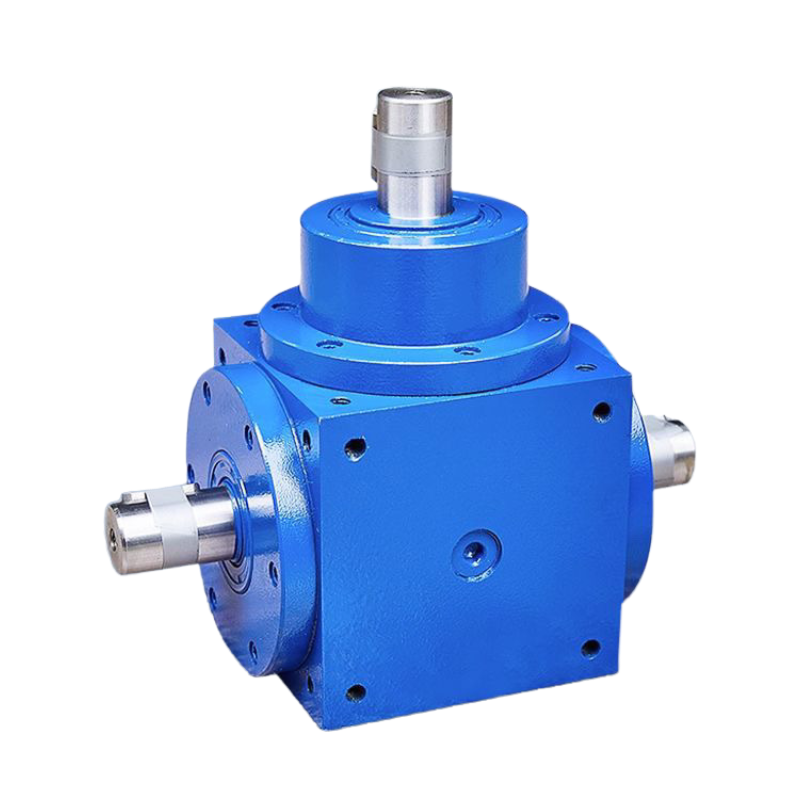

Right Angle Spiral Bevel Gearbox Forward and Reverse High Efficiency Speed Reducer Increaser Ratio 1:1 1:2 Customized Splines
Product Features:
1. The box shape is hexahedron. It can be adapted to the installation in different directions.
2. The commutator is designed for long service life, large bearing capacity, smooth transmission and low noise. Gear linear speed can be as high as 40 meters, transmission efficiency is as high as 94%~98%.
3. Arc tooth bevel gears are made of high quality low carbon alloy structural steel. By carburizing quenching heat treatment. And by grinding run-in. Realization of high precision hardened closed gear transmission.
4. HD series commutator has seven kinds of specifications, with a wide selection range and various output shafts, which can meet the needs of various occasions.
5. It can realize two kinds of transmission modes:
deceleration and speed increase.
