Quick Details
-
Model Number:
-
THC30A (Transparent cover)
-
Max. Current:
-
30A
-
Mini. Interval:
-
1 Minute
-
Full time range:
-
Per week or per day cycle
-
Dispaly:
-
LCD
-
Rated voltage:
-
AC 220V 50/60Hz
-
Contact Capacity:
-
30A 250V AC, other Volts available
-
Power reserve:
-
3 Years
-
Battery:
-
Lithium battery
-
Size:
-
86.5x36x65.5mm
-
Mounting:
-
Din Rail
-
Certificate:
-
CE
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SUPOELE
-
Model Number:
-
THC30A (Transparent cover)
-
Max. Current:
-
30A
-
Mini. Interval:
-
1 Minute
-
Full time range:
-
Per week or per day cycle
-
Dispaly:
-
LCD
-
Rated voltage:
-
AC 220V 50/60Hz
-
Contact Capacity:
-
30A 250V AC, other Volts available
-
Power reserve:
-
3 Years
-
Battery:
-
Lithium battery
-
Size:
-
86.5x36x65.5mm
-
Mounting:
-
Din Rail
-
Certificate:
-
CE
-
Certification:
-
CE

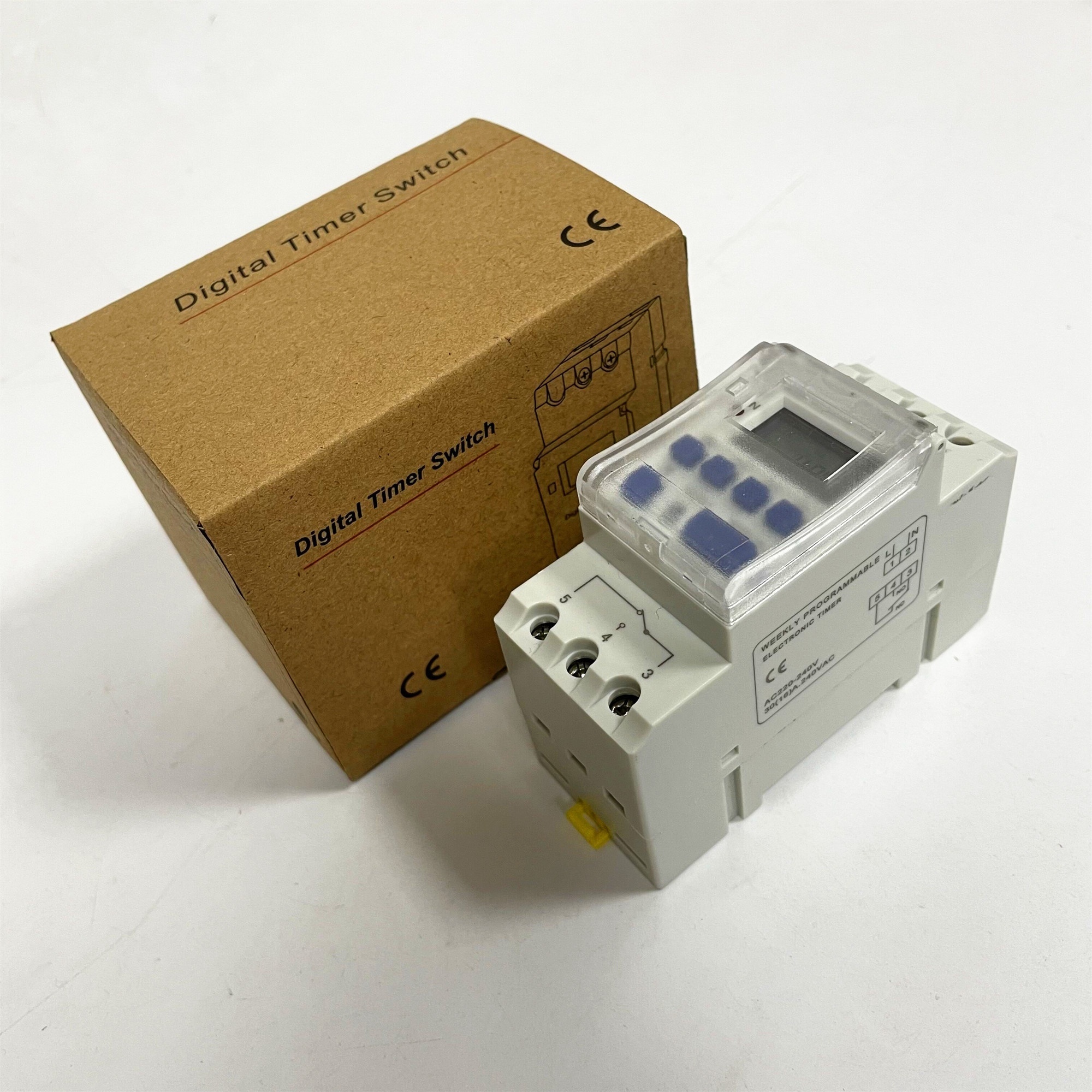

AHC15A THC15A AC 220V 240V 30A Clear Front Transparent Cover Daily or weekly Programmable Digital Timer Time Switch
Latest technology COMS quartz Mico-controller
Digital electronics general purpose time switch with daily and weekly programs
Repeat programs with 17ON/ OFF setting and manual over-ride
Lithium battery power reserve when electric supply cut off
Technical Data
Voltage limit: AC180V~250V(50/60Hz)
Hysteresis: ≤1s/d(at 25°c)
On/off operation: 17ON/OFF
Minimum interval: 1 minute
Weight: Approx 150g
Display: LCD
Battery backup: 150h
Number of circuits: 1c
Load capacity: 16A 250VAC(ohmic load cosΦ=1)
Service life: Mechanically:10 7
Electrically:10 5
Ambient temperature:-10~55°c
Storage temperature:-20~70°c
Power consumption: 7.5VA (Max.)
OPERATING INSTRUCTION:
1.First time use this timer switch,please input AC and let battery recharge,after then press reset key.
2.At first time,the timer switch is in 24h mode.If you want change to 12 mode please press on "©"
key 5s,and LCD will display AM.If you want re-change to 24h mode,and press on "©" key 5s to return.
3.Programming:
|
Step
|
Key | Programming |
| 1 | Press P | Setting 1 ON time(display 1 ON) |
| 2 | Press D+ | Select days of week(If you want same set in every day,you need not press this key |
| 3 | Press H+/M+ | Set hours and minutes |
| 4 | Press P | Setting 1 OFF time(display 1 OFF) |
| 5 | Press D+ | Select days of week(If you want same set in every day,you need not press this key) |
| 6 | Press H+/M+ | Set hours and minutes |
| 7 | Repeat step 2-6 | Set 2-8 on/off time |
| 8 | Press © |
End
|
For cancel engagements,press"MANUAL" then "--:--" is displayed on LCD to confirm cancel.May press "MANUAL" again to resume initial setting.
*10 deferent mode:(1.MO 2.TU 3.WE 4.TH 5.FR 6.SA 7.SU 8.MO TU WE TH FR 9.SA SU 10.MO TU WE TH FR SA SU)
**If you need not 8 time setting press " © "key to the end
4. CLOCK SETTING
(1) Press " © " and " D+ " together till correct date is shown.
(2) Press " © " and " H+ " together till correct hour is shown.
(3) Press " © " and " M+ " together till correct min is shown.
(4) Press " MANUAL " key to display ON AUTO or AUTO OFF.(If this clock in your program is ON selects ON AUTO,and this clock in your program is OFF selects AUTO OFF)
5.If you alway want to use time switch ON or OFF,Please Press "MANUAL" key to display " ON " or " OFF "
