Quick Details
-
Output Speed:
-
3.75r/min
-
Weight (KG):
-
24
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Ybang
-
Material:
-
Casting iron
-
Color:
-
Blue,Green, etc
-
Type:
-
Flange Mount Truck Pto Gear Box
-
Ratio:
-
600
-
Material of shaft:
-
Installation loioncat
-
Installation:
-
Foot or Flange
-
Service:
-
OEM is available
-
Seal:
-
CTY,CFW, SKF or specified
-
Bearing:
-
C&U, NSK, SKF or specified
-
Lubricant:
-
Synthetic & Mineral
Quick Details
-
Gearing Arrangement:
-
Worm
-
Output Torque:
-
250N.m
-
Input Speed:
-
1500r/min
-
Output Speed:
-
3.75r/min
-
Weight (KG):
-
24
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Ybang
-
Material:
-
Casting iron
-
Color:
-
Blue,Green, etc
-
Type:
-
Flange Mount Truck Pto Gear Box
-
Ratio:
-
600
-
Material of shaft:
-
Installation loioncat
-
Installation:
-
Foot or Flange
-
Service:
-
OEM is available
-
Seal:
-
CTY,CFW, SKF or specified
-
Bearing:
-
C&U, NSK, SKF or specified
-
Lubricant:
-
Synthetic & Mineral
Small Volume Gearbox for Pan Mixer
Main Products:
Obang Machinery, specialized in various speed reducers, including R, F, K, S series helical geared
motor, BH series helical gear units, BB series bevel-helical gear unit, T series spiral bevel gear
steering device, WP series worm gear speed reducer.
There are three types of WP series worm gear speed reducer:
1. Single Speed Reducer,
2. Double Speed Reducer,
3. Universal Speed Reducer.
|
Type: |

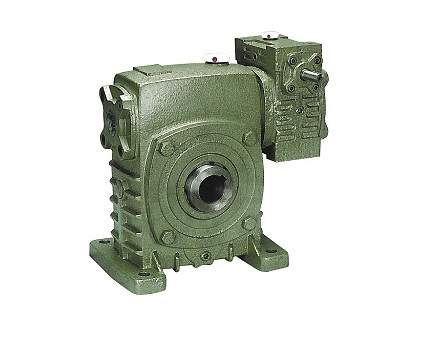

WP series Single-stage Speed Reducer-Iron Worm Gear Box |
|
Model: |
WPEKS40-70 1:600 |
|
Others: |
40,60,70,80,100,120,135,147, 155,175,200,250 |
|
Color: |
Blue/Green or on customer request |
|
Material: |
HT200 |
|
Input power: |
0.23kw(Under the case of input speed 1500rpm) |
|
Ratio: |
600 |
|
Output torque: |
250N.m |
|
Bearing: |
C&U, NSK, SKF or specified |
|
Seal: |
CTY, CFW, SKF or specified |
|
Product features: |
It adopts American technology with durability, stable transmission, large carrying capacity, low noise, compact structure, large transmission ratio and wide power. |
|
Application areas: |
Textile printing and dyeing, rubber and plastic machinery, building materials machinery, environment protection machinery, lifting machinery, food packaging, metallurgical machinery, petrochemical industry, stage machinery and new energy field. |
|
Lubricant: |
Synthetic |
|
Warranty: |
1Year |
Design characteristics:
1.Use low-carbon cast iron cementation processing completely.
2.The gear and the gear shaft precision is high.
3.S mall volume , High torque.
4. Can be 2 or 3 sets of gear reducer composed of multi-level, to get great gear ratio.
5.After 300-hour operation, please change the oil, and flush the gear uint with suitable detergents.
WP worm gearbox Advantage:
1. Product advantages: High modular design, making all the series apply fewer components, it can conveniently equip electric motor or other driving forces of various types.
2. The cabinet applies integral and high-strength casting mode, which has high rigidity and vibration resistance performance.
3. The gear unit applies low-carbon alloy steel quenching gear grinding process and shape-correction technology, making the products have larger bearing capacity. The operation is reliable, which can decrease noise and improve efficiency. Transmission ratio is divided into details, the scope is wide. Combined type can obtain larger transmission ratio.
4. Gear unit is appropriate to be mounted at any space and any angle.
Gear reduction boxes are used to transfer rotation and torque from motor to working machine. Most reduction gear boxes are used to decrease speed by gears in the gear box.
Reduction gear box is much widely used in modern machinery systems, since it’s ratio can be up to 1:100 easily, which is much bigger than all gears box, and its demission is much smaller than all gears when ratio is same.
Maintenance:
After 300-hour operation, please change the oil, and flush the gear unit with suitable detergents.
Pls do not mix the mineral oil and synthetic oil.
pls check the oil level in regular time.
(1) With excellent quality and Reasonable price
(2) Promise to delivery on time
(3) Safe, reliable, economical and durable
(4) Stable transmission, quiet operation
(5) High heat-radiating efficiency, high carrying ability
(6) Every product must be tested before sending
