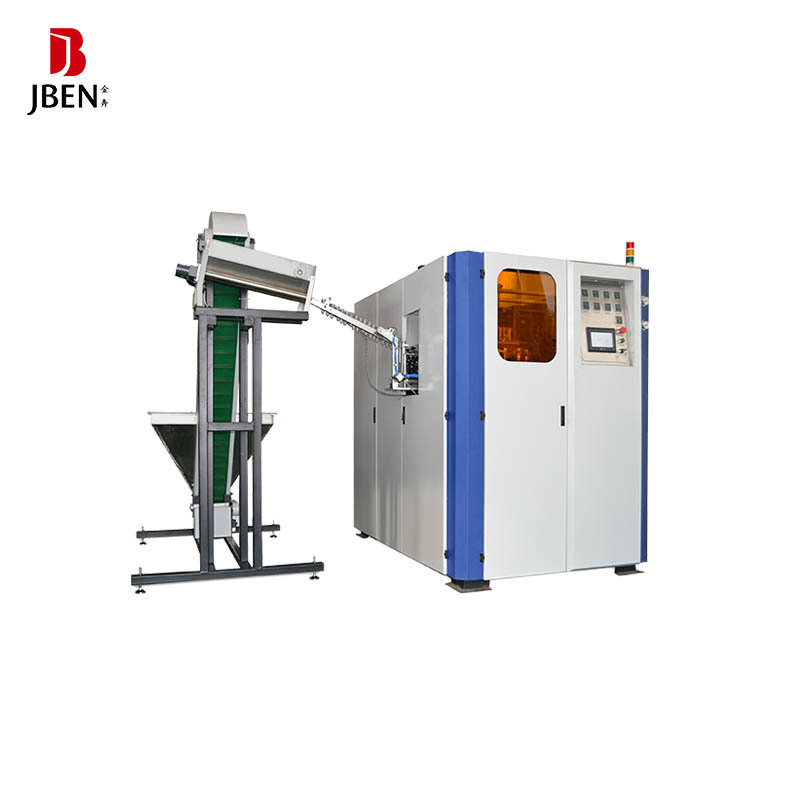

Fully Automatic 2L Plastic Bottle Making Machine Pakistan PET Bottle Blowing Machine Manufacturer

Fully Automatic 2L Plastic Bottle Making Machine Pakistan PET Bottle Blowing Machine Manufacturer

FOB Reference Price: Get Latest Price

≥1 Sets

US $10000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Bottle Volume(ml):: 2000 ml

Place of Origin:: Shanghai, China

Brand Name:: JBEN

Year:: 5

Voltage:: 220V / 380 V

Dimension(L*W*H):: CUSTOMIZED

Hollow part volume:: more than 50ml

Clamping Force (kN):: 50

Power (kW):: 20

Weight (KG):: 2200 KG

After Warranty Service:: Video technical support, Online support, Field maintenance and repair service

Local Service Location:: Nigeria, Sri Lanka, Malaysia, Brazil, Canada, Mexico, Thailand, India, Turkey, United States

After-sales Service Provided:: Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support

Blow Moulding Type:: Stretch Blow Moulding

Product name:: Fully Automatic 2L Plastic Bottle Making Machine Pakistan

Name:: PET Bottle Blowing Machine Manufacturer

Suitable bottle:: 100-5000ml Bottle

Type:: Bottle Blowing Machine

Key words:: PET Bottle Blowing Machine

Function:: Blow Pet Bottle

Advantages:: Low Energy Consumption

Use:: Making PET Bottle

Raw material:: PET Plastic Bottle Preform

PLC:: SIMENS(Germany)

Production Capacity (BPH):: 2000 BPH

Certification:: CE, ISO9001

Quick Details

Neck Diameter(mm):: 38 mm

Max.Bottle Diameter(mm):: 120 mm

Max.Bottle Height(mm):: 300 mm

Bottle Volume(ml):: 2000 ml

Place of Origin:: Shanghai, China

Brand Name:: JBEN

Year:: 5

Voltage:: 220V / 380 V

Dimension(L*W*H):: CUSTOMIZED

Hollow part volume:: more than 50ml

Clamping Force (kN):: 50

Power (kW):: 20

Weight (KG):: 2200 KG

After Warranty Service:: Video technical support, Online support, Field maintenance and repair service

Local Service Location:: Nigeria, Sri Lanka, Malaysia, Brazil, Canada, Mexico, Thailand, India, Turkey, United States

After-sales Service Provided:: Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support

Blow Moulding Type:: Stretch Blow Moulding

Product name:: Fully Automatic 2L Plastic Bottle Making Machine Pakistan

Name:: PET Bottle Blowing Machine Manufacturer

Suitable bottle:: 100-5000ml Bottle

Type:: Bottle Blowing Machine

Key words:: PET Bottle Blowing Machine

Function:: Blow Pet Bottle

Advantages:: Low Energy Consumption

Use:: Making PET Bottle

Raw material:: PET Plastic Bottle Preform

PLC:: SIMENS(Germany)

Production Capacity (BPH):: 2000 BPH

Certification:: CE, ISO9001

Product Description

# Main Technical Parameter #

Type					HQ- 2L - 2000
Container	Number Of Cavity	Cavities	2
		Output	Pcs/Hr	1600-2000
		Max Container Volume	L	2
		Max Neck Diameter	mm	38
		Max Container Diameter	mm	120
		Mac Container Height	mm	300-330
Electrical	Number Of Lamp	pcs	32
		Max Heating Power	kw	48
		Actual Power Consumption	kw	24
Machine	Machine Dimension	m	240016001800
Machine		Machine Weight	T	2500

# Application #

Suitable for 50ml-1l bottles

– Hot- filling bottles

– Mineral Water Bottles

– Carbonated Drinking Bottles

– Energy Drink Bottles

– Wine Bottles

– Milk Bottles

– Juice Bottles

– Oil Bottles ( with handle )

– Medical Bottles

– Cosmetic Bottles

– Jar ( Wide Mouth ) Bottles

# Fully Automatic PET Bottle Blowing Machine #

HQ-L Fully automatic PET bottle blowing machine is the most stable two step blow down equipment of our factory, from one cavity to six cavity and can blow bottles of different capacity, from 0.1 L to 1 L, used for the production of PET/PP bottles of various shapes

# Advantages #

1. Stable performance with advanced PLC.
2 . No contamination and low noise with the air cylinder to drive the action instead of the oil

3 . Strong clamping force with high pressure and double crank links to lock the mold.

4 . Low cost , high efficiency, easy operation, easy maintenance, etc, with automatic technological process.

# Servo Automatic Bottle Blowing Machine #

1. The automatic PET bottle blowing machine with safety ratio, no harm to the human, avoid the danger of taking out bottles by hand, reduce the loss of accident, improve the efficiency.

2. High speed high efficiency : the new model machine equals to 6 semi automatic.

3. Saving labor: The machine operate by one person or one person can operate two sets, saving 3~4 labors.

4. Stable performance: Adopts world famous brand PLC touch screen Human~Computer Interface, have the characteristics of accuracy, high speed, stable performance. The structure is simple, heater and main machine adopts slipway, convenient for maintenance.

5.The automatic blowing machine adopts double crank shaft, main connecting rod linkage with strong clamping force, have the function of mould close boost pressure when high pressure blowing bottles, the action stable and reliable.

# Semi Automatic PET Bottle Blowing Machine #

HONGQI semi-automatic blowing machine is an advanced 2-step PET blowing equipment. It is widey used for different shaped water bottles, CSD bottles and other beverage containers with PET, PP material. Infred self-rotary heater adopted. Mould closing is with double crank, to avoid mould expension (ensure half line very thin) under high pressure. Machine is compatible, with approprite design, easy and safe to operate.

Auxiliary Machine

To operate the PET bottle blowing machine, you may also need some auxiliary machine. such as air compressor, air filter, air dryer, air tank and so on. this machine is needed to protect the machine from running smoothly and safe.

Sample And Mold

Our Molds adopt stainless steel materials and according to your demand to customized. if you do not have plan about bottle, we can also help you to design the bottle.
