Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shunli Motor
-
Model Number:
-
RS-775
-
Torque:
-
customized
-
Size:
-
67*42.2mm
-
Speed:
-
Max 25000rpm
-
Current:
-
Max 3A
-
Rated Torque:
-
1.2kg.cm
-
Brush Type:
-
Carbon brush or Metal brush
-
Magnet:
-
Strong or Normal one for option
-
shaft:
-
customized
-
Rated Voltage:
-
12V
-
End play:
-
Max 0.3mm
-
Product Name:
-
SRS-775SA DC Motor
Quick Details
-
Speed(RPM):
-
customized
-
Continuous Current(A):
-
customized
-
Efficiency:
-
70%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shunli Motor
-
Model Number:
-
RS-775
-
Torque:
-
customized
-
Size:
-
67*42.2mm
-
Speed:
-
Max 25000rpm
-
Current:
-
Max 3A
-
Rated Torque:
-
1.2kg.cm
-
Brush Type:
-
Carbon brush or Metal brush
-
Magnet:
-
Strong or Normal one for option
-
shaft:
-
customized
-
Rated Voltage:
-
12V
-
End play:
-
Max 0.3mm
-
Product Name:
-
SRS-775SA DC Motor

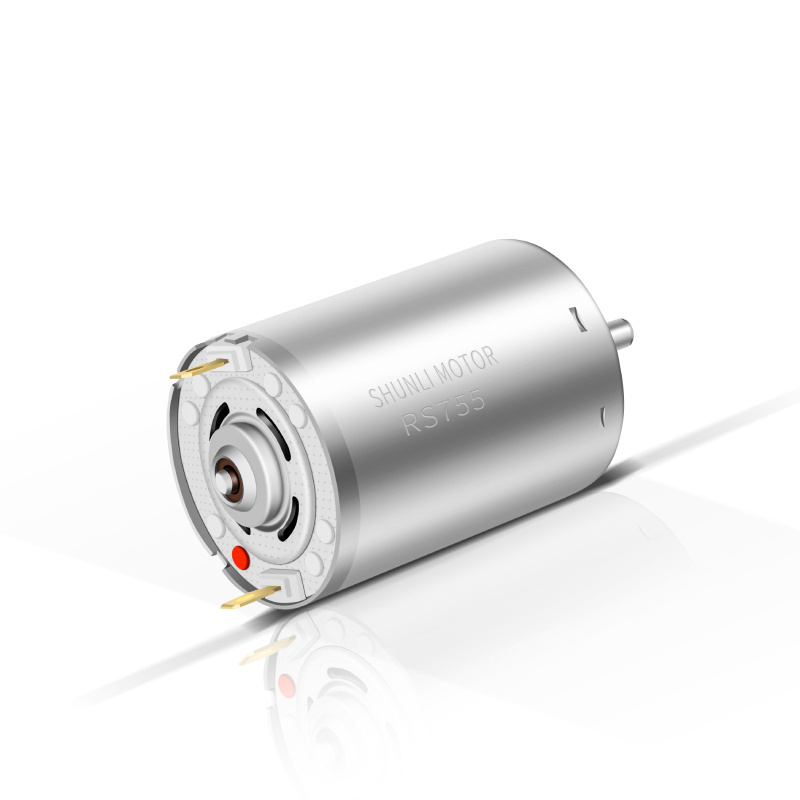

Silent Small Permanent Magnet High Speed 6v 9v 18v 24v 30v Mini 12 Volt Motor Dc
Product Details
Motor Customized Specification, Please contact me.
Reference Drawing
------ RS - 755 H
------ RS - 775 H
The length of shaft can be customized, Please contact me.
|
PMDC MOTOR Technical Date |
|||||||||||
|
Model |
|||||||||||
|
Operating Range
|
Nominal
|
Speed |
Current |
Speed |
Current |
Torque |
Power |
Current |
Torque |
||
|
RPM |
A |
RPM |
A |
mN.m / gf.cm |
W |
A |
mN.m / gf.cm |
||||
|
RS-770H |
8523R |
6.0~12.0 |
12 VDC |
15000 |
2.2 |
13177 |
15.91 |
81/826.2 |
111.8 |
115 |
666.9/6802 |
|
RS-775H |
25110R |
6.0~24.0 |
24 VDC |
3478 |
0.15 |
2925 |
0.75 |
44.4/452.9 |
13.35 |
4.07 |
245.7/2506 |
