- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
12V
-
Dimension(L*W*H):
-
3947x1716x1791mm
-
Weight:
-
7175kg
-
Air capacity:
-
1154cfm
-
Warranty of core components:
-
1YEAR
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ATLAS COPCO
-
Model Number:
-
Y1300
-
Voltage:
-
12V
-
Dimension(L*W*H):
-
3947x1716x1791mm
-
Weight:
-
7175kg
-
Air capacity:
-
1154cfm
-
Warranty of core components:
-
1YEAR
Atlas Copco is a leading manufacturer of portable compressed air machines in the world. Over the years, we have consistently listened to our customers and developed machines that exceed their expectations.
Product Description

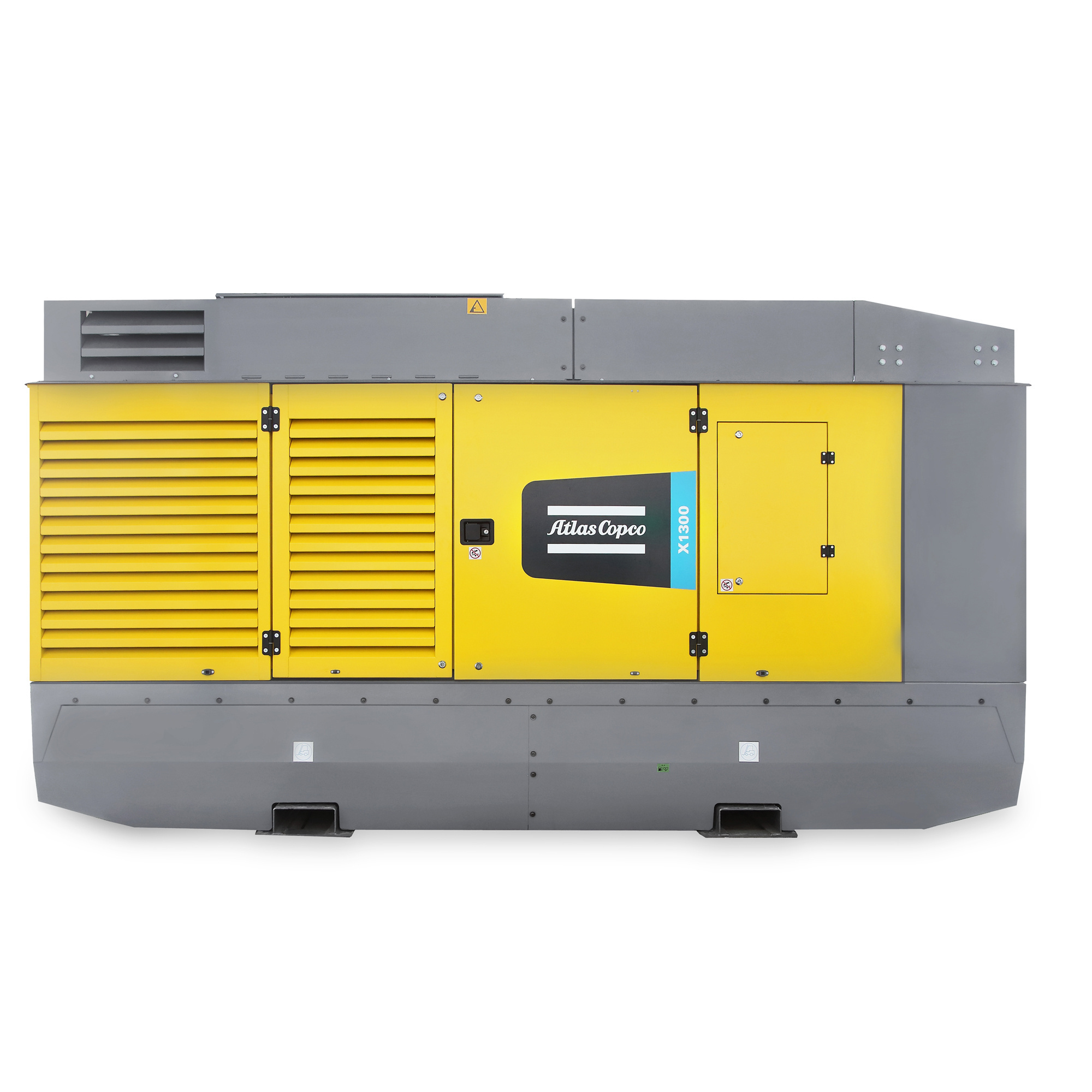

ATLAS COPCO portable diesel air compressor technical data
| Compressor Data | Y1300 |
| Free Air Delivery @ Normal Working Pressure | 1300cfm/min-----1154cfm/min |
| Normal Working Pressure | 15Bar------------35Bar |
| Air Receiver Capacity | 87.8L |
| Fuel Tank Capacity | 876L |
| Outlet Valve Configuration | 1 x 2" G |
| Nominal working condition | Inlet pressure 1bar,Humidity0%,Temp20 °C |
| Sound Pressure Level (ISO2125) | 109 dB(A) |
| Maximum Ambient Temperature at sea level | 50 °C |
| Diesel Engine Data | Cummins QSZ13-C550-30 |
| Horsepower Developed @ Rated Speed | 410kW |
| Cylinders | 6 |
| Engine Coolant Capacity | 69.7L |
| Engine Oil Capacity | 45.5L |
| Maximum Loaded Speed | 1900/1700RPM |
| Minimum Unloading speed | 1300RPM |
| Dimensions | Standard Towing Speed 20 km/h |
| Length | 5000 mm ( within towbar ) |
| Width | 2300 mm |
| Height | 2600 mm |
| Weight ( filled with oil & coolant , Initial fuel ) | 7020kg |
| Cylinders | 6 |
| Cooling System | Coolant liquid |
| Engine Coolant Capacity | 52 L |
| Engine Oil Capacity | 58 L |
| Load Factor | 100% |
| Dimensions | Standard Towing Speed 20 km/h |
| Length | 5000 mm |
| Width | 2250 mm |
| Height | 2510 mm |
| Weight | 7175kg |
