Quick Details
-
Brand Name:
-
Bivocom
-
Supplier Type:
-
Manufacturer
-
Touch Screen:
-
7" TFT Touch Screen, QT programmable
-
Ethernet Ports:
-
1-WAN, 1-LAN(2-LAN configurable)
-
DI:
-
4-Digital input, 0-30V
-
DO:
-
4-Relay
-
ADC:
-
8-Analog input(4-20mA, or 0-5V)
-
I2C:
-
1
-
TTL:
-
1
-
Power Output(DC):
-
5
-
External Storage:
-
1-USB, 1-TF card slot
-
Programming:
-
Python, C/C++, Node-RED
Quick Details
-
Application:
-
Smart pump, tank level monitoring, wastewater
-
Model Number:
-
TG462-LF
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Bivocom
-
Supplier Type:
-
Manufacturer
-
Touch Screen:
-
7" TFT Touch Screen, QT programmable
-
Ethernet Ports:
-
1-WAN, 1-LAN(2-LAN configurable)
-
DI:
-
4-Digital input, 0-30V
-
DO:
-
4-Relay
-
ADC:
-
8-Analog input(4-20mA, or 0-5V)
-
I2C:
-
1
-
TTL:
-
1
-
Power Output(DC):
-
5
-
External Storage:
-
1-USB, 1-TF card slot
-
Programming:
-
Python, C/C++, Node-RED
Key Features
-
High-performance 32-bit ARM based CPU, and operational temperature ranges from -35 °C to +75 °C, providing a rugged system for running 24x7 in harsh environment - OpenWrt based Linux OS, provides Node-Red, QT and Python programming environment, flexible for secondary development, and OEM/ODM are available for equipment manufacturers
- Rich I/O and protocols, suitable for the mainstream sensors and controllers; 1-WAN, 1-LAN, USB, 4- RS232, 3-RS485, 1-I2C, 1-TTL, 8-ADC, 4-DI, 4-DO, 5-Power Output, TF card slot, WIFI*, GPS*
- Large capacity of local data storage with flash up to 1GB, and additional Micro SD card up to 32GB
- 7 inch HD touch screen4, easy for local real time and historic data query, system or equipment configuration and maintenance
- LTE CAT 4 upload speed of up to 50Mbps and download speed up to 150Mbps providing ample bandwidth for high data demand applications
Introduction
Extend your IoT analytic at the edge network

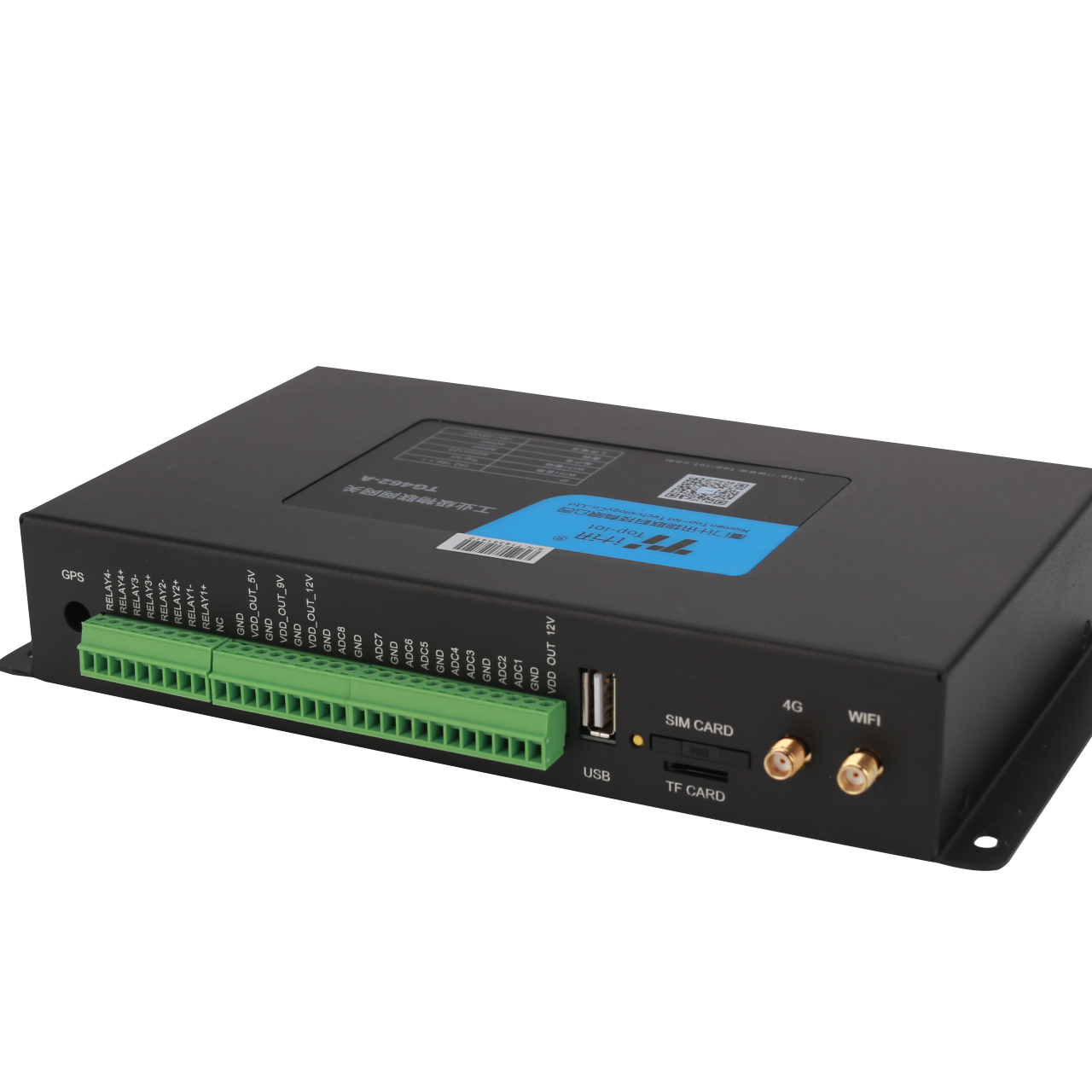

- The TG462/TG462S Industrial cellular IoT Edge Gateways are designed for connecting diverse industrial sensors and controllers to cloud via 4G LTE/3G cellular network, which is suitable for IIoT and M2M applications that require secure and rugged LTE connectivity in harsh environment, such as water&waste water, gas&oil, industry 4.0, smart city, environment, etc.
- With rich interfaces, such as ethernet ports, RS232/RS485, digital inputs, analog inputs, relay outputs, I2C, power output, USB, GPS, WIFI, etc., The TG462/TG462S Edge Gateways allow users to integrate legacy systems with modern sensors. With high-performance 32-bit ARM-based CPU, Modbus RTU/TCP, MQTT, TCP/IP, and customized protocols, as well as up to 1G flash and 32G micro SD local data storage, enables users to collect, store and process data at IoT edge network. Besides, TG462S is embedded with a 7 inch HD TFT touch screen provides a better user experience for field data display and maintenance. In addition, the 4G LTE and VPN provide ample bandwidth and secure connectivity for transferring field data to remote server.
- TG462/TG462S is designed based on OpenWrt Linux OS, allows the developers to install their own application based on Node-Red, C/C++, Python or LUA with Bivocom SDK and API, easy and quickly help you to bring your IoT concept to reality .
