Quick Details
-
Panel Size:
-
7 Segment LED Display, 7 Segment LED Display
-
Place of Origin:
-
Guangdong, China
-
use:
-
electrical equipment, small home appliances, automotive electronics, water heater, washing machine, Refrigerater, rice cooker, air conditioner, e-cigarette
-
Pixel Pitch:
-
Other, Other
-
Specification:
-
3-digit 7 Segment LED Display, 4-digit 7 Segment LED Display, 2-digit 7 Segment LED Display, 1-digit 7 Segment LED Display
-
Model Number:
-
WZ04021YG
-
Usage:
-
Outdoor/Indoor
-
Emitting Color:
-
Red/Green/Bule/White/Yellow/Orange/Purple/Amber
-
Digit Number:
-
Single Digit
-
Size:
-
0.4"/ 0.4 inch
-
Lens Color:
-
Black Face/ White Segment
-
Wavelength:
-
450-480 nm
-
VF:
-
1.8-2.2 V/3.0-3.6V
-
Polarity:
-
Common Anode/Common Cathode
Quick Details
-
Application:
-
Indoor
-
Type:
-
LED
-
Brand Name:
-
wanzhou, wanzhou
-
Panel Size:
-
7 Segment LED Display, 7 Segment LED Display
-
Place of Origin:
-
Guangdong, China
-
use:
-
electrical equipment, small home appliances, automotive electronics, water heater, washing machine, Refrigerater, rice cooker, air conditioner, e-cigarette
-
Pixel Pitch:
-
Other, Other
-
Specification:
-
3-digit 7 Segment LED Display, 4-digit 7 Segment LED Display, 2-digit 7 Segment LED Display, 1-digit 7 Segment LED Display
-
Model Number:
-
WZ04021YG
-
Usage:
-
Outdoor/Indoor
-
Emitting Color:
-
Red/Green/Bule/White/Yellow/Orange/Purple/Amber
-
Digit Number:
-
Single Digit
-
Size:
-
0.4"/ 0.4 inch
-
Lens Color:
-
Black Face/ White Segment
-
Wavelength:
-
450-480 nm
-
VF:
-
1.8-2.2 V/3.0-3.6V
-
Polarity:
-
Common Anode/Common Cathode

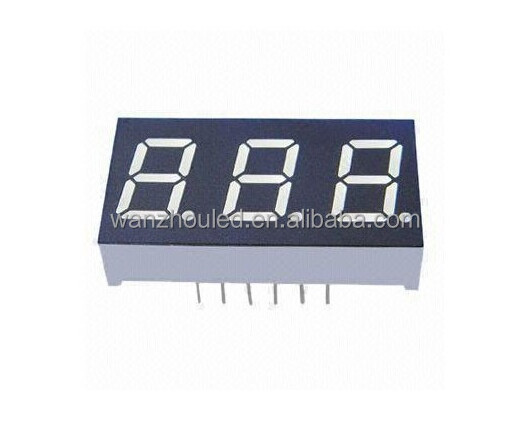

Product show
Luminous Intensity
Red: 50 mcd to 60 mcd
hight bright red: 70mcd to 80mcd
blue: 40mcd to 50mcd
pure green: 180mcd to 200mcd
yellow: 14mcd to50mcd
amber: 30mcd
purple:
orange:
Features
1) LED numeric & alphanumeric displays for indoor, semi-outdoor and outdoor application.
2) Digit height: from 0.28" to 20" (0.28", 0.3", 0.36", 0.39", 0.4", 0.5",0.52", 0.56",0.8", 1.0", 1.2", 1.5", 1.8", 2.3", 3.0",
4.0", 5.0", 8.0", 10", 12", 16", 20".)
3) 1-digit, 2-digits, 3-digits, 4-digits, 6-digits available with black or grey face.
4) Various emitting colors: red(640nm),yellow green (572nm),pure green(525nm),yellow(590nm),blue(430nm), pure blue(470nm).
5) Applications: elevator/lift, bank exchange rate display, led clock display, led oil price display for gas satation and other
different display areas of equipment/machine.
Red: 50 mcd to 60 mcd
hight bright red: 70mcd to 80mcd
blue: 40mcd to 50mcd
pure green: 180mcd to 200mcd
yellow: 14mcd to50mcd
amber: 30mcd
purple:
orange:
Features
1) LED numeric & alphanumeric displays for indoor, semi-outdoor and outdoor application.
2) Digit height: from 0.28" to 20" (0.28", 0.3", 0.36", 0.39", 0.4", 0.5",0.52", 0.56",0.8", 1.0", 1.2", 1.5", 1.8", 2.3", 3.0",
4.0", 5.0", 8.0", 10", 12", 16", 20".)
3) 1-digit, 2-digits, 3-digits, 4-digits, 6-digits available with black or grey face.
4) Various emitting colors: red(640nm),yellow green (572nm),pure green(525nm),yellow(590nm),blue(430nm), pure blue(470nm).
5) Applications: elevator/lift, bank exchange rate display, led clock display, led oil price display for gas satation and other
different display areas of equipment/machine.
1.Electrical optical charactertistics(Ta25°C)
|
Parameter
|
Symbol
|
Min
|
Type
|
ax
|
Unit
|
Test Condition
|
|
Luminous Intensity
|
IV
|
50
|
60
|
70
|
mcd/cm2
|
IF=20mA
|
|
Luminous Intensity
|
IV
|
50
|
60
|
70
|
mcd/cm2
|
IF=20mA
|
|
Dominant Wavelength
|
λd
|
|
|
|
nm
|
IF=20mA
|
|
Forward Voltage
|
Vf
|
20
|
21
|
23
|
V
|
IF=20mA
|
|
Reverse Current
|
IR
|
|
|
10
|
uA
|
VR=5V
|
|
Suggestion Forward Current
|
IF
|
3
|
5-10
|
20
|
mA
|
IF=20mA
|
2.Absolute Maximum Ratings (Ta=25°C):
|
Parameter
|
Rating
|
Unit
|
|
|
Reverse Voltage
|
25/8
|
V
|
|
|
Power Dissipation,Per Dice
|
60
|
mW/chip
|
|
|
Operating Temperature Ranger
|
-40~+85
|
°C
|
|
|
Storage Humidity
|
45%~85%
|
°F
|
|
|
Storage Temperature Ranger
|
-40~+100
|
°C
|
|
|
Soldering Temperature
|
260°C For 3 Seconds
|
|
|
|
Peak IF(ma) (1/10Duty Cycle 0.1ms Pulse Width)
|
100
|
mA/chip
|
|
|
Continuous Forward Current
|
20
|
mA/chip
|
|
