Latest Software version: V18
- Product Details
- {{item.text}}
Quick Details
-
Applicable Models:
-
For most cars
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jfind
-
Model Number:
-
A0170
-
Warranty:
-
1 Years
-
Product Name:
-
MPPS V18 ECU Chip Tuning tool
-
Model Name:
-
MPPS V18
-
Function:
-
ECU Programming
-
Special Features:
-
Read / write flash
-
Item Type:
-
Powerful programming tool
-
Language:
-
Multi-Language
-
Connection:
-
Standard OBD II
-
MOQ:
-
1pcs
-
Package Size:
-
17*14*5cm
-
Weight:
-
0.25kg
Quick Details
-
Car Fitment:
-
Universal
-
Voltage:
-
Standard
-
Power:
-
W
-
Applicable Models:
-
For most cars
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jfind
-
Model Number:
-
A0170
-
Warranty:
-
1 Years
-
Product Name:
-
MPPS V18 ECU Chip Tuning tool
-
Model Name:
-
MPPS V18
-
Function:
-
ECU Programming
-
Special Features:
-
Read / write flash
-
Item Type:
-
Powerful programming tool
-
Language:
-
Multi-Language
-
Connection:
-
Standard OBD II
-
MOQ:
-
1pcs
-
Package Size:
-
17*14*5cm
-
Weight:
-
0.25kg
Product Description

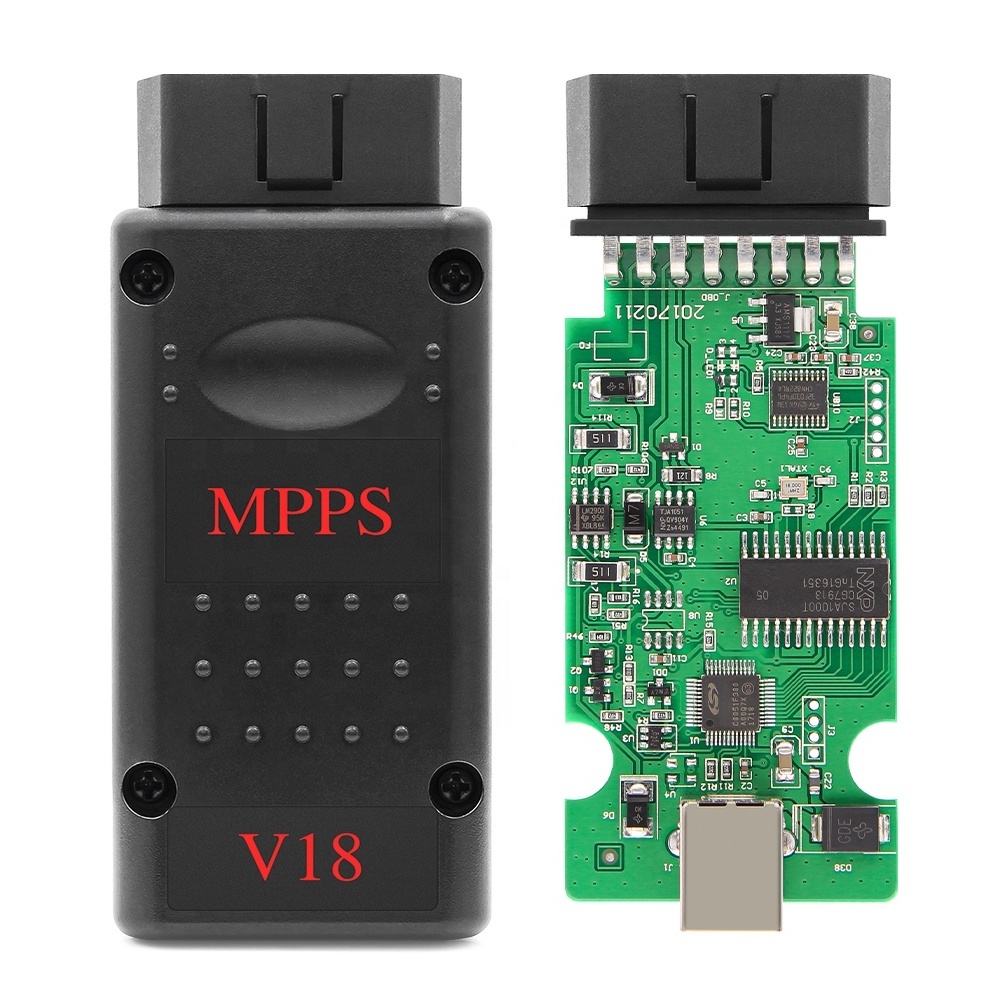

Latest MPPS V18 Auto ECU Chip Tuning Interface MAIN + TRICORE + MULTIBOOT with Breakout Tricore Cable
This module adds support for advanced functions on Marelli ECU’s. MPPS covers a range of controllers including M3.8, M5.9, ME7xx, MED9, MED17, EDC15/16/17, for Dephi, for Si-emens, for Marelli, for Delco, for Sagem, for Trionic and many others…
Specification
|
Products Name
|
MPPS V18 Auto ECU Chip Tuning Interface
|
|
Feature
|
Breakout Tricore cable
|
|
Software Version
|
V18
|
|
Weight
|
0.25kg
|
|
Package
|
Poly bag
|
Support Multi-languages:
Afrikaans, Albanees, Bahasa Melayu, Czech, Cymraeg, Dansk, Deutsch, Esti, English, Espanol, Filipino, Finnish, Galician, French, German, Indonesian, Italian, Hrvatski, kiswahili, Latviesu, lietuviskai, Magyar, Malti, Nederlands, Norsk, Polish, Portuguese, Romanian, slovencina, slovenski, Srpski, Suomea, Swedish, Turkish
MPPS V18 Features:
Read / Write of Micro, Flash and EEprom without using a BDM programmer!
For Fiat 6F3 – Full Read / Write Micro, Flash and EEprom over K-line and CAN.
For Fiat 6JF – Full Read / Write Micro and EEprom over K-line.
For Fiat 8DF – Full Read / Write Micro and EEprom over K-line.
For Fiat 8F2 – Full Read / Write Micro and EEprom over K-line and CAN.
For Fiat 8F3 – Full Read / Write Micro and EEprom over K-line and CAN.
For Fiat 8GM – Full Read / Write Micro and EEprom over CAN.
For Fiat 8GS – Full Read / Write Micro and EEprom over CAN.
For Fiat 5SF3 – Full Read / Write Flash and EEprom over CAN.
For Fiat 5SF3 – Full Read / Write EEprom over K-Line.
For Fiat 5SF8 – Full Read / Write Flash and EEprom over K-line and CAN.
For Fiat 5SF9 – Full Read / Write Flash and EEprom over CAN.
For Fiat ME7.9.10 – Full Read / Write Micro over CAN.
For Fiat ME7.6.3 – Full Read / Write Micro over CAN.
For Opel 6O2 – Full Read / Write Micro, Flash and EEprom over K-line and CAN.
For Opel 6O3 – Full Read / Write Micro, Flash and EEprom over K-line and CAN.
For Opel 6JO – Full Read / Write Micro and EEprom over K-line.
MPPS V18 A dditional Features:
The MPPS is a powerful programming tool. It offers general reading / writing operations and checksum support, however it also includes some additional features:
Excellent recovery functions. In some cases MPPS can recover ECU’s which others tools can not even make communications with. On certain controllers it even works when with no program is present (a blank memory).
Selectable full / partial reading and writing when the ECU allows this function.
Selectable reading / writing speed.
Writing “changes only” function for faster programming (when supported by the ECU).
Auto detection of K-Line/CAN, and option to bypass and force preferred means of communication.
Temporary bypass of immobiliser to allow flashing on the bench on ME7 systems.
Boot mode support for ECU’s with C167 and ST10 processors.
EEprom read/write functions for some ECU’s are included.
VAG MEDC17 TPROT level checking without opening the ECU.
Packing & Delivery
Package Includes:
1pc x MPPS V18 1pc x Breakout Tricore cable 1pc x CD Software
1pc x MPPS V18 1pc x Breakout Tricore cable 1pc x CD Software
