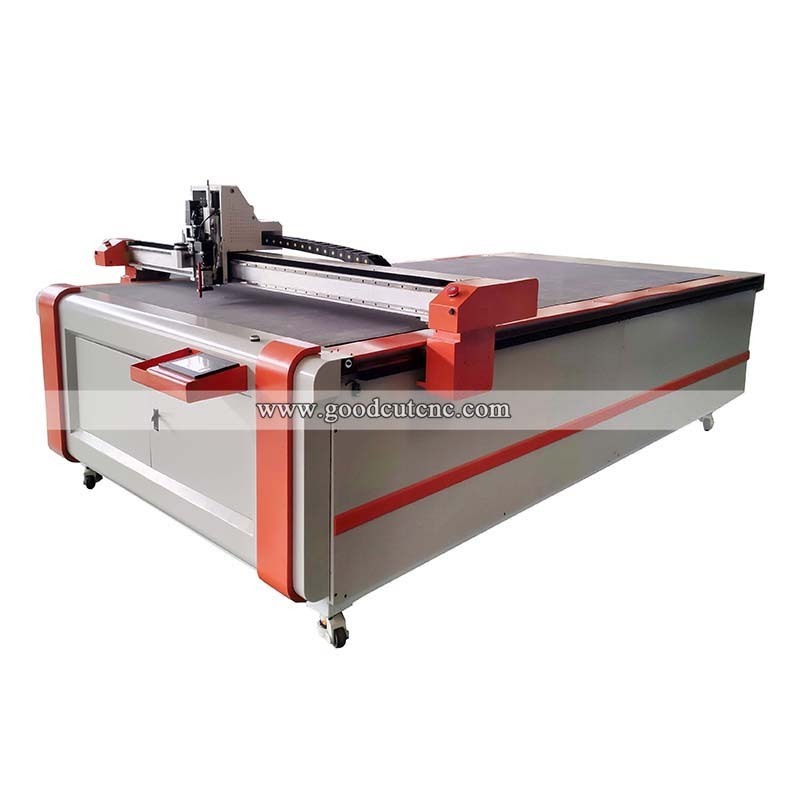

Automatic Cnc Oscillating Knife Cutter for Textile Gasket Cloth with Round Knife 1625 Size

Automatic Cnc Oscillating Knife Cutter for Textile Gasket Cloth with Round Knife 1625 Size

FOB Reference Price: Get Latest Price

≥1 Sets

US $8000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 1600*2500mm

Weight:: 1500 KG

Product name:: Oscillating Knife Cutter for Textile Gasket Cloth

Application:: cutting cloth carton

Table:: Vacuum adsorption

Color:: White

Function:: V-cut

Working area:: 1600*2500

Control system:: Trocen control system

Option:: auto feeding

Cutting Tool:: Punching Tool

Cutting thickness:: 0-50mm

Quick Details

Voltage:: 380V

Place of Origin:: Shandong, China

Brand Name:: GoodCut

Dimension(L*W*H):: 1600*2500mm

Weight:: 1500 KG

Product name:: Oscillating Knife Cutter for Textile Gasket Cloth

Application:: cutting cloth carton

Table:: Vacuum adsorption

Color:: White

Function:: V-cut

Working area:: 1600*2500

Control system:: Trocen control system

Option:: auto feeding

Cutting Tool:: Punching Tool

Cutting thickness:: 0-50mm

Automatic Cnc Oscillating Knife Cutter for Textile Gasket Cloth with Round Knife 1625 Size

Product Description

Feature:

1. Cutting by knife not laser, no air pollution , no burntedge, cutting speed is 5-8 times faster than co2 laser machine.

2.Imported PMI square linear guide and servo motor ensure high precison and fast cutting speed.

3.High performance is guaranteed with the integrated circuit plate.

4.The application of an USB/Ethernet port makes the cutting plotters fast and convenient

5.Easy opeate.This cutting machine was designed easy to install, set-up and operate.

6.Special safety sensory device meets the European standard.

7.The platform detection device regulates the knife pressure automatically,enabling a level platform and perfect cutting

Model	GC-1625O
Max. Cutting size	1600*2500mm
Power	11kw
Multifunction Tool Head	Oscillating straight knife/Round knife/pneumatic knife/identification roller/ marker pen holder/puching hole device/V-groove cut tool/CCD camera/tangential knief/ drilling tool/projector/etc.
Security Device	High sensitive infrared induction
Cutting speed	Max. 1200mm/s (can be set up according to different materials)
Movement speed	Maximum 1500mm/s
Cutting material	Corrugated paper, PVC expansion sheet, kt sheet, thick foam, gray board, paperboard, car sticker, adhesive Sticker, etc.
Cutting thickness	Maximum 20mm (set according to different materials and tools)
Material fixing method	High power vacuum absorption with felt
Repeated positioning accuracy	±0.05mm
Mechanical Precision	Maximum 0.05mm
Drive system	Taiwan Delta servo motor, Taiwan PMI linear guide rails
Control system	Chinese Brand RD control system
Data transmission method	USB port or Ethernet
Suport file	DXF,PLT,AI,SVG,PDF,NC,DST,DSB, etc.
Operation environment	Temperature 0-40℃, Humidity 20%-80%RH
Voltage	380V/220V/50Hz/60Hz

Advantage:

1. The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting.

2. The high precision GoodCut cnc oscillating knife leather cutting machine can induce draft separately and easily cuts small pieces.

3. The anti-collision and the built-in auto-sensing devices ensure the security of GoodCut cnc oscillating knife leather cutting machine.

4. High efficiency can be realized without making a high-cost knife model.

5. The high precision GoodCut cnc oscillating knife leather cutting machine is designed for production with small quantities and can save on costs while maintaining speed and accuracy

Detail Images:

Motor and driver

Application:

It can cut on fabric, leather, cardboard, plastic, paper, rubber, EVA foam, and it can cut many types of foam, such as closed cell foam, rubber foam, foam, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc. It''s widely used for packaging protection, advertising display, terminal insulation, model & mock up making, puzzle and pattern cutting, etc.

1)Sofa, seat, car seat cover, car floor mat, car carpet, luggage, handbag and other industries.
2)It is applicable to shoe industry, clothing industry, composite material industry, luggage industry, automobile industry
3)Advertising and printing industry, electronic industry, decoration industry, furniture industry, etc.
