Quick Details
-
Voltage:
-
380V
-
Power:
-
6KW
-
Dimension(L*W*H):
-
3500*1500*2000MM
-
Weight:
-
3520 kg
-
Keyword:
-
Facial Tissue Paper Fold Making Machine
-
Packing speed:
-
≤120 boxes/minute
-
Power supply type:
-
Three phase four wire 380V 50Hz
-
Air supply:
-
0.5-0.8 Mpa
-
Air consumption:
-
160-200L/min
-
Hot melt machine power:
-
4KW
-
Motor power:
-
4.87KW
-
Total power:
-
8.87KW
-
Machine noise:
-
≤80dB
-
Machine weight:
-
2150Kg
Quick Details
-
Production Capacity:
-
150 BAGS/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ONEPAPER
-
Voltage:
-
380V
-
Power:
-
6KW
-
Dimension(L*W*H):
-
3500*1500*2000MM
-
Weight:
-
3520 kg
-
Keyword:
-
Facial Tissue Paper Fold Making Machine
-
Packing speed:
-
≤120 boxes/minute
-
Power supply type:
-
Three phase four wire 380V 50Hz
-
Air supply:
-
0.5-0.8 Mpa
-
Air consumption:
-
160-200L/min
-
Hot melt machine power:
-
4KW
-
Motor power:
-
4.87KW
-
Total power:
-
8.87KW
-
Machine noise:
-
≤80dB
-
Machine weight:
-
2150Kg
Tissue paper Converting Machinery Three Line Facial Tissue Paper Fold Making Machine
Facial Tissue Making Machine High Speed Automatic Facial Tissue Napkin Folding Machine
Product Description
|
Product name
|
|
Facial tissue folding machine
|
|
|
Item/model
|
|
F1 SERIES
|
|
|
Folding form
|
|
V-fold
|
|
|
Standing roll
|
|
2 standards can be added according to customer requirements
|
|
|
Max diameter of jumbo roll
|
|
1500mm
|
|
|
Inner diameter of jumbo roll
|
|
Around 3 inches
|
|
|
Jumbo roll basis weight
|
|
12-16g/m²(2 layers),18-22g/m²(1 layer)wood pulp paper,35-80 square meters of non-woven fabric (1 layer)
|
|
|
Folded size
|
|
Customized within the scope according to customer requirements
|
|
|
Folding speed
|
|
≤120 m/min
|
|
|
Fan power
|
|
18.5KW, This power is the data of 6-line machine)
|
|
|
Total power
|
|
22.5KW, This power is the data of 6-line machine)
|
|
|
Power supply type
|
|
Three-phase four-wire 380V 50Hz
|
|
|
Machine noise
|
|
≤80dB
|
|
|
Air supply
|
|
0.5-0.8MPa
|
|
|
Air consumption
|
|
120-160L/min
|
|

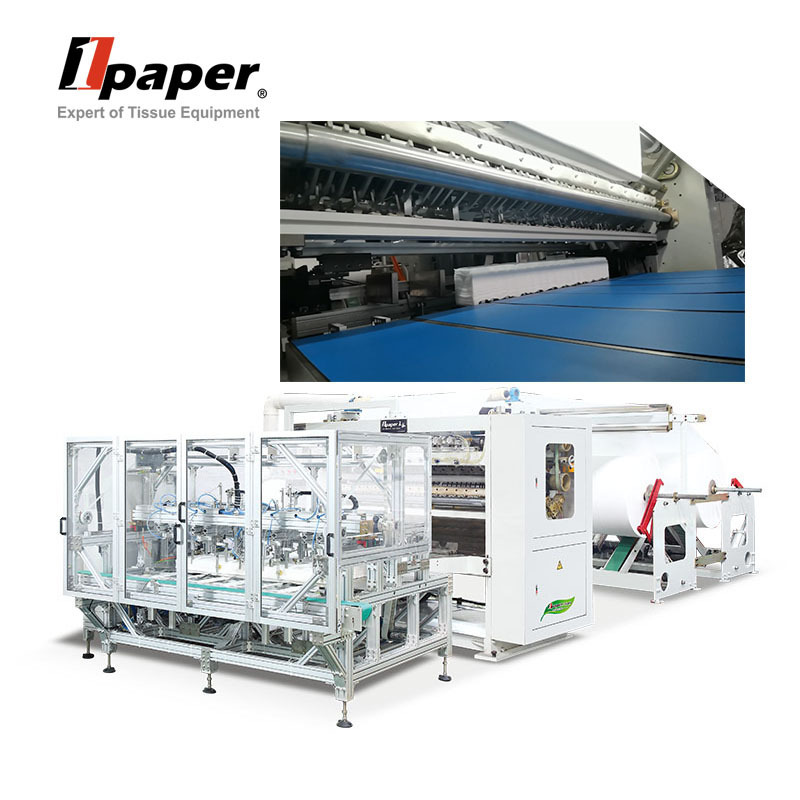

Automatic Facial Tissue Folding Machine
Adopting votage stabilization technology, the fan is equipped with a frequency converter, an the air volume should be automatically adjusted when the folding speed is required, which can save 30% of evergy.
high speed folding facial tissue machine
Using a new type of standing roller, no need to set shafts, pneumatic paper loading, greatly reduce labor intensity and paper change time.
packing v fold facial tissue production line
Adopt a new type of adsorption to effectively improve the adsorption performance and increase the folding speed of materials with poor adsorptivety.
packing v fold facial tissue production line
Fully automatic conveying, compare to the semi aoto folding amchine, it can largely reduce labor costs and be more efficient.
High Speed V Fold Facial Tissue Production Line Automatic Facial Tissue Folding Machine
